🔧 Oxygen Sensor - Replacement

This guide covers replacing an oxygen sensor on your Versa. I’m assuming you mean the upstream or downstream sensor on the 1.6L exhaust system. The exact access point changes based on which sensor you’re replacing, but the removal and install process is very similar.

Difficulty Level: Intermediate | Estimated Time: 1-2 hours

---

⚠️ Safety & Precautions

• The exhaust gets extremely hot. Let the car cool fully before starting.
• Use jack stands if you raise the car. Never rely on a jack alone.
• Disconnect the negative battery cable before unplugging the sensor connector.
• Do not twist the wiring harness when removing the old sensor.
• If the sensor is seized, use penetrating oil and work carefully to avoid damaging the exhaust threads.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Oxygen sensor socket 22mm
• Ratchet 3/8-inch drive
• 3/8-inch extension
• Penetrating oil
• Torque wrench 3/8-inch drive
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• Trim clip tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Upstream oxygen sensor - Qty: 1
• Downstream oxygen sensor - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Let the exhaust cool completely.
• Disconnect the negative battery cable before unplugging the sensor.
• If replacing the upstream sensor, access is usually from above or from under the car depending on clearance.
• If replacing the downstream sensor, raise the front of the car safely and support it with jack stands.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect battery power

• Use a 10mm wrench to disconnect the negative battery cable.
• Set the cable aside so it cannot spring back onto the terminal.
• Keep the wrench away from metal.

Step 2: Raise the vehicle if needed

• If you are replacing the lower sensor, use a floor jack (rated 3-ton minimum) to lift the front of the car.
• Place the car securely on jack stands (rated 3-ton minimum).
• Use wheel chocks at the rear wheels.

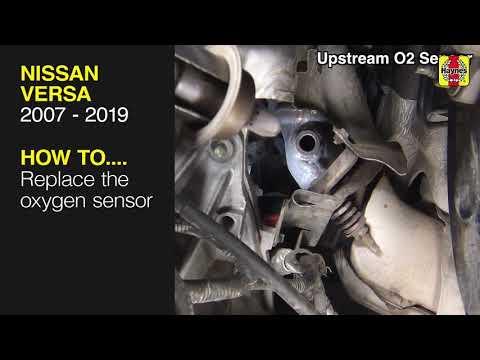

Step 3: Locate the oxygen sensor

• Find the sensor threaded into the exhaust pipe or catalytic converter area.
• Follow the sensor wire to its electrical connector.
• Use a trim clip tool if any wire retainers must be released.

Step 4: Unplug the sensor

• Press the locking tab and unplug the connector by hand.
• Do not pull on the wire itself.
• Pull on the connector, not the wire.

Step 5: Remove the old sensor

• Spray penetrating oil on the sensor threads if it is rusty.
• Use an oxygen sensor socket 22mm with a ratchet 3/8-inch drive and 3/8-inch extension to remove the sensor.
• Turn counterclockwise to loosen.
• If it resists, work it gently back and forth instead of forcing it.

Step 6: Install the new sensor

• Compare the new sensor to the old one to confirm the connector and wire length match.
• Thread the new sensor in by hand first to avoid cross-threading.
• Use the oxygen sensor socket 22mm to tighten it.
• Torque to 44 N·m (33 ft-lbs).

Step 7: Reconnect wiring and battery

• Plug the connector back in until it clicks.
• Secure the harness in its original clips and keep it away from hot exhaust parts.
• Reconnect the negative battery cable with a 10mm wrench.

Step 8: Lower the vehicle and verify repair

• If raised, remove the jack stands and lower the car with the floor jack.
• Start the engine and check for exhaust leaks or warning lights.
• Use a scan tool to clear codes if needed.

---

✅ After Repair

• Start the engine and let it idle for a few minutes.
• Check that the check engine light stays off.
• Inspect the sensor area for exhaust leaks or loose wiring.
• If the code returns, the issue may be wiring, exhaust leaks, or a different sensor circuit fault.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$450 (parts + labor)

DIY Cost: $50-$160 (parts only)

You Save: $130-$290 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1-2 hours.

---
