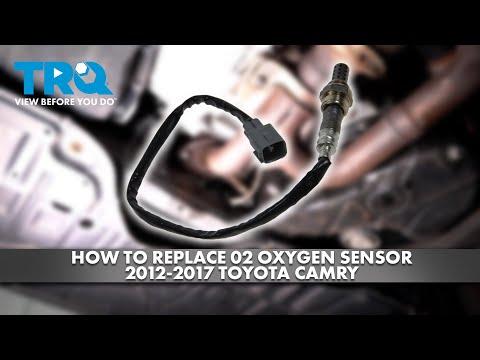

🔧 Oxygen Sensor - Replacement

This procedure covers the oxygen sensors on your Camry’s 2.5L inline-4. On this engine, there is only Bank 1, so the sensor is identified as either Sensor 1 (upstream, before the catalytic converter) or Sensor 2 (downstream, after the catalytic converter).

Difficulty Level: Intermediate | Estimated Time: 1-2 hours

---

⚠️ Safety & Precautions

• Let the exhaust cool completely before touching any sensor. Exhaust parts can cause severe burns.
• Disconnect the negative battery cable if you will be working near wiring connectors for an extended time.
• Use a jack and jack stands on level ground if you need access from underneath.
• Do not twist or pull on the sensor wiring. Always disconnect the connector first.
• Penetrating oil helps on rusty threads.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Oxygen sensor socket 7/8-inch (22mm)
• 3/8-inch drive ratchet
• 3/8-inch drive torque wrench
• Extension bar 6-inch
• Penetrating oil
• Flathead screwdriver
• Needle-nose pliers
• Floor jack (rated 3-ton minimum)
• Jack stands
• Wheel chocks
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Oxygen sensor - Qty: 1

---

📋 Before You Begin

• Park on a level surface and set the parking brake.
• Let the exhaust system cool fully.
• If replacing the upstream sensor, access is usually from above or below depending on tool clearance.
• If replacing the downstream sensor, access is usually from underneath near the catalytic converter area.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and secure the vehicle

• If needed, use the floor jack to lift the front of the vehicle.
• Support it with jack stands before going underneath.
• Chock the rear wheels with wheel chocks.

Step 2: Locate the oxygen sensor

• Find the sensor you are replacing on the exhaust pipe or catalytic converter.
• The upstream sensor is before the catalytic converter. The downstream sensor is after it.
• Follow the sensor wire to its electrical connector.

Step 3: Disconnect the sensor connector

• Use a flathead screwdriver to release any connector lock.
• Use needle-nose pliers if a clip needs to be carefully removed.
• Separate the connector without pulling on the wires.

Step 4: Loosen the sensor

• Spray the sensor threads with penetrating oil if they are rusty.
• Use the oxygen sensor socket 7/8-inch (22mm), 3/8-inch drive ratchet, and extension bar 6-inch to break the sensor loose.
• Short, steady pressure works best.

Step 5: Remove the old sensor

• Unthread the sensor by hand once it is loose.
• Take it out carefully so the wiring does not snag on the exhaust or heat shields.

Step 6: Install the new sensor

• Thread the new sensor in by hand first to avoid cross-threading.
• Use the oxygen sensor socket 7/8-inch (22mm) and 3/8-inch drive torque wrench to tighten it.
• Torque to 44 Nm (32 ft-lbs).
• Reconnect the electrical connector until it clicks into place.

Step 7: Lower the vehicle and verify repair

• Remove the tools and lower the vehicle carefully.
• Start the engine and check for a check engine light or exhaust leak.
• Make sure the sensor wire is routed safely away from heat and moving parts.

---

✅ After Repair

• Clear any stored diagnostic trouble codes with a scan tool if the check engine light is on.
• Road test the vehicle and recheck for leaks or warning lights.
• If the light returns, the issue may be wiring, exhaust leaks, or a different sensor circuit problem.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$550 (parts + labor)

DIY Cost: $60-$180 (parts only)

You Save: $190-$370 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1-2 hours.

---
