🔧 Oxygen Sensor - Replacement

Assumption: this is for the failed oxygen sensor on your F-150, and the steps below cover one sensor at a time. The sensor threads into the exhaust or catalytic converter area and must be removed carefully so the threads in the pipe do not get damaged.

Difficulty Level: Beginner | Estimated Time: 1-2 hours

---

⚠️ Safety & Precautions

• Let the exhaust cool completely before touching the sensor. Hot exhaust can cause serious burns.
• Disconnect the negative battery cable before unplugging or installing the sensor.
• Support the truck securely on jack stands if you need access from underneath.
• Do not pull on the sensor wire. Always unplug the connector first.
• Keep anti-seize off the sensor tip. The new sensor may already have thread coating.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Oxygen sensor socket 7/8-inch (22mm)
• Ratchet
• 3/8-inch breaker bar

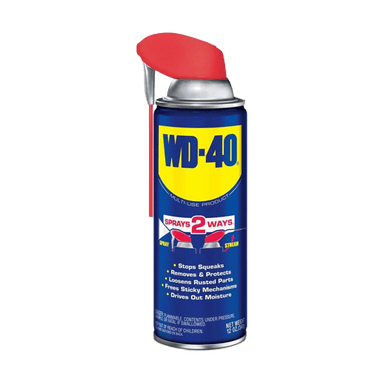

• Penetrating oil
• Torque wrench
• Flat-blade screwdriver
• Needle-nose pliers
• Floor jack (rated 3-ton minimum)
• Jack stands
• Wheel chocks
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Upstream oxygen sensor - Qty: 1
• Downstream oxygen sensor - Qty: 1
• Exhaust sensor thread anti-seize - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Let the exhaust cool fully.
• Disconnect the negative battery cable before starting.
• If the sensor is hard to reach, raise the front of the truck with a floor jack and support it with jack stands.
• Use a scan tool to confirm which sensor is faulty if the check engine light has multiple oxygen sensor codes.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect power

• Use a 10mm wrench to remove the negative battery cable.
• Set the cable aside so it cannot spring back onto the terminal.

Step 2: Find the sensor

• Locate the failed oxygen sensor on the exhaust pipe or catalytic converter.
• Follow the sensor wire to the connector and inspect the routing.
• Take a quick photo before unplugging.

Step 3: Unplug the sensor

• Use a flat-blade screwdriver if needed to release the connector lock.
• Use needle-nose pliers only if the connector clip is tight.
• Separate the connector carefully and free the harness from any clips.

Step 4: Loosen the old sensor

• Spray penetrating oil on the sensor threads and let it soak for a few minutes.
• Use the oxygen sensor socket 7/8-inch (22mm) with a ratchet or 3/8-inch breaker bar to break the sensor loose.
• If it resists, apply more penetrating oil and work it slowly back and forth.
• Do not force it in one direction.

Step 5: Remove the sensor

• Spin the sensor out by hand once it is loose.
• Pull the sensor and wire out of the vehicle.
• Inspect the bung threads in the exhaust for damage or heavy rust.

Step 6: Install the new sensor

• Compare the new sensor to the old one to confirm the connector and wire length match.
• Thread the new sensor in by hand first to avoid cross-threading.
• Use the oxygen sensor socket 7/8-inch (22mm) and ratchet to snug it down.
• Torque to 35 Nm (26 ft-lbs).

Step 7: Reconnect the harness

• Route the wire the same way as the original so it cannot touch the exhaust.
• Reconnect the electrical connector until it clicks.
• Make sure the wire is secured in all clips and away from heat.

Step 8: Restore power and verify

• Reconnect the negative battery cable with a 10mm wrench.
• Clear the fault code with a scan tool if needed.
• Double-check the harness routing.

---

✅ After Repair

• Start the engine and let it idle.
• Check for exhaust leaks near the sensor.
• Verify the check engine light stays off.
• Use a scan tool to confirm the oxygen sensor data changes normally.
• If the code returns, inspect the wiring and connector again.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$400 (parts + labor)

DIY Cost: $45-$140 (parts only)

You Save: $135-$260 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1-2 hours.

---
