🔧 Corolla - Oxygen Sensor Replacement

Assumption: This guide covers both the upstream air-fuel ratio sensor and the downstream oxygen sensor on your Corolla. The exact sensor location changes the access and socket size a bit, but the basic replacement process is the same.

Replacing a faulty sensor can restore fuel economy, fix check engine lights, and improve idle quality. The job is usually straightforward, but rust and tight exhaust access can make it harder than it looks.

Difficulty Level: Intermediate | Estimated Time: 1-2 hours

---

⚠️ Safety & Precautions

• Let the exhaust cool completely before starting. The exhaust manifold and pipe can burn you badly.
• Disconnect the negative battery cable before unplugging the sensor connector.
• Support the car securely with jack stands if you need access from underneath. Never rely on a jack alone.
• If your Corolla uses an upstream air-fuel ratio sensor, do not use silicone grease or anti-seize on the sensor tip.
• A ratchet-style O2 sensor socket can slip if the sensor is heavily rusted, so keep your hands clear while breaking it loose.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Oxygen sensor socket 7/8 in. or 22mm (specialty)
• 3/8-inch ratchet
• 3/8-inch breaker bar
• 10mm socket
• Socket extension set
• Torque wrench
• Floor jack (rated 3-ton minimum)
• Jack stands
• Wheel chocks
• Safety glasses
• Mechanic gloves
• Penetrating oil

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Upstream air-fuel ratio sensor - Qty: 1
• Downstream oxygen sensor - Qty: 1
• Exhaust sensor anti-seize - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Let the engine and exhaust cool fully.
• Disconnect the negative battery cable before unplugging the sensor connector.
• Use a scanner to confirm which sensor is bad if the check engine light is on. The fix depends on the code.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect battery power

• Use a 10mm socket to remove the negative battery cable.
• Move the cable aside so it cannot touch the battery terminal.

Step 2: Locate the sensor

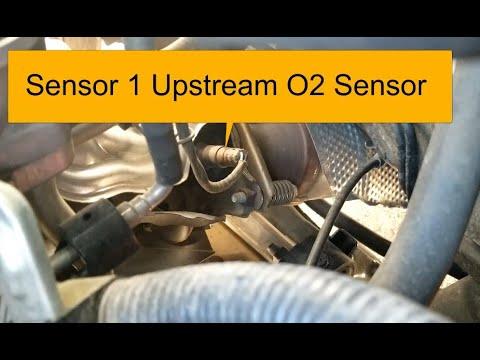

• Find the sensor on the exhaust. The upstream sensor is near the exhaust manifold. The downstream sensor is farther back on the exhaust pipe.
• Follow the wiring harness to the electrical connector.
• Take a photo before unplugging it.

Step 3: Unplug the connector

• Press the lock tab and unplug the sensor connector by hand.
• If the connector is clipped to a bracket, release it carefully without breaking the clip.

Step 4: Loosen the sensor

• Spray penetrating oil on the sensor threads if it is rusty.
• Use the oxygen sensor socket 7/8 in. or 22mm (specialty) with a 3/8-inch breaker bar to loosen the sensor.
• Turn counterclockwise to remove it.
• Work it slowly to avoid stripping threads.

Step 5: Install the new sensor

• Compare the new sensor to the old one to confirm the connector and wire length match.
• Thread the new sensor in by hand first to prevent cross-threading.
• Use the oxygen sensor socket 7/8 in. or 22mm (specialty) to snug it down.
• Torque to 35 Nm (26 ft-lbs) unless the replacement sensor instructions specify a different value.
• If the new sensor does not come with anti-seize pre-applied, apply a tiny amount only to the threads, not the tip or slots.

Step 6: Reconnect wiring

• Reconnect the sensor plug until it clicks.
• Make sure the harness is clipped away from the exhaust and steering parts.

Step 7: Reassemble and reconnect battery

• Lower the car if it was raised.
• Reconnect the negative battery cable using a 10mm socket.
• Torque to 5 Nm (44 in-lbs) if you are using a torque wrench on the battery terminal clamp bolt.

---

✅ After Repair

• Start the engine and check for exhaust leaks near the sensor.
• Verify the check engine light is off after a short drive or after clearing codes with a scanner.
• If the light returns, recheck connector seating and confirm the correct sensor was replaced.
• Drive normally for a few trips so the ECU can relearn fuel trims.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$450 (parts + labor)

DIY Cost: $45-$180 (parts only)

You Save: $135-$270 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.8-1.5 hours.

---
