🔧 Escape - Oxygen Sensor Replacement

Your Escape uses heated oxygen sensors in the exhaust system to help the engine computer control fuel mixture and monitor catalytic converter efficiency. Replacing the correct sensor can fix oxygen-sensor fault codes, poor fuel economy, rough running, or emissions-test failure.

Difficulty Level: Intermediate | Estimated Time: 1-2 hours

Assumption: This guide covers replacing either the upstream oxygen sensor or downstream oxygen sensor on your Escape; the steps clearly separate both locations.

---

⚠️ Safety & Precautions

• ⚠️ Let the exhaust cool completely before touching it. Oxygen sensors thread into the exhaust and can stay extremely hot.
• ⚠️ Support the vehicle with jack stands before going underneath. Never rely on a floor jack alone.
• ⚠️ Disconnect the negative battery cable before unplugging sensor wiring.
• ⚠️ Do not twist the new sensor wiring during installation. Twisted wiring can damage the sensor internally.
• ⚠️ Use sensor-safe anti-seize only if the new sensor does not already have it on the threads.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 7/8-inch oxygen sensor socket
• 3/8-inch drive ratchet
• 3/8-inch drive 6-inch extension
• 10mm socket
• Torque wrench 10-80 Nm
• Floor jack rated 2-ton minimum
• Jack stands rated 2-ton minimum
• Wheel chocks
• Trim clip removal tool
• Penetrating oil
• Needle-nose pliers
• Nitrile gloves
• Safety glasses

An oxygen sensor socket is a slotted socket that fits over the sensor wire while gripping the sensor hex.

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Upstream oxygen sensor - Qty: 1
• Downstream oxygen sensor - Qty: 1
• Sensor-safe anti-seize compound - Qty: 1 small packet
• Exhaust heat shield clips - Qty: as needed

Note: Replace only the failed sensor unless both sensors are old or trouble codes point to both. The upstream sensor is before the catalytic converter; the downstream sensor is after the catalytic converter.

---

📋 Before You Begin

• Park your Escape on a level surface, shift to Park, and set the parking brake.
• Place wheel chocks behind the rear wheels before lifting the front.
• Let the engine and exhaust cool for at least 1 hour.
• Disconnect the negative battery cable using a 10mm socket.
• If a scan tool showed a code, match the sensor before replacing it: Bank 1 Sensor 1 is upstream; Bank 1 Sensor 2 is downstream.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and Secure the Front

• Use a floor jack rated 2-ton minimum at the front jacking point to lift your Escape high enough to work safely.
• Place jack stands rated 2-ton minimum under the proper front support points.
• Gently lower the vehicle onto the jack stands and shake the vehicle lightly to confirm it is stable.
• Wear safety glasses before working underneath.

Step 2: Locate the Correct Oxygen Sensor

• Use a work light if available, and look at the exhaust pipe near the engine.
• The upstream oxygen sensor threads into the exhaust before the catalytic converter, closer to the engine/turbo area.
• The downstream oxygen sensor threads into the exhaust after the catalytic converter, farther back under the vehicle.
• Match location to the trouble code.

Step 3: Remove Any Shield or Cover Blocking Access

• If an underbody shield or small heat shield blocks your hand access, remove its fasteners using a 10mm socket or trim clip removal tool.
• Set the fasteners aside in order so they go back in the same locations.
• Do not bend exhaust heat shields more than needed.

Step 4: Spray the Sensor Threads

• Spray penetrating oil where the oxygen sensor threads into the exhaust bung.
• An exhaust bung is the welded threaded fitting that holds the oxygen sensor.
• Wait 10-15 minutes to let the oil work.
• More soak time helps rusty sensors.

Step 5: Disconnect the Sensor Electrical Connector

• Follow the oxygen sensor wire from the sensor body to its connector.
• Press the connector lock tab by hand and unplug it.
• If the lock tab is stubborn, use needle-nose pliers gently on the connector body, not on the wires.
• Remove the wire from any retaining clips by hand or with needle-nose pliers.

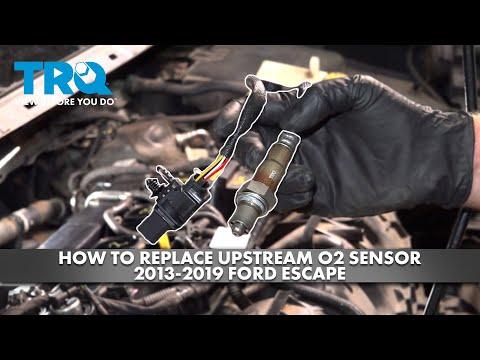

Step 6: Remove the Old Oxygen Sensor

• Slide the 7/8-inch oxygen sensor socket over the sensor wire and onto the sensor hex.
• Attach a 3/8-inch drive ratchet and 3/8-inch drive 6-inch extension if needed.
• Turn counterclockwise to loosen and remove the old sensor.
• If it will not move, apply more penetrating oil and wait another 10 minutes.
• Do not round the sensor hex.

Step 7: Prepare the New Sensor

• Compare the new sensor to the old one: connector shape, wire length, and thread size should match.
• If the new sensor threads are dry, apply a tiny amount of sensor-safe anti-seize compound to the threads only.
• Keep anti-seize away from the sensor tip. The sensor tip is the part that sits inside the exhaust stream.
• If the new sensor already has gray coating on the threads, do not add more anti-seize.

Step 8: Install the New Oxygen Sensor

• Thread the new sensor into the exhaust by hand first to avoid cross-threading.
• Use the 7/8-inch oxygen sensor socket and torque wrench 10-80 Nm to tighten it.
• Torque to 40 Nm (30 ft-lbs).
• Do not let the wire twist while tightening. Turn the sensor body, not the wiring.

Step 9: Reconnect the Sensor Wiring

• Route the sensor wire exactly like the original path.
• Use your hands or needle-nose pliers to reinstall the wiring into the retaining clips.
• Plug the connector in until it clicks.
• Keep the wire away from the exhaust pipe, driveshaft area, and sharp heat-shield edges.

Step 10: Reinstall Covers and Lower the Vehicle

• Reinstall any heat shield or underbody shield using a 10mm socket or trim clip removal tool.
• Raise the vehicle slightly with the floor jack rated 2-ton minimum.
• Remove the jack stands rated 2-ton minimum.
• Lower your Escape slowly to the ground.

Step 11: Reconnect the Battery

• Reconnect the negative battery cable using a 10mm socket.
• Tighten the terminal snugly; do not overtighten.
• If your radio or clock resets, restore those settings after the repair.

---

✅ After Repair

• Start your Escape and let it idle for 2-3 minutes.
• Listen for exhaust leaks near the new sensor. A leak may sound like a sharp ticking noise.
• Check that the Check Engine Light turns off after the fault is cleared and the drive cycle completes.
• If you have a scan tool, clear stored oxygen sensor codes after installation.
• Drive normally for 15-20 minutes so the engine computer can relearn sensor readings.
• If the same code returns, inspect wiring, exhaust leaks, and fuel-trim data before replacing more parts.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$500 per sensor (parts + labor)

DIY Cost: $60-$180 per sensor (parts only)

You Save: $150-$320 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.7-1.2 hours.

---
