🔧 Envision - Oxygen Sensor Replacement

Oxygen (O2) sensors measure oxygen in the exhaust so your A4—(correction) your Envision—can adjust fuel mixture and keep the check engine light off. On your Envision there’s typically an upstream (Sensor 1) sensor before the catalytic converter and a downstream (Sensor 2) sensor after it.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

Assumption: You want either upstream (Sensor 1) or downstream (Sensor 2); steps below cover both.

---

⚠️ Safety & Precautions

• ⚠️ Exhaust parts get extremely hot—work on a fully cool engine and exhaust.
• ⚠️ Support the Envision with jack stands—never rely on a floor jack alone.
• ⚠️ Keep wires off the exhaust—melted sensor wiring can cause more faults.
• ⚠️ If you disconnect the battery, you may lose radio presets.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 3/8" drive ratchet
• 3/8" drive extension set
• Oxygen sensor socket 22mm (specialty)
• Torque wrench (3/8" drive)
• Trim clip removal tool
• Flathead screwdriver
• 10mm socket
• Penetrating oil
• Scan tool code reader (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Upstream oxygen sensor (Bank 1 Sensor 1) - Qty: 1
• Downstream oxygen sensor (Bank 1 Sensor 2) - Qty: 1
• Anti-seize compound (sensor-safe) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Let the exhaust cool completely (at least 1 hour after driving).
• Decide which sensor you’re replacing:
  • Upstream / Sensor 1 = before the catalytic converter (closer to the engine/turbo). This one mainly controls fuel mixture.
  • Downstream / Sensor 2 = after the catalytic converter (under the vehicle). This one mainly monitors catalytic converter efficiency.
  • “Bank 1” means the only engine bank on an inline-4.
• If desired, disconnect the negative battery cable using a 10mm socket.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and safely support the Envision (needed for Sensor 2)

• Place wheel chocks, then lift with a floor jack (rated 3-ton minimum).
• Set the Envision onto jack stands (rated 3-ton minimum) at the proper lift points.
• Give the vehicle a firm shake to confirm it’s stable before going underneath.

Step 2: Locate the oxygen sensor and unplug the connector

• Find the sensor by following its wire to an electrical connector clipped to a bracket.
• Use a flathead screwdriver or trim clip removal tool to release any harness clips holding the wire.
• Press the connector lock tab by hand (or gently with a flathead screwdriver) and unplug it.
• Unplug first to prevent wire twisting.

Step 3: Loosen the old sensor

• Spray the sensor threads area with penetrating oil and wait 5–10 minutes.
• Install a 22mm oxygen sensor socket (specialty) over the sensor hex.
• Use a 3/8" drive ratchet and 3/8" drive extension as needed to break it loose counterclockwise.
• If it’s stubborn, use steady pressure (don’t yank) to avoid rounding the hex.

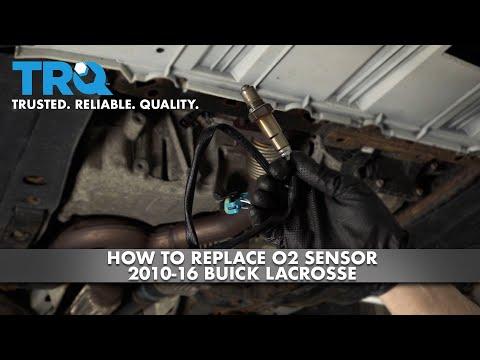

Step 4: Remove the sensor and prepare the new one

• Spin the old sensor out by hand once it’s loose, then remove it.
• Compare the new sensor to the old one (same connector shape and wire length).
• If the new sensor does not come with pre-applied coating on the threads, apply a light film of sensor-safe anti-seize compound to the threads only.
• Keep anti-seize off the sensor tip.

Step 5: Install and torque the new sensor

• Thread the new sensor in by hand first to avoid cross-threading.
• Use the 22mm oxygen sensor socket, 3/8" drive ratchet, then tighten with a torque wrench (3/8" drive).
• Torque to 40 Nm (30 ft-lbs).

Step 6: Route the wiring correctly and reconnect

• Plug the connector back in until it clicks.
• Reattach all harness clips using a trim clip removal tool (or by hand).
• Make sure the wire is not touching any exhaust parts and is routed like the original.

Step 7: Reinstall any covers and lower the vehicle (if raised)

• If you removed any underbody panels, reinstall fasteners using a 10mm socket (and a flathead screwdriver for push-clips if equipped).
• Lift slightly with the floor jack, remove jack stands, and lower the vehicle.

---

✅ After Repair

• If you disconnected the battery, reconnect it using a 10mm socket.
• Use a scan tool code reader (specialty) to clear stored trouble codes.
• Start the engine and listen for exhaust leaks (a “ticking” near the sensor area can indicate a sealing issue).
• Test drive 10–15 minutes, then re-check for warning lights.
• If the check engine light returns, re-check the connector seating and wiring routing first.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor) per sensor

DIY Cost: $60-$180 (parts only) per sensor

You Save: $170-$330 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-2.0 hours.

---
