🔧 Sportage - Oxygen (O2) Sensor Replacement

Your Sportage uses oxygen sensors to measure exhaust oxygen so the engine computer can control fuel mixture and monitor catalytic converter efficiency. Replacing a failed sensor is usually straightforward, but access and lifting the vehicle depend on whether you’re doing the upstream (front) or downstream (rear) sensor.

Difficulty Level: Intermediate | Estimated Time: 0.5-1.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Let the exhaust cool fully before touching sensors; burns happen fast.
• ⚠️ Support the SUV with jack stands before going underneath; never rely on a jack alone.
• ⚠️ Keep the sensor wiring away from the exhaust during install to prevent melting.
• ⚠️ Battery disconnect is recommended: remove negative terminal to avoid accidental shorts.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 10mm socket
• 3/8" drive ratchet
• 3/8" drive extension set
• 22mm oxygen sensor socket (specialty)
• Torque wrench (10-80 ft-lbs range)
• Trim clip removal tool
• Flat blade screwdriver
• Penetrating oil
• Wire brush
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Upstream oxygen sensor (Sensor 1) - Qty: 1
• Downstream oxygen sensor (Sensor 2) - Qty: 1
• High-temp anti-seize compound - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks at the rear wheels.
• Let the engine/exhaust cool for at least 30-60 minutes.
• Disconnect the battery negative cable: use a 10mm socket to loosen the clamp and move it aside so it can’t spring back.
• Identify which sensor you’re replacing:

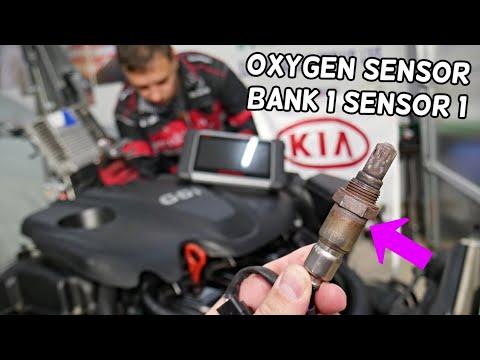

  • Upstream (Sensor 1): before the catalytic converter, typically higher up near the exhaust manifold area.
  • Downstream (Sensor 2): after the catalytic converter, typically accessed from under the SUV.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Locate the sensor and connector

• Use a flashlight to find the O2 sensor body (hex-shaped base) and follow its wire to the electrical connector.
• If you’re doing the downstream sensor, raise the front safely:
  • Lift with a floor jack (rated 3-ton minimum) at the front jacking point.
  • Set the SUV onto jack stands (rated 3-ton minimum) before going underneath.
• O2 sensor socket = slotted socket for the wire.

Step 2: Unplug the electrical connector

• Release any harness clips using a trim clip removal tool or flat blade screwdriver.
• Press the connector lock tab and separate the connector by hand (do not pull on the wires).
• If it’s stuck, use a flat blade screwdriver gently to help the tab—don’t break it.

Step 3: Loosen the oxygen sensor

• Spray the sensor threads area with penetrating oil and wait 5-10 minutes.
• Fit the 22mm oxygen sensor socket (specialty) over the sensor, then attach a 3/8" drive ratchet and the needed 3/8" drive extension.
• Turn counterclockwise to break it loose.
• If the sensor won’t budge, reapply penetrating oil and try again after a few minutes.

Step 4: Remove the old sensor and prep the threads

• Finish unthreading the sensor with the 22mm oxygen sensor socket (specialty) and remove it.
• Lightly clean the bung (threaded hole) with a wire brush (do not drop debris into the exhaust).

Step 5: Install the new sensor

• Compare the new sensor to the old one (connector shape, wire length).
• If the new sensor threads are not pre-coated, apply a small amount of high-temp anti-seize compound to the sensor threads only (keep it off the sensor tip).
• Start threading by hand to avoid cross-threading (cross-threading means the threads get damaged and won’t tighten correctly).
• Tighten with the 22mm oxygen sensor socket (specialty) and then use a torque wrench (10-80 ft-lbs range): Torque to 40 Nm (30 ft-lbs).
• Hand-thread first—this prevents expensive damage.

Step 6: Reconnect wiring and secure the harness

• Apply a tiny amount of dielectric grease to the connector seal (not the metal terminals) to help keep moisture out.
• Reconnect the connector until it clicks.
• Reinstall any harness clips using the trim clip removal tool or by hand, ensuring the wire is routed away from the exhaust.

Step 7: Reassemble and lower the vehicle (if raised)

• If you lifted the SUV, raise slightly with the floor jack (rated 3-ton minimum), remove the jack stands (rated 3-ton minimum), then lower it carefully.
• Reconnect the battery negative cable using the 10mm socket (snug fit; don’t over-tighten).

---

✅ After Repair

• Start the engine and listen for exhaust leaks near the sensor area (hissing/ticking).
• If you had a check engine light, clear codes with a scan tool if available (some lights clear after a few drive cycles).
• Test drive 10-15 minutes and recheck that the wiring is not touching hot exhaust parts.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$550 (parts + labor)

DIY Cost: $60-$180 (parts only)

You Save: $190-$370 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.5 hours.

---
