🔧 550i - Oxygen Sensor Replacement

Your 550i uses oxygen (O2) sensors in the exhaust to help the engine computer adjust fuel mixture and monitor catalytic converter performance. Replacing a failed sensor can fix a check engine light, poor fuel economy, and rough running—if the sensor is the root cause.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Let the exhaust cool fully; sensors sit in very hot pipes.
• ⚠️ Support the car with jack stands; never rely on a jack alone.
• ⚠️ Wear safety glasses; rust/dirt falls when working under the car.
• ⚠️ If you disconnect the battery, keep the trunk open or latch bypassed so you don’t lock yourself out.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• 22mm oxygen sensor socket
• 3/8" drive ratchet
• 3/8" drive breaker bar
• 3/8" drive extension set
• Torque wrench (10-100 Nm range)
• 8mm socket
• E10 external Torx socket
• Trim clip removal tool
• Pick tool
• Penetrating oil
• OBD2 scan tool with BMW capability (specialty)
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Oxygen sensor - Qty: 1
• Anti-seize compound - Qty: 1
• Replacement undertray fasteners/clips - Qty: 1 set

---

📋 Before You Begin

• Park on level ground, apply parking brake, and place wheel chocks at the rear wheels.
• Decide which sensor you’re replacing: upstream (pre-catalyst) monitors fuel mixture; downstream (post-catalyst) monitors catalyst efficiency.
• Use an OBD2 scan tool with BMW capability (specialty) to read codes and identify the exact sensor (example format: Bank 1 Sensor 1).
• Assumption: This covers the common underbody-access O2 sensors (pre/post-cat) on your 550i’s exhaust.
• If you want maximum safety from accidental shorts while unplugging harnesses, disconnect the battery negative terminal in the trunk using a 10mm socket (if equipped); otherwise you can typically leave it connected.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and support the car

• Use a floor jack (rated 3-ton minimum) to lift the front of the car at the approved center jack point.
• Set the car securely on jack stands (rated 3-ton minimum) at the left and right front support points.
• Shake the car gently to confirm it’s stable before going underneath.

Step 2: Remove the lower undertray/splash shield

• Use an 8mm socket to remove the small screws/bolts holding the undertray.
• Use a trim clip removal tool to pop any plastic clips without breaking them.
• Lower the panel and set it aside with the hardware.

Step 3: Locate the correct oxygen sensor

• Follow the exhaust pipes: the sensor is a small probe threaded into the pipe with a wire harness coming off it.
• Upstream (Sensor 1) is typically closer to the engine/turbos; Downstream (Sensor 2) is after the catalytic converter.
• Use a work light to identify the sensor body and the harness routing.

Step 4: Unplug the oxygen sensor connector

• Find the sensor’s electrical connector clipped to a bracket or body mount.
• Use a pick tool to lift the lock tab (a small safety catch that prevents unplugging).
• Disconnect the plug by hand—do not pull on the wires.
• Use an E10 external Torx socket to remove any small bracket bolts if a bracket blocks access.

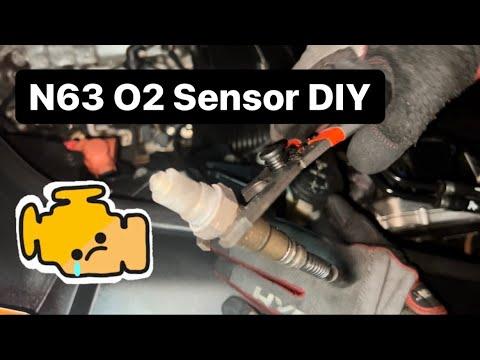

Step 5: Loosen and remove the oxygen sensor

• Spray the sensor threads area with penetrating oil and wait 5–10 minutes.
• Slide the 22mm oxygen sensor socket over the sensor wires and onto the hex.
• Use a 3/8" drive breaker bar and a 3/8" drive extension set as needed, then turn counterclockwise to loosen.
• Once it breaks free, switch to a 3/8" drive ratchet and unthread it the rest of the way.
• Tip: Re-check it’s fully cool before forcing it.

Step 6: Install the new oxygen sensor

• Compare old vs new sensor (connector style, wire length, and tip shape) before installing.
• If the new sensor threads are not pre-coated, apply a tiny amount of anti-seize compound to the threads only (keep it off the sensor tip).
• Thread the sensor in by hand first to avoid cross-threading.
• Tighten using the 22mm oxygen sensor socket and a torque wrench (10-100 Nm range).
• Torque to 50 Nm (37 ft-lbs)

Step 7: Route the harness and reconnect the connector

• Route the wiring exactly like the original, away from the exhaust and moving parts.
• Reinstall any brackets using an E10 external Torx socket.
• Reconnect the plug until it clicks and re-engage the lock tab.

Step 8: Reinstall the undertray and lower the car

• Reinstall the splash shield using an 8mm socket and replace any broken clips using a trim clip removal tool.
• Lift slightly with the floor jack (rated 3-ton minimum), remove jack stands (rated 3-ton minimum), then lower the car.

---

✅ After Repair

• Use an OBD2 scan tool with BMW capability (specialty) to clear the fault codes.
• Start the engine and listen for exhaust leaks (a sharp ticking near the sensor can indicate a sealing issue).
• Test drive 10–15 minutes and re-scan for returning codes.
• If codes return immediately, inspect the harness routing and connector lock, and verify the correct sensor position (Bank/Sensor).

---

💰 DIY vs Shop Cost

Shop Cost: $350-$900 (parts + labor)

DIY Cost: $90-$350 (parts only)

You Save: $260-$550 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
