🔧 Explorer - Oxygen (O2) Sensor Replacement

Your Explorer uses oxygen sensors in the exhaust to help the engine computer control fuel mixture and monitor catalytic converter efficiency. Replacing a failed sensor can fix a check-engine light, poor fuel economy, or drivability issues—when the sensor is the confirmed problem.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours (one sensor)

Two quick questions so I can point you to the exact sensor:
1) Which code(s) do you have (example: P0135, P0155, P0420)?
2) Are you replacing an upstream (Sensor 1) or downstream (Sensor 2) sensor?

---

⚠️ Safety & Precautions

• ⚠️ Exhaust parts get extremely hot—work only on a fully cool exhaust.
• ⚠️ Support the Explorer with jack stands on solid ground; never rely on a floor jack.
• ⚠️ Keep the O2 sensor wiring away from the exhaust; melted wiring will cause repeat faults.
• ⚠️ If you disconnect the battery, you may lose radio presets.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• 3/8" drive ratchet
• 3/8" drive extension set
• 1/2" drive breaker bar
• 7/8" (22mm) oxygen sensor socket
• 22mm deep socket
• Torque wrench (10–80 ft-lbs range)
• Penetrating oil
• Pick tool
• OBD2 scan tool (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Oxygen (O2) sensor (correct position) - Qty: 1
• Anti-seize compound (sensor-safe) - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to P, and set the parking brake.
• Chock the rear wheels.
• Let the exhaust cool completely (at least 1 hour after driving).
• If you choose to disconnect the battery: use a 10mm socket to remove the negative cable and isolate it so it can’t touch the terminal.
• Identify the sensor you’re replacing:
  • Upstream = Sensor 1 (before the catalytic converter).
  • Downstream = Sensor 2 (after the catalytic converter).
  • Bank 1 is the side of the engine with cylinder #1. If you share your code, I’ll map it for you.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and support the Explorer

• Place wheel chocks at the rear wheels.
• Lift the front with a floor jack (rated 3-ton minimum).
• Set the frame securely on jack stands (rated 3-ton minimum).

Step 2: Locate the correct O2 sensor and connector

• Follow the exhaust pipe to find the sensor screwed into the pipe/catalyst area.
• Trace the sensor wire to its connector clipped to the body or a bracket.
• Use safety glasses and a light if needed. Don’t pull on the wires.

Step 3: Unplug the sensor connector

• Use a pick tool to gently lift the locking tab (if equipped).
• Separate the connector by hand. If it’s stubborn, apply a tiny amount of dielectric grease after unplugging (for reassembly only).

Step 4: Pre-soak the sensor threads

• Spray the sensor’s threaded area with penetrating oil.
• Wait 5–10 minutes. Apply a second time if the sensor looks rusty.

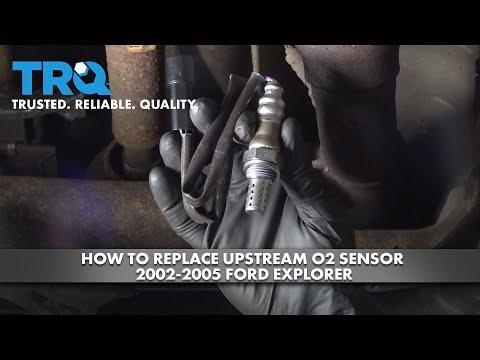

Step 5: Remove the old O2 sensor

• Slide the wire through the slot in the 7/8" (22mm) oxygen sensor socket.
• Use a 3/8" drive ratchet and 3/8" drive extension set to loosen the sensor.
• If it won’t break loose, switch to a 1/2" drive breaker bar (with the correct adapter/socket setup).
• Once loose, spin it out by hand and remove it.

Step 6: Install the new O2 sensor

• Compare the new sensor to the old one (connector shape and wire length should match).
• If the new sensor threads are not pre-coated, apply a small amount of anti-seize compound (sensor-safe) to the threads only.
• Start threading by hand to avoid cross-threading. If it doesn’t spin in easily, stop.
• Tighten with the 7/8" (22mm) oxygen sensor socket and a torque wrench: Torque to 35 Nm (26 ft-lbs).

Step 7: Reconnect and secure the harness

• Reconnect the electrical connector until it clicks.
• Make sure the wire is routed away from the exhaust and clipped back into its holders.

Step 8: Lower the Explorer

• Raise slightly with the floor jack (rated 3-ton minimum), remove the jack stands (rated 3-ton minimum), then lower fully.

Step 9: Clear codes and verify the fix

• Use an OBD2 scan tool (specialty) to clear the trouble codes.
• Start the engine and check for an exhaust leak sound near the sensor area.

---

✅ After Repair

• Test drive 10–15 minutes with mixed city/highway driving.
• Re-scan with the OBD2 scan tool (specialty) to confirm no codes returned.
• If you replaced an upstream sensor and still have lean/rich codes, inspect for vacuum leaks or exhaust leaks before the sensor.
• If you replaced a downstream sensor for a catalyst code (P0420/P0430) and it returns, the catalytic converter may be the real issue.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$500 (parts + labor)

DIY Cost: $60-$180 (parts only)

You Save: $190-$320 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-2.0 hours.

---
