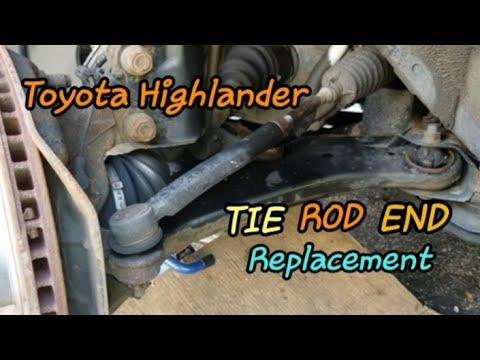

🔧 Highlander - Outer Tie Rod End Replacement

The outer tie rod end connects your steering rack to the steering knuckle. Replacing it restores tight steering and helps prevent uneven tire wear. After replacement, you’ll need a professional alignment so the wheels track straight.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

---

⚠️ Safety & Precautions

• 🛑 Support the Highlander on jack stands before working under/around the wheel area.
• 🧤 Keep fingers clear of pinch points while separating the tie rod end from the knuckle.
• 👓 Wear safety glasses; rust and debris often fall when the joint pops loose.
• 🧭 Keep the steering wheel centered and the key off while working to avoid unexpected steering movement.
• 📏 Plan for an alignment after the repair; “counting turns” is only to get you close.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• 21mm socket
• 1/2" drive breaker bar
• 1/2" drive torque wrench
• 19mm socket
• 22mm open-end wrench
• Needle-nose pliers
• Diagonal cutters
• Tie rod end puller (specialty)
• Penetrating oil
• Paint marker
• Tape measure
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Outer tie rod end - Qty: 1
• Cotter pin - Qty: 1

---

📋 Before You Begin

• 🅿️ Park on level ground, set the parking brake, and chock the rear wheels.
• 🛞 Loosen the front wheel lug nuts slightly before lifting (do not remove yet).
• 📌 Turn the steering wheel so the front wheels are straight, then remove the key and keep it off.
• 🧽 Spray penetrating oil on the tie rod end nut and the jam nut threads, and let it soak a few minutes.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and remove the wheel

• Place wheel chocks behind the rear wheels.
• Use a floor jack (rated 3-ton minimum) to lift the front corner you’re working on.
• Set the vehicle on jack stands (rated 3-ton minimum).
• Use a 21mm socket and breaker bar to remove the lug nuts, then remove the wheel.

Step 2: Mark the position to preserve toe (roughly)

• Use a paint marker to mark the relationship between the jam nut and the tie rod end.
• Use a tape measure to measure from a fixed point on the tie rod end to the jam nut, and write it down.
• This helps you drive to alignment.

Step 3: Remove the cotter pin from the tie rod end stud

• Use needle-nose pliers to straighten the cotter pin legs.
• Use diagonal cutters and needle-nose pliers to pull the cotter pin out.
• If it breaks, remove all pieces before continuing.

Step 4: Remove the tie rod end nut from the steering knuckle

• Use a 19mm socket to remove the castle nut.
• If the stud spins, apply upward pressure on the joint while loosening (use your hand to lift the tie rod end at the knuckle).

Step 5: Separate the tie rod end from the knuckle

• Install a tie rod end puller (specialty) onto the joint.
• Tighten the puller until the stud “pops” free from the knuckle.
• A loud pop is normal.

Step 6: Loosen the jam nut

• Hold the inner tie rod with a 22mm open-end wrench (or the closest flat provided).
• Use the 22mm open-end wrench to break the jam nut loose (do not fully remove it).

Step 7: Remove the old tie rod end (count turns)

• Rotate the tie rod end off by hand and count the exact number of turns until it comes off.
• Write the number down (example: 17.5 turns).

Step 8: Install the new tie rod end

• Thread the new tie rod end on by hand using the same number of turns you counted.
• Align the stud with the steering knuckle and seat it fully.
• Install the new castle nut by hand first, then tighten with a 19mm socket.
• Torque to 49 Nm (36 ft-lbs), then continue tightening only as needed to align the cotter pin hole.
• Install a new cotter pin using needle-nose pliers and bend the legs over securely.

Step 9: Tighten the jam nut

• Hold the inner tie rod with a 22mm open-end wrench.
• Tighten the jam nut with the 22mm open-end wrench.
• Torque to 74 Nm (55 ft-lbs)

Step 10: Reinstall the wheel

• Reinstall the wheel and hand-thread the lug nuts.
• Lower the Highlander off the jack stands using the floor jack.
• Use a 21mm socket and torque wrench to tighten lug nuts in a star pattern.
• Torque to 103 Nm (76 ft-lbs)

---

✅ After Repair

• 🧪 Start the Highlander and turn the steering wheel lock-to-lock while parked to confirm nothing binds or clicks.
• 🛣️ Do a short, slow test drive and confirm the steering wheel is close to centered.
• 📐 Get a 4-wheel alignment as soon as possible to prevent tire wear.
• 🔍 Recheck the cotter pin and look for any looseness after the first drive.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor, alignment often extra)

DIY Cost: $40-$120 (parts only)

You Save: $210-$330 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
