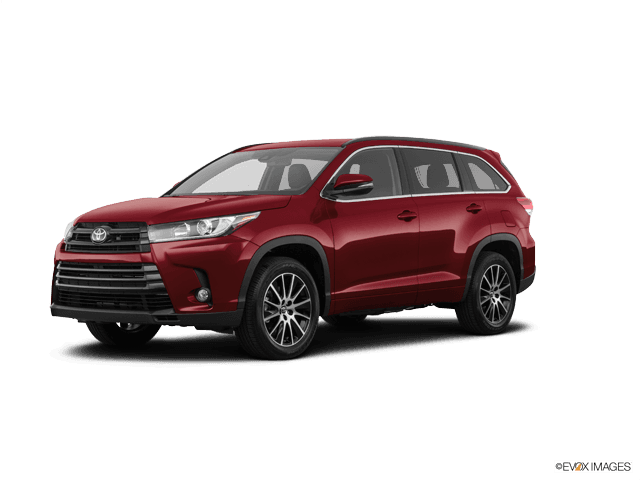

🔧 Highlander - Outer Tie Rod End Replacement

The outer tie rod end connects your steering rack to the steering knuckle, and it’s a common wear item that can cause clunks, loose steering, or uneven tire wear. The key to a smooth DIY is keeping the new tie rod end length close to the old one so the alignment isn’t wildly off on the drive to the alignment shop.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours (one side)

---

⚠️ Safety & Precautions

• ⚠️ Support your Highlander with jack stands—never rely on a floor jack alone.
• ⚠️ Keep hands clear when separating the joint; the knuckle can “pop” free suddenly.
• ⚠️ Plan for a professional alignment right after—tie rods directly affect toe.
• ⚠️ If your Highlander has a cotter pin at the stud nut, always replace it—do not reuse.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• 21mm socket
• 1/2" drive breaker bar
• 1/2" drive torque wrench (20-200 ft-lbs)
• Needle-nose pliers
• Side cutters
• 17mm socket
• 22mm open-end wrench
• Adjustable wrench (10")
• Tie rod end puller (specialty)
• Penetrating oil
• Paint marker
• Tape measure

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Outer tie rod end - Qty: 1
• Cotter pin - Qty: 1

---

📋 Before You Begin

• Park on level ground, point the front wheels straight, and set the parking brake.
• Chock the rear wheels with wheel chocks.
• Loosen the front wheel lug nuts 1/2 turn with a 21mm socket and breaker bar before lifting.
• Spray penetrating oil on the tie rod end jam nut and the stud nut area; let it soak a few minutes.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and remove the wheel

• Lift the front corner with a floor jack (rated 3-ton minimum) at the proper jacking point.
• Set the vehicle on jack stands (rated 3-ton minimum).
• Remove the wheel using a 21mm socket.

Step 2: Mark the current tie rod end position (important)

• Use a paint marker to mark the position of the jam nut relative to the inner tie rod threads.
• Use a tape measure to measure from the center of the tie rod end stud to a fixed point on the tie rod (or record exposed thread length). Write it down before disassembly.

Step 3: Loosen the jam nut

• Hold the inner tie rod area with an adjustable wrench (10") if needed so you don’t twist the steering rack.
• Break the jam nut loose using a 22mm open-end wrench.
• Do not spin it far yet—just loosen it.

Step 4: Remove the cotter pin (if equipped)

• Straighten and remove the cotter pin using needle-nose pliers and side cutters.
• If it breaks, remove all pieces before continuing.

Step 5: Remove the tie rod end stud nut

• Remove the nut from the tie rod end stud using a 17mm socket.
• When installing later: Torque to 49 Nm (36 ft-lbs), then continue tightening only as needed to align the cotter pin hole.

Step 6: Separate the tie rod end from the steering knuckle

• Install and tighten a tie rod end puller (specialty) until the taper “pops” loose. (A tie rod end puller is a small press that pushes the stud out without hammering.)
• Avoid striking the threads on the stud.

Step 7: Unthread the old tie rod end

• Spin the tie rod end off by hand and count the exact turns until it comes off.
• Record the turn count—this is how you’ll get the new one close.

Step 8: Install the new tie rod end

• Thread the new tie rod end on by hand the same number of turns you counted on removal.
• Line up your paint mark / measurement from Step 2 to get it as close as possible.

Step 9: Attach the stud to the steering knuckle

• Insert the tie rod end stud into the knuckle.
• Install the stud nut and tighten with a 17mm socket and torque wrench.
• Torque to 49 Nm (36 ft-lbs), then tighten slightly more only to align the cotter pin hole.
• Install a new cotter pin using needle-nose pliers.

Step 10: Tighten the jam nut

• Hold the inner tie rod with an adjustable wrench (10").
• Tighten the jam nut with a 22mm open-end wrench.
• Torque to 74 Nm (55 ft-lbs).

Step 11: Reinstall the wheel

• Reinstall the wheel and snug the lug nuts using a 21mm socket.
• Lower the vehicle, then torque the lug nuts in a star pattern with a torque wrench.
• Torque to 140 Nm (103 ft-lbs).

---

✅ After Repair

• Start your Highlander and turn the steering wheel lock-to-lock to confirm smooth movement and no binding.
• Road-test slowly first; verify the steering wheel is close to centered and there are no clunks.
• Get a 4-wheel alignment ASAP. Even “close” toe can shred tires.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor + alignment)

DIY Cost: $40-$120 (parts only, alignment extra)

You Save: $130-$330 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
