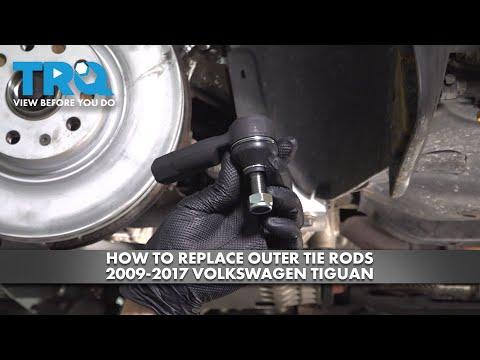

🔧 Tiguan - Outer Tie Rod End Replacement

The outer tie rod end connects your steering rack to the wheel knuckle and is a common wear item that can cause loose steering, clunks, or uneven tire wear. The key to a smooth DIY job is keeping the new tie rod end as close as possible to the old length, then getting a proper alignment afterward.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours (per side)

---

⚠️ Safety & Precautions

• ⚠️ Support your Tiguan on jack stands—never rely on a floor jack alone.
• ⚠️ Keep hands clear of pinch points when separating the tie rod end from the knuckle.
• ⚠️ After replacement, you should get a professional alignment ASAP to prevent tire wear and unstable handling.
• ⚠️ If any steering fastener feels “spongy” or won’t torque correctly, stop and replace the hardware.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Safety glasses
• Mechanic gloves
• 17mm socket
• Breaker bar 1/2"
• Torque wrench 10–200 Nm
• 18mm socket
• 22mm open-end wrench
• Adjustable wrench 250mm
• Tie rod end puller (specialty)
• Paint marker
• Tape measure
• Penetrating oil
• Wire brush

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Outer tie rod end (left or right) - Qty: 1
• Self-locking tie rod end nut - Qty: 1
• Jam nut (if not included with tie rod end) - Qty: 1

---

📋 Before You Begin

• Park on level ground, straighten the steering wheel, and set the parking brake.
• Place wheel chocks behind the rear tires.
• Loosen the front wheel lug bolts slightly before lifting (do not remove yet).
• Spray penetrating oil on the tie rod end nut at the knuckle and the jam nut threads. Let it soak 5–10 minutes.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and remove the wheel

• Use a 17mm socket with a breaker bar 1/2" to loosen the lug bolts (about 1/2 turn).
• Lift the front corner with the floor jack (rated 3-ton minimum) and set it on jack stands (rated 3-ton minimum).
• Remove the lug bolts with the 17mm socket and remove the wheel.

Step 2: Mark the current alignment position

• Use a wire brush to clean exposed threads on the tie rod.
• Use a paint marker to mark the position of the jam nut against the tie rod.
• Use a tape measure and write down the length from the center of the tie rod end stud to a fixed point on the inner tie rod (this helps keep it close). Close is good—alignment still required.

Step 3: Loosen the jam nut

• Hold the tie rod end body with an adjustable wrench 250mm.
• Crack the jam nut loose using a 22mm open-end wrench (turn it counterclockwise).
• Do not spin it far—just break it free.

Step 4: Remove the tie rod end nut at the knuckle

• Use an 18mm socket to remove the nut holding the tie rod end stud to the steering knuckle.
• If the stud spins, keep downward pressure on the joint and continue with the 18mm socket. (Some tie rod ends also have an internal hex—if yours does, hold it while loosening.)

Step 5: Separate the tie rod end from the knuckle

• Install a tie rod end puller (specialty) over the joint and tighten until the stud pops free from the knuckle.
• A tie rod end puller is a clamp-style tool that pushes the stud out without damaging the boot.

Step 6: Remove the old tie rod end from the tie rod

• Spin the tie rod end off by hand, counting full turns as you remove it.
• Write the number of turns down—this is your best “close alignment” reference.

Step 7: Install the new tie rod end

• Thread the new tie rod end on by hand the same number of turns you counted during removal.
• Align the stud with the knuckle hole and insert it fully.
• Install the new self-locking nut by hand first (to avoid cross-threading), then tighten with the 18mm socket.
• Torque to 45 Nm (33 ft-lbs) + 90° turn using a torque wrench 10–200 Nm. Use a paint mark for the 90°.

Step 8: Tighten the jam nut

• Hold the tie rod end body with the adjustable wrench 250mm.
• Tighten the jam nut with the 22mm open-end wrench.
• Torque to 50 Nm (37 ft-lbs) using a torque wrench 10–200 Nm (use a suitable method to apply torque while holding the tie rod end steady).

Step 9: Reinstall the wheel

• Reinstall the wheel and hand-thread the lug bolts.
• Lower the vehicle off the jack stands (rated 3-ton minimum) using the floor jack (rated 3-ton minimum).
• Torque to 140 Nm (103 ft-lbs) in a star pattern using a torque wrench 10–200 Nm and 17mm socket.

---

✅ After Repair

• Start the engine and turn the steering wheel lock-to-lock to confirm smooth movement and no binding.
• Test drive at low speed first. Listen for clunks and verify the steering wheel returns to center normally.
• Get a 4-wheel alignment as soon as possible (recommended immediately) to prevent rapid tire wear.
• Recheck the lug bolt torque after 25–50 miles using a torque wrench 10–200 Nm.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor, not including alignment)

DIY Cost: $40-$120 (parts only, per side)

You Save: $130-$350 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-2.0 hours.

---
