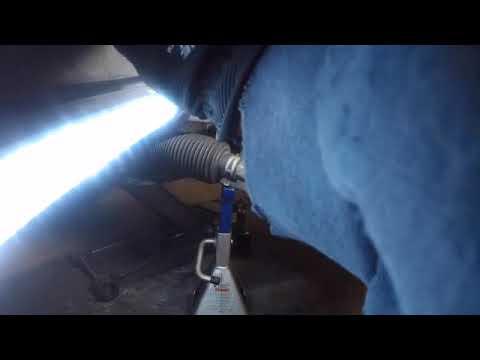

🔧 4Runner - Outer Tie Rod End Replacement

The outer tie rod end connects your steering rack to the steering knuckle and is a common wear item that can cause looseness, clunking, or uneven tire wear. Replacing it is straightforward, but you must keep the toe (front wheel alignment) close and get a proper alignment afterward.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours (one side)

---

⚠️ Safety & Precautions

• 🛑 Support your 4Runner with jack stands; never rely on a jack alone.
• 🛑 Chock the rear wheels and keep the transmission in Park.
• 🛑 Keep hands clear while separating the taper joint; it can “pop” loose suddenly.
• 🛑 If you remove a cotter pin, always replace it with a new one.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 21mm socket
• 1/2" drive breaker bar
• 1/2" drive torque wrench (20-200 ft-lbs)
• Needle-nose pliers
• Side cutters
• 17mm socket
• 17mm combination wrench
• 19mm socket
• Ball joint separator (pickle fork) (specialty)
• Ball-peen hammer (16 oz)
• Penetrating oil
• Paint marker
• Steel ruler (6-inch)
• Safety glasses
• Mechanic gloves
• Grease gun

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Outer tie rod end - Qty: 1
• Cotter pin - Qty: 1
• Zerk grease fitting - Qty: 1

---

📋 Before You Begin

• Park on level ground, straighten the steering wheel, and set the parking brake.
• Chock both rear wheels.
• Before lifting, use a 21mm socket and breaker bar to loosen the front wheel lug nuts about 1/2 turn.
• Spray penetrating oil on the outer tie rod end jam nut and the stud/nut area and let it soak for a few minutes.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and remove the wheel

• Use a floor jack to lift the front corner at the frame jacking point.
• Place jack stands under the frame and lower the truck onto them.
• Remove the lug nuts with a 21mm socket and take the wheel off.

Step 2: Mark your starting point (helps keep alignment close)

• Use a paint marker to mark the position of the jam nut on the inner tie rod threads.
• Measure the exposed thread length with a steel ruler and write it down.
• This helps you install the new one in the same spot.

Step 3: Loosen the jam nut

• Hold the outer tie rod end with a 17mm combination wrench.
• Loosen the jam nut using a 17mm socket (or 17mm wrench) by turning it counterclockwise.
• Do not spin it far away yet—just crack it loose.

Step 4: Remove the cotter pin and tie rod end nut

• Straighten and pull the cotter pin out using needle-nose pliers (use side cutters if it’s stuck).
• Remove the tie rod end castle nut using a 19mm socket.

Step 5: Separate the tie rod end from the steering knuckle

• Install the ball joint separator (pickle fork) (specialty) between the tie rod end and the knuckle.
• Strike the separator with a ball-peen hammer (16 oz) until the tapered stud pops free.
• Wear safety glasses; rust flakes can fly.

Step 6: Remove the outer tie rod end from the inner tie rod

• Spin the outer tie rod end off by hand, counting the turns as you remove it (example: “17 turns”).
• Write the number of turns down.

Step 7: Install the new outer tie rod end

• Thread the new outer tie rod end on by hand the exact same number of turns you counted during removal.
• Line up the stud with the knuckle and push it into the tapered hole.
• Install the new castle nut by hand, then tighten with a 19mm socket.
• Torque to 67 Nm (49 ft-lbs)
• If the cotter pin hole doesn’t line up, tighten the nut slightly more until it aligns (do not loosen to align).
• Install a new cotter pin using needle-nose pliers and bend the ends over.

Step 8: Tighten the jam nut

• Hold the outer tie rod end with a 17mm combination wrench.
• Tighten the jam nut using a 17mm socket and torque wrench.
• Torque to 74 Nm (55 ft-lbs)

Step 9: Grease the new tie rod end (if it has a grease fitting)

• Thread in the zerk grease fitting if it isn’t pre-installed (hand-tight, then snug with a 10mm wrench).
• Use a grease gun to add chassis grease until you see the boot just begin to swell.
• Stop before the boot balloons.

Step 10: Reinstall the wheel

• Reinstall the wheel and hand-thread the lug nuts.
• Lower the truck off the jack stands using the floor jack.
• Tighten lug nuts in a star pattern with a torque wrench.
• Torque to 113 Nm (83 ft-lbs)

---

✅ After Repair

• Start the engine and turn the steering wheel lock-to-lock to confirm smooth movement and no binding.
• Road test at low speed first; confirm the steering wheel is close to centered.
• Get a front-end alignment as soon as possible to prevent tire wear.
• Recheck for any looseness and inspect the cotter pin after the first short drive.

---

💰 DIY vs Shop Cost

Shop Cost: $200-$450 (parts + labor, not including alignment)

DIY Cost: $40-$120 (parts only)

You Save: $160-$330 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
