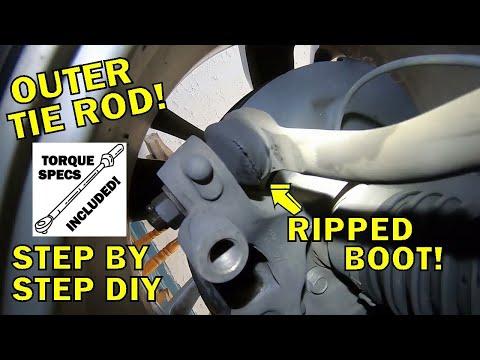

🔧 Altima - Outer Tie Rod End Replacement

This repair replaces the outer tie rod end, which connects the steering rack to the front wheel knuckle. A worn tie rod end can cause loose steering, clunking, uneven tire wear, or poor alignment.

Difficulty Level: Intermediate | Estimated Time: 1-2 hours per side

Assumption: This guide is for replacing one front outer tie rod end on your Altima.

---

⚠️ Safety & Precautions

• ⚠️ Work on level ground and never rely on a jack alone. Jack stands support the vehicle safely after lifting.
• ⚠️ Do not hammer directly on the aluminum/steel steering knuckle threads or the new tie rod end stud.
• ⚠️ Count the turns when removing the old tie rod end. This helps keep the alignment close enough to drive to an alignment shop.
• ⚠️ A wheel alignment is required after this repair. Driving without alignment can quickly ruin tires.
• ⚠️ Battery disconnect is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 21mm lug nut socket
• 1/2-inch drive breaker bar
• 1/2-inch drive torque wrench
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Needle-nose pliers
• 17mm wrench
• 19mm wrench
• 22mm wrench
• 19mm socket
• Ratchet
• Tie rod end puller (specialty)
• Paint marker
• Measuring tape
• Wire brush
• Penetrating oil
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front outer tie rod end - Qty: 1 per side
• New cotter pin - Qty: 1 per side
• New tie rod end castle nut - Qty: 1 per side

Best practice: Replace tie rod ends in pairs if both sides are worn, then perform one wheel alignment.

---

📋 Before You Begin

• Park your Altima on flat, solid ground.
• Set the parking brake and place wheel chocks behind the rear wheels.
• Point the steering wheel straight ahead before lifting the vehicle.
• Spray penetrating oil on the outer tie rod jam nut and the tie rod stud nut. Let it soak for a few minutes.
• A jam nut is the lock nut on the inner tie rod that holds the outer tie rod end in place.
• A cotter pin is a small bent metal pin that prevents the nut from loosening.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the Front Wheel Lug Nuts

• Use a 21mm lug nut socket and 1/2-inch drive breaker bar to loosen the front wheel lug nuts about half a turn.
• Do not remove the lug nuts yet.
• Loosen before lifting for safety.

Step 2: Lift and Support the Front of the Vehicle

• Use a floor jack at the front center jacking point or the correct side pinch weld area.
• Place jack stands under the proper front support points.
• Gently lower your Altima onto the jack stands.
• Keep the floor jack lightly touching as a backup, but do not use it as the only support.

Step 3: Remove the Front Wheel

• Use a 21mm lug nut socket and ratchet to remove the lug nuts.
• Remove the wheel and place it flat under the side of the vehicle as an extra safety backup.

Step 4: Clean and Mark the Tie Rod Position

• Use a wire brush to clean the threads where the outer tie rod end meets the inner tie rod.
• Use a paint marker to mark the location of the jam nut and outer tie rod end.
• Use a measuring tape to measure from the center of the tie rod stud to a fixed point on the inner tie rod threads.
• Write down the measurement.
• This keeps alignment close temporarily.

Step 5: Loosen the Jam Nut

• Hold the outer tie rod end steady with a 19mm wrench if needed.
• Use a 22mm wrench to loosen the jam nut about one turn.
• If the nut is stuck, apply penetrating oil and work it back and forth gently.

Step 6: Remove the Cotter Pin and Castle Nut

• Straighten the cotter pin ends using needle-nose pliers.
• Pull the cotter pin out with needle-nose pliers.
• Use a 19mm socket and ratchet to remove the castle nut from the tie rod end stud.
• A castle nut has slots on top so the cotter pin can pass through it.

Step 7: Separate the Tie Rod End from the Steering Knuckle

• Install the tie rod end puller over the tie rod end and steering knuckle connection.
• Tighten the puller using the correct wrench or socket included with the tool until the stud pops free.
• Do not use a pickle fork unless replacing the part, because it can damage the rubber boot.
• A loud pop is normal.

Step 8: Count Turns and Remove the Old Tie Rod End

• Turn the outer tie rod end counterclockwise by hand or with a 19mm wrench.
• Count every full turn while removing it.
• Write down the number of turns.
• Remove the old tie rod end from the inner tie rod.

Step 9: Install the New Tie Rod End

• Thread the new outer tie rod end onto the inner tie rod by the same number of turns counted during removal.
• Use your measuring tape to compare the new position with your earlier measurement.
• Line up the paint mark as closely as possible.
• Do not fully tighten the jam nut yet.

Step 10: Attach the Tie Rod End to the Steering Knuckle

• Insert the new tie rod end stud into the steering knuckle by hand.
• Install the new castle nut by hand first to avoid cross-threading.
• Use a 19mm socket and 1/2-inch drive torque wrench to tighten the tie rod end nut to Torque to 35 Nm (26 ft-lbs).
• If the castle nut slot does not line up with the cotter pin hole, tighten slightly more until it lines up. Do not loosen it to align the hole.

Step 11: Install the New Cotter Pin

• Slide the new cotter pin through the tie rod stud hole.
• Use needle-nose pliers to bend the cotter pin ends around the nut.
• Make sure the cotter pin cannot contact the brake rotor or wheel.

Step 12: Tighten the Jam Nut

• Hold the new outer tie rod end with a 19mm wrench.
• Use a 22mm wrench to tighten the jam nut against the tie rod end.
• Tighten the jam nut to Torque to 75 Nm (55 ft-lbs).

Step 13: Reinstall the Wheel

• Place the wheel back onto the hub.
• Install the lug nuts by hand first.
• Use a 21mm lug nut socket and ratchet to snug the lug nuts in a star pattern.

Step 14: Lower the Vehicle and Torque the Lug Nuts

• Use the floor jack to lift your Altima slightly off the jack stands.
• Remove the jack stands.
• Lower the vehicle fully to the ground.
• Use a 21mm lug nut socket and 1/2-inch drive torque wrench to tighten the lug nuts in a star pattern to Torque to 113 Nm (83 ft-lbs).

---

✅ After Repair

• Turn the steering wheel left and right while parked. Listen for rubbing, clicking, or binding.
• Take a slow test drive in a safe area. The steering wheel should return smoothly and the car should not pull sharply.
• Schedule a professional wheel alignment as soon as possible.
• After 25-50 miles, recheck the lug nut torque with a 21mm lug nut socket and 1/2-inch drive torque wrench.
• If the steering wheel is far off-center or the car feels unstable, do not keep driving. Have the alignment checked immediately.

---

💰 DIY vs Shop Cost

Shop Cost: $220-$420 per side, plus alignment

DIY Cost: $35-$90 per side, plus alignment

You Save: $150-$300 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.8-1.3 hours per side.

---

🎯 Ready to get started?

HowToo makes it easy: same-day/2-day shipping on every part, plus all the tools and specialty tools you need! Check out the parts and tools sections below to add everything to your cart.

🔧 Altima - Outer Tie Rod End Replacement

This repair replaces the outer tie rod end, the steering joint that connects the steering linkage to the front wheel knuckle. A worn tie rod end can cause clunking, loose steering, uneven tire wear, or poor alignment.

Difficulty Level: Intermediate | Estimated Time: 1-2 hours per side

---

⚠️ Safety & Precautions

• ⚠️ Work on flat, solid ground and support your Altima with jack stands. Never work under a vehicle supported only by a jack.
• ⚠️ Do not hammer directly on the threaded stud of the tie rod end. This can damage the threads and make removal harder.
• ⚠️ Count the turns when removing the old tie rod end. This helps keep the alignment close enough to drive safely to an alignment shop.
• ⚠️ A wheel alignment is required after replacement. Driving without alignment can quickly wear out the tires.
• ⚠️ Battery disconnect is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 21mm lug nut socket
• 1/2-inch drive breaker bar
• 1/2-inch drive torque wrench
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Needle-nose pliers
• 19mm socket
• Ratchet
• 19mm wrench
• 22mm wrench
• Tie rod end puller (specialty)
• Paint marker
• Measuring tape
• Wire brush
• Penetrating oil
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front outer tie rod end - Qty: 1 per side
• New cotter pin - Qty: 1 per side
• New castle nut - Qty: 1 per side

Best practice: Replace in pairs if both sides have play or torn boots, then perform one wheel alignment.

---

📋 Before You Begin

• Park your Altima on level ground.
• Set the parking brake and place wheel chocks behind the rear wheels.
• Point the steering wheel straight ahead.
• Spray penetrating oil on the jam nut and tie rod stud nut. A jam nut is the lock nut on the inner tie rod threads.
• Look at the new tie rod end before starting. A cotter pin is a small bendable pin that locks the nut in place.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the Front Wheel Lug Nuts

• Use a 21mm lug nut socket and 1/2-inch drive breaker bar to loosen the front lug nuts about half a turn.
• Do not remove the lug nuts while the wheel is still on the ground.
• Loosen first, lift second.

Step 2: Lift and Support the Vehicle

• Use a floor jack to lift the front of your Altima at the proper front jacking point or side pinch weld.
• Place jack stands under the front support points.
• Lower the vehicle gently onto the jack stands.
• Keep the floor jack lightly touching as a backup, but do not rely on it alone.

Step 3: Remove the Front Wheel

• Use a 21mm lug nut socket and ratchet to remove the loosened lug nuts.
• Remove the wheel and place it flat under the side of the vehicle as an extra safety backup.

Step 4: Mark the Tie Rod Position

• Use a wire brush to clean the exposed threads where the outer tie rod end meets the inner tie rod.
• Use a paint marker to mark the jam nut position on the threads.
• Use a measuring tape to measure from the center of the tie rod stud to a fixed point on the inner tie rod.
• Write the measurement down.
• This helps preserve toe alignment.

Step 5: Loosen the Jam Nut

• Use a 22mm wrench to loosen the jam nut about one turn.
• If the outer tie rod wants to turn with it, hold the tie rod end steady with a 19mm wrench.
• Do not move the jam nut far from your paint mark.

Step 6: Remove the Cotter Pin and Castle Nut

• Use needle-nose pliers to straighten the cotter pin ends.
• Pull the cotter pin out with needle-nose pliers.
• Use a 19mm socket and ratchet to remove the castle nut from the tie rod stud.
• A castle nut has slots at the top so the cotter pin can pass through it.

Step 7: Separate the Tie Rod End from the Knuckle

• Install the tie rod end puller over the tie rod end stud and steering knuckle.
• A tie rod end puller is a small press tool that safely pops the tapered stud loose without damaging nearby parts.
• Tighten the puller with the required wrench or socket from the tool kit until the stud pops free.
• The pop sound is normal.

Step 8: Remove the Old Tie Rod End

• Turn the old outer tie rod end counterclockwise by hand.
• If it is tight, use a 19mm wrench.
• Count the exact number of turns as it comes off.
• Write down the number of turns.

Step 9: Install the New Tie Rod End

• Thread the new outer tie rod end onto the inner tie rod by hand.
• Use the same number of turns you counted during removal.
• Use the measuring tape to compare the position to your earlier measurement.
• Keep the jam nut near your paint mark.

Step 10: Attach the New Tie Rod End to the Knuckle

• Insert the new tie rod end stud into the steering knuckle by hand.
• Thread the new castle nut on by hand first.
• Use a 19mm socket and 1/2-inch drive torque wrench to tighten the nut to Torque to 35 Nm (26 ft-lbs).
• If the cotter pin hole does not line up with the castle nut slot, tighten the nut slightly more until it lines up. Do not loosen it to line up the hole.

Step 11: Install the New Cotter Pin

• Slide the new cotter pin through the hole in the tie rod stud.
• Use needle-nose pliers to bend the cotter pin ends around the castle nut.
• Make sure the bent ends do not touch the brake rotor or wheel.

Step 12: Tighten the Jam Nut

• Hold the new outer tie rod end steady with a 19mm wrench.
• Use a 22mm wrench to tighten the jam nut against the tie rod end.
• Tighten the jam nut to Torque to 75 Nm (55 ft-lbs).

Step 13: Reinstall the Wheel

• Place the wheel back onto the hub.
• Start all lug nuts by hand to avoid cross-threading.
• Use a 21mm lug nut socket and ratchet to snug the lug nuts in a star pattern.

Step 14: Lower the Vehicle and Torque the Lug Nuts

• Use the floor jack to lift the vehicle slightly off the jack stands.
• Remove the jack stands.
• Lower your Altima fully to the ground.
• Use a 21mm lug nut socket and 1/2-inch drive torque wrench to tighten the lug nuts in a star pattern to Torque to 113 Nm (83 ft-lbs).

---

✅ After Repair

• Turn the steering wheel fully left and right while parked. Listen for rubbing, clicking, or binding.
• Take a short, slow test drive in a safe area.
• If the steering wheel is badly off-center or the vehicle pulls hard, stop driving and have it towed for alignment.
• Get a professional wheel alignment as soon as possible.
• After 25-50 miles, recheck lug nut torque with a 21mm lug nut socket and 1/2-inch drive torque wrench.

---

💰 DIY vs Shop Cost

Shop Cost: $220-$420 per side, plus alignment

DIY Cost: $35-$90 per side, plus alignment

You Save: $150-$300 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.8-1.3 hours per side.

---

🎯 Ready to get started?

HowToo makes it easy: same-day/2-day shipping on every part, plus all the tools and specialty tools you need! Check out the parts and tools sections below to add everything to your cart.
