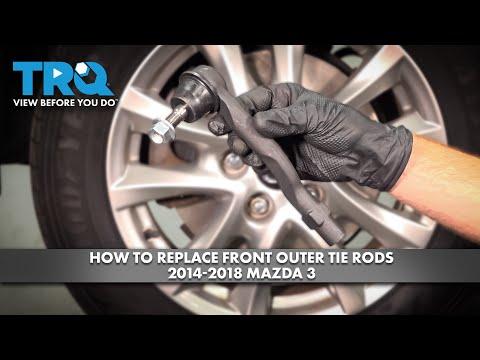

🔧 Mazda3 - Tie Rod End Replacement

The tie rod end connects your steering rack to the front wheel knuckle. Replacing a worn one fixes looseness, clunks, and bad alignment, but you’ll still need an alignment afterward to prevent tire wear.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

---

⚠️ Safety & Precautions

• 🛑 Support your Mazda3 on jack stands; never rely on a jack.
• 🧤 Wear safety glasses; rust and dirt fall when separating the joint.
• 🔥 Let brakes/rotors cool before working near them.
• 🔩 Do not reuse a removed cotter pin; always install a new one.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• 21mm socket
• 1/2" drive breaker bar
• 1/2" drive torque wrench
• Open-end wrench set (14mm–22mm)
• Adjustable wrench (10")
• Needle-nose pliers
• Diagonal cutters
• Wire brush
• Penetrating oil
• Paint marker
• Tape measure
• Tie rod end puller (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front outer tie rod end - Qty: 1
• Cotter pin - Qty: 1

---

📋 Before You Begin

• Park on level ground, steering wheel centered, and set the parking brake.
• Chock the rear wheels using wheel chocks.
• Loosen the front wheel lug nuts 1/2 turn using a 21mm socket and breaker bar.
• Jack up the front using a floor jack and support with jack stands at the pinch welds.
• Plan on getting an alignment after.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm which part you’re replacing

• Please confirm: are you replacing the outer tie rod end (the joint at the steering knuckle), or the inner tie rod (the joint at the steering rack under the boot)?
• Please also tell me: driver (left) or passenger (right) side?

Step 2: Remove the wheel

• Remove the lug nuts using a 21mm socket and take the wheel off.

Step 3: Set a reference so alignment is close

• Spray the tie rod threads and jam nut with penetrating oil.
• Use a paint marker to mark the jam nut position on the threads.
• Measure from a fixed point on the tie rod end to the jam nut using a tape measure, and write it down.
• This helps your toe stay close.

Step 4: Loosen the jam nut

• Hold the inner tie rod/flat area with an adjustable wrench (10") as needed.
• Break the jam nut loose using the correct-size open-end wrench.
• Do not fully remove the jam nut yet.

Step 5: Remove the cotter pin and loosen the tie rod end nut

• Straighten and remove the cotter pin using needle-nose pliers and diagonal cutters.
• Use the correct-size open-end wrench or socket to loosen (but not fully remove) the tie rod end nut.

Step 6: Separate the tie rod end from the steering knuckle

• Install a tie rod end puller (specialty) over the joint.
• Tighten the puller until the stud “pops” free from the knuckle.
• Now remove the nut fully with the correct-size socket or open-end wrench.
• A puller protects the boot.

Step 7: Remove the old tie rod end

• Spin the tie rod end off by hand, counting the exact number of turns.
• Write the number down.

Step 8: Install the new tie rod end

• Thread the new tie rod end on using the same number of turns as removal.
• Snug the jam nut by hand against the new tie rod end.
• Insert the stud into the knuckle.

Step 9: Final tightening (torque specs) and cotter pin

• Once you confirm outer vs inner and which side, I’ll give you the exact Mazda torque specs for:
• Castle nut torque using a torque wrench
• Jam nut torque using a torque wrench and correct-size open-end wrench
• Install a new cotter pin using needle-nose pliers.

Step 10: Reinstall wheel

• Reinstall the wheel and hand-thread lug nuts.
• Lower the car off the stands using the floor jack.
• Torque lug nuts in a star pattern using a torque wrench.

---

✅ After Repair

• Turn the steering wheel lock-to-lock and make sure nothing binds or rubs.
• Test drive at low speed first and listen for clunks.
• Get a professional alignment as soon as possible to prevent tire wear.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$400 (parts + labor + basic alignment)

DIY Cost: $30-$120 (parts only)

You Save: $150-$280 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
