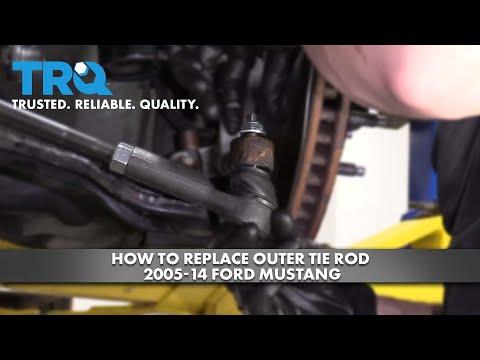

🔧 Mustang - Outer Tie Rod End Replacement

The outer tie rod end connects your steering rack/tie rod to the steering knuckle. Replacing it restores tight steering and helps prevent uneven tire wear when the joint gets loose or the boot tears.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours (one side)

---

⚠️ Safety & Precautions

• 🛑 Support your Mustang on jack stands before working under/near the suspension.
• 🛑 Keep hands clear when separating the tie rod from the knuckle (it can pop loose suddenly).
• 🛑 After replacement, you should get a professional wheel alignment ASAP to prevent tire wear.
• 🛑 No battery disconnect is required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• 21mm socket
• 1/2" drive breaker bar
• 1/2" drive torque wrench (20-200 ft-lb range)
• Adjustable wrench 10-inch
• Needle-nose pliers
• Diagonal cutters
• Hammer (16 oz)
• Tie rod end puller (specialty)
• Penetrating oil
• Paint marker
• Tape measure (inch/mm)
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Outer tie rod end - Qty: 1
• Cotter pin (new) - Qty: 1
• Anti-seize compound - Qty: 1

---

📋 Before You Begin

• 🧰 Park on level ground, steering wheel straight, and set the parking brake.
• 🧰 Place wheel chocks behind the rear wheels.
• 🧰 Lightly loosen the front wheel lug nuts before lifting the car.
• 🧰 Spray penetrating oil on the tie rod end jam nut and the stud nut threads, then wait 5–10 minutes.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and remove the front wheel

• Use a 21mm socket and 1/2" breaker bar to loosen lug nuts about 1 turn.
• Lift the front corner with a floor jack (rated 3-ton minimum).
• Set the car securely on jack stands (rated 3-ton minimum).
• Remove the lug nuts with the 21mm socket and remove the wheel.

Step 2: Mark the tie rod end position (so your toe stays close)

• Use a paint marker to mark the tie rod end and the threaded tie rod/adjuster area.
• Use a tape measure to record the distance from a fixed point (like the jam nut face) to the tie rod end, or count visible threads.
• This helps you drive to alignment safely.

Step 3: Loosen the jam nut

• Hold the inner tie rod/adjuster area steady with an adjustable wrench 10-inch.
• Use another adjustable wrench 10-inch to break loose the jam nut (the nut directly behind the outer tie rod end).
• Do not fully remove the jam nut yet—just loosen it.

Step 4: Remove the cotter pin and stud nut

• Use needle-nose pliers to straighten the cotter pin legs.
• Pull the cotter pin out using needle-nose pliers (cut it with diagonal cutters if it’s stuck).
• Use an adjustable wrench 10-inch to remove the tie rod end stud nut (castle nut) from the steering knuckle.

Step 5: Separate the tie rod end from the steering knuckle

• Install a tie rod end puller (specialty) and tighten it until the stud pops free. A puller is a clamp tool that pushes the stud out.
• If needed, tap the knuckle boss lightly with a hammer (16 oz) while tension is on the puller (don’t hit the stud threads).

Step 6: Remove the old tie rod end (count turns)

• Spin the outer tie rod end off by hand, counting the exact number of turns it takes to come off.
• Write the number down so you can install the new one the same amount.

Step 7: Install the new tie rod end

• Apply a light coat of anti-seize compound to the threads (avoid the stud taper).
• Thread the new outer tie rod end on the same number of turns you counted.
• Insert the stud into the steering knuckle.
• Tighten the stud nut using an adjustable wrench 10-inch: Torque to 85 Nm (63 ft-lb).
• Insert a new cotter pin through the castle nut and bend the legs with needle-nose pliers.
• If the cotter pin hole doesn’t line up, tighten the nut slightly more to align it (do not loosen to align).

Step 8: Tighten the jam nut

• Hold the tie rod end with an adjustable wrench 10-inch.
• Tighten the jam nut with an adjustable wrench 10-inch: Torque to 70 Nm (52 ft-lb).

Step 9: Reinstall the wheel

• Reinstall the wheel and hand-thread lug nuts.
• Lower the car and torque lug nuts using a 1/2" drive torque wrench (20-200 ft-lb range) and 21mm socket: Torque to 203 Nm (150 ft-lb).

---

✅ After Repair

• 🔍 Turn the steering wheel lock-to-lock while parked to confirm nothing binds or contacts.
• 🔍 Test drive at low speed first; confirm steering wheel is close to centered and the car tracks straight.
• 🔍 Schedule a front-end alignment as soon as possible (same day if you can).
• 🔍 Recheck the jam nut area for movement after a short drive.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$450 (parts + labor + typical alignment)

DIY Cost: $35-$120 (parts only)

You Save: $145-$330 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
