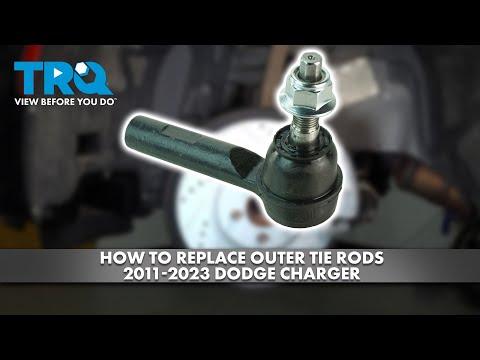

🔧 Charger - Outer Tie Rod End Replacement

The outer tie rod end connects your steering rack to the front steering knuckle, and it’s a common wear item that can cause loose steering, clunks, or uneven tire wear. Replacement is straightforward, but you must keep the toe setting close and get an alignment afterward.

Before I start you on steps: Which side are you replacing (front left or front right), and are you replacing outer only (at the knuckle) or inner + outer?

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

---

⚠️ Safety & Precautions

• 🛑 Support the Charger on jack stands—never rely on a floor jack alone.
• 🛑 Chock the rear wheels and keep the transmission in Park.
• 🛑 After replacement, you need a front toe alignment to prevent tire wear.
• 🛑 If you use a hammer near the knuckle, avoid striking the stud threads directly.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• Breaker bar 1/2"
• Torque wrench 3/8" drive (10-100 ft-lbs range)
• Torque wrench 1/2" drive (50-250 ft-lbs range)
• Lug nut socket 22mm
• Open-end wrench set (metric)
• Socket set (metric)
• Pliers (needle-nose)
• Tie rod end puller (specialty)
• Wire brush
• Paint marker
• Tape measure (metric or inch)
• Penetrating oil

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Outer tie rod end - Qty: 1
• Cotter pin (tie rod stud) - Qty: 1
• Jam nut (if not reusable or supplied) - Qty: 1

---

📋 Before You Begin

• Park on a level surface, steering wheel straight, and set the parking brake.
• Loosen the front wheel lug nuts slightly using a 22mm lug nut socket and breaker bar before lifting.
• Spray penetrating oil on the jam nut and the tie-rod-to-knuckle stud nut using penetrating oil.
• Plan on getting a professional alignment after the repair.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and remove the wheel

• Lift the front corner with a floor jack (rated 3-ton minimum) at the proper front lift point.
• Set the car down on jack stands (rated 3-ton minimum).
• Remove the wheel using a 22mm lug nut socket and breaker bar 1/2".

Step 2: Mark your current toe setting (to keep it close)

• Use a paint marker to mark the position of the jam nut on the outer tie rod threads.
• Measure from a fixed point (example: inner tie rod shoulder) to the center of the outer tie rod end using a tape measure and write it down.
• This helps you drive to alignment safely.

Step 3: Loosen the jam nut

• Hold the tie rod with an open-end wrench set (metric) and loosen the jam nut using another open-end wrench set (metric).
• If it’s rusty, clean exposed threads with a wire brush and reapply penetrating oil.

Step 4: Remove the tie rod end from the steering knuckle

• Remove the cotter pin (if equipped) with pliers (needle-nose).
• Remove the stud nut using the appropriate socket set (metric).
• Separate the stud from the knuckle using a tie rod end puller (specialty) (this tool presses the stud out without damaging the boot).
• Avoid prying directly on the rubber boot.

Step 5: Remove the outer tie rod end from the threads

• Spin the outer tie rod end off by hand, counting the exact number of turns as you remove it.
• Write the number down. You’ll install the new one using the same number of turns.

Step 6: Install the new outer tie rod end

• Thread the new tie rod end on the inner tie rod the same number of turns you counted.
• Line up the stud with the steering knuckle hole and push it into place.
• Install the new stud nut by hand first to avoid cross-threading.
• Torque to OEM specification using a torque wrench. (If you tell me left/right and whether your new part includes a new nut/cotter setup, I’ll give you the exact spec for your configuration.)
• If it uses a cotter pin, continue tightening only as needed to align the castellations, then install a new cotter pin using pliers (needle-nose).

Step 7: Tighten the jam nut

• Hold the tie rod end with an open-end wrench set (metric).
• Tighten the jam nut against the tie rod end using an open-end wrench set (metric).
• Torque to OEM specification using a torque wrench if you have a crowfoot/adapter; otherwise tighten firmly and re-check after alignment.

Step 8: Reinstall wheel and lower the car

• Install the wheel and hand-tighten the lug nuts using a 22mm lug nut socket.
• Lower off the jack stands using the floor jack.
• Torque lug nuts to OEM specification using a torque wrench 1/2" drive.

---

✅ After Repair

• Start the car and turn the steering wheel lock-to-lock while parked; confirm there’s no binding or popping.
• Road test at low speed first; steering wheel should be close to centered.
• Get a front-end alignment as soon as possible (same day if you can).
• Recheck the jam nut and stud nut for tightness after your first drive.

---

💰 DIY vs Shop Cost

Shop Cost: $200-$450 (parts + labor + basic alignment varies)

DIY Cost: $40-$120 (parts only)

You Save: $160-$330 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
