🔧 Q5 - Outer Tie Rod End Replacement

The outer tie rod end connects your steering rack to the steering knuckle at the wheel. Replacing it restores tight steering and fixes looseness/clunking caused by a worn ball joint.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours (one side)

---

⚠️ Safety & Precautions

• 🛑 Support your Q5 on jack stands; never rely on a jack.
• 🧤 Wear safety glasses; rust and debris fall when separating the joint.
• 🔥 Let brakes/suspension cool before working near them.
• 📏 A wheel alignment is strongly recommended after replacement to prevent tire wear.
• 🔋 Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 17mm socket
• 3/8" drive ratchet
• 1/2" drive breaker bar
• Torque wrench (20-200 Nm range)
• 21mm socket
• 22mm open-end wrench
• 6mm hex key socket
• Tie rod end puller (specialty)
• Needle-nose pliers
• Paint marker
• Tape measure (metric)
• Wire brush
• Penetrating oil
• Shop rags
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Outer tie rod end (Left or Right) - Qty: 1
• New self-locking nut for tie rod end stud - Qty: 1

---

📋 Before You Begin

• 🧭 Quick questions so I can give you the exact torque specs and the correct side-specific notes: is it the front-left or front-right tie rod end?
• 📝 Are you replacing only the outer tie rod end, or the complete tie rod (inner + outer)?
• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Before disassembly, spray the jam nut and threads with penetrating oil and let it soak 5–10 minutes.
• Use a paint marker to mark the tie rod end position on the threads. This helps you drive to an alignment shop safely.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen wheel bolts and raise the front corner

• Use a 17mm socket and breaker bar to loosen the wheel bolts about 1/2 turn.
• Lift the front corner with a floor jack and set it securely on jack stands.
• Remove the wheel bolts using a 17mm socket and take the wheel off.

Step 2: Mark the current toe setting (basic reference)

• Use a paint marker to mark the tie rod end and the exposed threads.
• Use a tape measure to measure from a fixed point on the tie rod end to the jam nut and write it down.
• This helps keep steering close until alignment.

Step 3: Loosen the jam nut

• Clean the threads with a wire brush and apply penetrating oil again if needed.
• Hold the tie rod (if needed) and loosen the jam nut using a 22mm open-end wrench.
• Crack it loose, but do not spin it far yet.

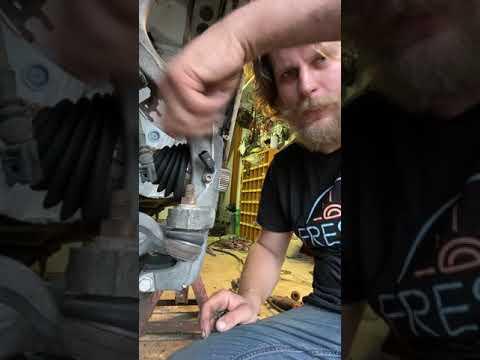

Step 4: Remove the tie rod end from the steering knuckle

• Remove the nut on the tie rod end stud using a 21mm socket.
• If the stud spins, hold the stud with a 6mm hex key socket while turning the nut with the 21mm socket.
• Install a tie rod end puller (specialty) and separate the stud from the knuckle.
• Don’t hammer the stud threads.

Step 5: Remove the old outer tie rod end

• Spin the outer tie rod end off the inner tie rod by hand.
• Count the exact number of turns it takes to remove it, and write that number down.

Step 6: Install the new outer tie rod end

• Thread the new tie rod end on using the same number of turns you counted during removal.
• Line up your paint marks and the measured reference you noted earlier.
• Insert the stud into the steering knuckle.
• Install the new self-locking nut and tighten using a 21mm socket.
• Torque to Audi specification for your side/variant using a torque wrench.

Step 7: Tighten the jam nut

• Hold the tie rod end so it doesn’t rotate and tighten the jam nut using a 22mm open-end wrench.
• Torque to Audi specification for your side/variant using a torque wrench where applicable.

Step 8: Reinstall the wheel

• Install the wheel and hand-thread the wheel bolts.
• Lower the Q5 and snug the bolts using a 17mm socket.
• Torque to 120 Nm (89 ft-lbs) using a torque wrench.

---

✅ After Repair

• 🧪 Turn the steering wheel lock-to-lock while parked and listen for any clunks or binding.
• 🛣️ Test drive at low speed first, steering straight, then light braking.
• 📏 Get a 4-wheel alignment as soon as possible.
• 👀 Recheck the jam nut area for any looseness after the first drive.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$550 (parts + labor + alignment)

DIY Cost: $40-$140 (parts only, alignment extra)

You Save: $110-$410 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
