🔧 Tie Rod End - Replacement

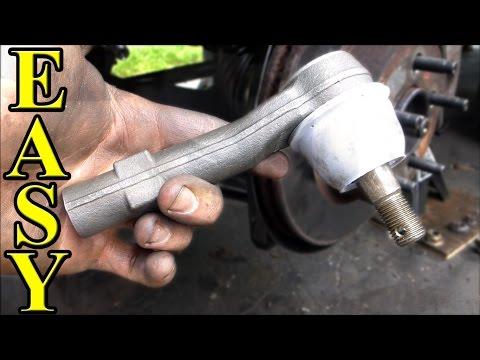

The outer tie rod end connects the steering rack to the steering knuckle and is a common wear item. Replacing it restores steering feel and helps fix looseness, clunks, or uneven tire wear.

Difficulty Level: Intermediate | Estimated Time: 1-2 hours

---

⚠️ Safety & Precautions

• Work on a flat, level surface and keep the parking brake engaged.
• Use jack stands; never rely on a floor jack alone.
• Keep hands clear of the steering and suspension when separating the tie rod end.
• Have the vehicle aligned after the repair. Even a small toe change can wear tires fast.
• If the vehicle has an electronic parking brake, make sure it is fully released before lifting.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated for vehicle weight)
• Wheel chocks
• Lug wrench
• Metric socket set
• Metric combination wrench set
• Torque wrench
• Needle nose pliers
• Side cutters
• Pry bar
• Pickle fork (specialty)
• Hammer
• Paint marker
• Safety glasses
• Nitrile gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Outer tie rod end - Qty: 1
• Outer tie rod end jam nut - Qty: 1
• Outer tie rod end cotter pin - Qty: 1

---

📋 Before You Begin

• Park on level ground and center the steering wheel.
• Loosen the front wheel lug nuts before lifting the vehicle.
• Mark the current tie rod end position so the new part starts close to the same toe setting.
• Get an alignment soon after repair.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and secure the front corner

• Use a floor jack (rated 3-ton minimum) to lift the front of the vehicle at the proper jacking point.
• Support it with jack stands (rated for vehicle weight).
• Remove the wheel with a lug wrench.

Step 2: Mark the tie rod position

• Use a paint marker to mark the tie rod threads and jam nut position.
• This helps keep the alignment close enough to drive safely to the shop.

Step 3: Remove the cotter pin and castle nut

• Use needle nose pliers or side cutters to remove the cotter pin from the tie rod stud.
• Use the correct metric socket or metric wrench to remove the castle nut.
• Torque on reassembly: Tighten to factory specification.

Step 4: Separate the tie rod end from the knuckle

• Use a pickle fork (specialty) or a ball joint separator tool (specialty) to break the taper loose.
• If needed, tap the knuckle lightly with a hammer while applying upward pressure.
• Do not hit the stud threads.

Step 5: Loosen the jam nut

• Use a metric combination wrench to loosen the jam nut on the inner tie rod.
• Count the turns as you remove the old tie rod end.

Step 6: Remove the old tie rod end

• Spin the tie rod end off by hand.
• If it is tight, use a metric combination wrench on the flats of the tie rod end.
• Match the new part to the same thread count or turn count for a close starting point.

Step 7: Install the new tie rod end

• Screw the new outer tie rod end onto the inner tie rod the same number of turns.
• Thread the jam nut snug but do not fully torque it yet.
• Insert the stud into the steering knuckle.

Step 8: Tighten fasteners

• Use a metric socket or metric wrench to tighten the castle nut to factory specification.
• Align the castle nut slot with the hole in the stud, then install a new cotter pin.
• Use a torque wrench to tighten the jam nut to factory specification.

Step 9: Reinstall the wheel and lower the vehicle

• Install the wheel and snug the lug nuts with a lug wrench.
• Lower the vehicle with the floor jack and remove the jack stands.
• Torque the lug nuts with a torque wrench to factory specification.

---

✅ After Repair

• Start the vehicle and turn the steering wheel lock-to-lock while parked.
• Check that the steering wheel is centered.
• Listen for clunks or binding during a slow test drive.
• Schedule a professional front-end alignment as soon as possible.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$350 (parts + labor)

DIY Cost: $35-$90 (parts only)

You Save: $145-$260 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1-2 hours.

---
