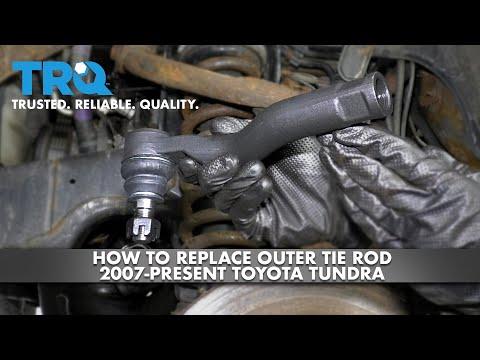

🔧 Tundra - Tie Rod End Replacement

Replacing the outer tie rod end restores steering feel and helps eliminate clunks, looseness, and tire wear. On your Tundra, the steering alignment will change after this repair, so a wheel alignment is required when you’re done.

Difficulty Level: Intermediate | Estimated Time: 1.5-2.5 hours

---

⚠️ Safety & Precautions

• Support the truck securely with jack stands before removing any steering parts.
• Do not let the steering knuckle hang by the brake hose or ABS wire.
• The front end must be aligned after replacement.
• If your truck has active steering assistance or ABS wires routed nearby, keep them clear while working.
• Battery disconnect is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated for truck weight)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• 19mm socket
• 21mm socket
• 22mm wrench
• Torque wrench
• Pliers
• Tie rod end puller (specialty)
• Paint marker
• Penetrating oil

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Outer tie rod end - Qty: 1
• Outer tie rod end cotter pin - Qty: 1
• Grease - Qty: 1 tube

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Loosen the front wheel lug nuts slightly before lifting.
• Keep the steering wheel centered so the new part goes back close to the same position.
• Use a paint marker to mark the tie rod position before removal.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and secure the truck

• Use a floor jack to lift the front of the truck.
• Place jack stands under the frame and lower the truck onto them.
• Remove the front wheel with a 21mm socket.

Step 2: Soak and mark the old tie rod end

• Spray penetrating oil on the jam nut and tie rod end stud.
• Use a paint marker to mark the tie rod end position on the inner tie rod.
• This helps keep the toe setting close enough to drive to alignment.

Step 3: Remove the cotter pin and nut

• Use pliers to straighten and pull out the cotter pin.
• Use a 21mm socket to remove the castle nut from the steering knuckle.
• Keep the nut handy if threads are rusty.

Step 4: Separate the tie rod end from the knuckle

• Use a tie rod end puller (specialty) to press the stud out of the steering knuckle.
• Do not hammer on the knuckle if you can avoid it.
• Once free, swing the tie rod end away from the knuckle.

Step 5: Loosen the jam nut

• Use a 22mm wrench to loosen the jam nut on the inner tie rod.
• Count the turns as you spin the old tie rod end off.
• This gives you a close starting point for the new part.

Step 6: Install the new tie rod end

• Spin the new tie rod end onto the inner tie rod the same number of turns as the old one.
• Align the stud with the steering knuckle and insert it fully.
• Install the new castle nut by hand first, then tighten with a 21mm socket.
• Torque to 91 Nm (67 ft-lbs).

Step 7: Tighten the jam nut

• Hold the tie rod end body and tighten the jam nut with a 22mm wrench.
• Torque to 74 Nm (55 ft-lbs).
• Recheck that the tie rod end is threaded on straight.

Step 8: Install the cotter pin

• Insert a new cotter pin through the castle nut and stud.
• Use pliers to bend the ends so it cannot back out.
• Never reuse an old cotter pin.

Step 9: Reinstall the wheel and lower the truck

• Put the wheel back on and snug the lug nuts with a 21mm socket.
• Lower the truck with the floor jack.
• Torque the lug nuts to 131 Nm (97 ft-lbs) in a star pattern.

---

✅ After Repair

• Start the truck and turn the steering wheel lock-to-lock slowly.
• Check that the boot and joint move smoothly with no binding.
• Drive only a short distance to a tire shop for a professional alignment.
• If the steering wheel is off-center, the alignment shop will correct it.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $40-$90 (parts only)

You Save: $160-$360 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
