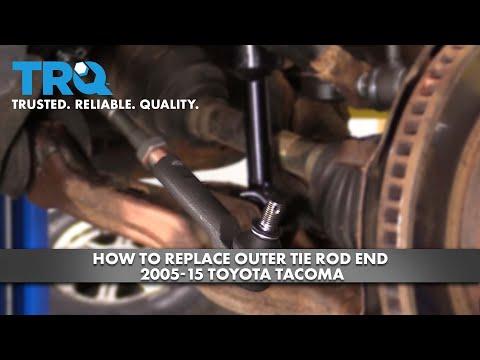

🔧 Tie Rod End - Replacement

This guide covers the outer tie rod end on your Tacoma. The outer end connects the steering rack to the front wheel knuckle, so worn parts can cause loose steering, tire wear, and clunks over bumps.

Difficulty Level: Intermediate | Estimated Time: 1.5-2.5 hours

---

⚠️ Safety & Precautions

• Work on level ground and set the parking brake.
• Chock the rear wheels before lifting the front.
• Support the Tacoma with jack stands before reaching under it.
• Do not drive far after this repair until the front end is aligned.
• If the steering wheel is turned while the tie rod is disconnected, the clockspring can be damaged.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands
• Wheel chocks
• 21mm lug wrench or socket
• 17mm socket
• 19mm wrench
• 19mm socket
• Torque wrench
• Tie rod end puller (specialty)
• Needle-nose pliers
• Paint marker
• Tape measure
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Outer tie rod end - Qty: 1
• Cotter pin - Qty: 1

---

📋 Before You Begin

• Park on level ground with the steering wheel centered.
• Loosen the front lug nuts slightly before lifting.
• Mark the old tie rod position with a paint marker to help preserve toe setting.
• Get a professional alignment after the repair.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the front wheel

• Use a 21mm lug wrench or socket to loosen the front wheel lug nuts 1/2 turn.
• Do not remove them yet.

Step 2: Raise and secure the truck

• Use a floor jack (rated 3-ton minimum) to lift the front of the Tacoma at the proper lift point.
• Place jack stands under the frame and lower the truck onto them.
• Remove the wheel with the 21mm lug wrench or socket.

Step 3: Mark the tie rod position

• Use a paint marker to mark the jam nut and the tie rod end location.
• This helps keep the alignment close enough to drive to the shop.

Step 4: Remove the cotter pin and castle nut

• Use needle-nose pliers to pull the cotter pin from the tie rod stud.
• Use a 19mm socket to remove the castle nut from the stud.
• Keep one hand on the knuckle.

Step 5: Separate the tie rod end

• Use a tie rod end puller (specialty) to pop the stud out of the steering knuckle.
• If the stud is stuck, tighten the puller evenly until it releases.
• Do not hammer directly on the stud threads.

Step 6: Remove the outer tie rod end

• Use a 19mm wrench to hold the jam nut.
• Use a 17mm socket to loosen the outer tie rod end from the inner tie rod.
• Count the turns as you remove it, or match the paint marks closely.

Step 7: Install the new tie rod end

• Thread the new outer tie rod end on the same number of turns you counted during removal.
• Use a 19mm wrench to hold the jam nut and a 17mm socket to tighten the end into place.
• Torque the jam nut to 74 Nm (55 ft-lbs).

Step 8: Attach the tie rod end to the knuckle

• Insert the stud into the steering knuckle.
• Use a 19mm socket to install the castle nut.
• Torque the castle nut to 91 Nm (67 ft-lbs).
• Align the slots in the nut with the hole in the stud, then install a new cotter pin with needle-nose pliers.

Step 9: Reinstall the wheel

• Put the wheel back on and start the lug nuts by hand.
• Lower the Tacoma slightly so the tire just touches the ground.
• Use a 21mm lug wrench or socket to tighten the lug nuts in a star pattern.
• Torque the lug nuts to 113 Nm (83 ft-lbs).

Step 10: Final check

• Turn the steering wheel lock-to-lock and check for smooth movement.
• Make sure the cotter pin is secure and nothing rubs.
• Schedule an alignment right away.

---

✅ After Repair

• Test drive slowly and listen for clunks or looseness.
• Check that the steering wheel is centered on a straight road.
• Get a front-end alignment as soon as possible.
• Recheck lug nut torque after the first drive.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$320 (parts + labor)

DIY Cost: $35-$90 (parts only)

You Save: $145-$230 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1-2 hours.

---
