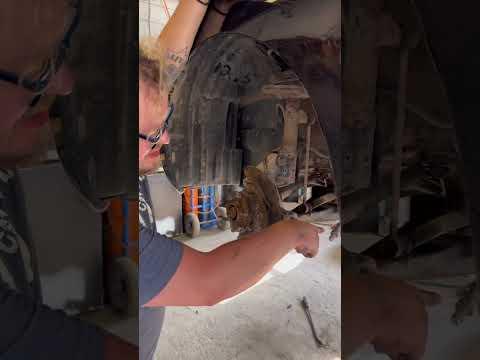

🔧 Tie Rod End - Replacement

Replacing the outer tie rod end restores steering feel and removes looseness, clunking, or uneven tire wear caused by a worn joint. On your Prius C, this repair also requires a wheel alignment afterward so the steering stays straight and the tires do not wear out early.

Difficulty Level: Intermediate | Estimated Time: 1.5-2.5 hours

---

⚠️ Safety & Precautions

• Work on level ground and chock the rear wheels before lifting the front.
• Support the car with jack stands; never rely on a jack alone.
• Keep hands clear of the steering knuckle and suspension while loosening the tie rod end.
• An alignment is required after this repair.
• No battery disconnect is required for this job.
• Do not turn the steering wheel with the tie rod disconnected.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands
• Wheel chocks
• Safety glasses
• Mechanic gloves
• 21mm lug wrench or socket
• 12mm wrench
• 17mm wrench
• 19mm wrench
• Torque wrench
• Needle-nose pliers
• Ball joint separator (specialty)
• Paint marker
• Penetrating oil
• Measuring tape

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Outer tie rod end - Qty: 1
• Outer tie rod end lock nut - Qty: 1
• Cotter pin - Qty: 1

---

📋 Before You Begin

• Park on a level surface and set the parking brake.
• Center the steering wheel before lifting the car.
• Spray penetrating oil on the tie rod end nut and jam nut if they are rusty.
• Mark the old position before removal.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the front wheel lug nuts

• Use a 21mm lug wrench or socket to loosen the front wheel lug nuts 1/4 turn while the tire is still on the ground.
• Do not remove them yet.

Step 2: Raise and support the front of the car

• Use a floor jack (rated 3-ton minimum) to lift the front of the car at the proper lift point.
• Set the car securely on jack stands.
• Remove the wheel with the 21mm lug wrench or socket.

Step 3: Mark the old tie rod position

• Use a paint marker to mark the location of the outer tie rod end on the inner tie rod threads.
• Count the exposed threads or measure the old length with a measuring tape.
• Good marking helps preserve toe setting.

Step 4: Remove the cotter pin and tie rod end nut

• Use needle-nose pliers to straighten and pull out the cotter pin from the tie rod stud.
• Use a 19mm wrench to remove the castle nut from the stud.

Step 5: Separate the tie rod end from the steering knuckle

• Use a ball joint separator (specialty) to pop the stud out of the steering knuckle.
• If the joint is stuck, apply more penetrating oil and work the separator carefully.
• A sharp strike can help, but aim carefully.

Step 6: Remove the outer tie rod end

• Use a 17mm wrench to loosen the jam nut on the inner tie rod.
• Spin the outer tie rod end off the inner tie rod, counting the turns as you remove it.
• Match the number of turns when installing the new part.

Step 7: Install the new tie rod end

• Thread the new outer tie rod end onto the inner tie rod the same number of turns as the old one.
• Insert the stud into the steering knuckle.
• Install the new outer tie rod end lock nut and tighten it with a 19mm wrench.
• Torque to Toyota factory specification.

Step 8: Tighten the jam nut

• Use a 17mm wrench to tighten the jam nut against the outer tie rod end.
• Torque to Toyota factory specification.
• Make sure the tie rod end did not twist while tightening.

Step 9: Install the cotter pin

• If the nut slot does not line up, tighten slightly until it does.
• Use needle-nose pliers to install the new cotter pin through the stud.
• Spread the ends of the cotter pin securely.

Step 10: Reinstall the wheel and lower the car

• Reinstall the wheel and snug the lug nuts with the 21mm lug wrench or socket.
• Lower the car with the floor jack (rated 3-ton minimum).
• Torque the lug nuts to Toyota factory specification.

---

✅ After Repair

• Start the car and slowly turn the steering wheel lock-to-lock while parked.
• Check that there is no clicking, binding, or looseness.
• Drive slowly at first and confirm the steering wheel is close to centered.
• Schedule a front-end alignment as soon as possible.
• Uneven steering wheel position means alignment is needed.

---

💰 DIY vs Shop Cost

Shop Cost: ₹6,000-₹12,000 (parts + labor)

DIY Cost: ₹1,500-₹4,000 (parts only)

You Save: ₹4,500-₹8,000 by doing it yourself!

Shop labor rates vary but typically run ₹3,000-₹6,000/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
