🔧 Outback - Outer Tie Rod End Replacement

The outer tie rod end connects your steering rack to the steering knuckle at the wheel. Replacing it restores safe steering feel and lets you correct toe alignment (tire wear).

Difficulty Level: Intermediate | Estimated Time: 1-2 hours (one side)

---

⚠️ Safety & Precautions

• 🛑 Support your Outback on jack stands—never rely on a floor jack alone.
• 🛑 Chock the rear wheels and keep the transmission in P.
• 🛑 Keep fingers clear of pinch points when separating the tie rod from the knuckle.
• 🛑 If you use a “pickle fork,” it can tear the rubber boot. A puller is safer for the boot.
• 🛑 No battery disconnect is required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• Breaker bar 1/2" drive
• 19mm socket
• 3/8" drive ratchet
• 14mm socket
• 17mm socket
• Torque wrench (10-200 Nm range)
• Needle-nose pliers
• Side cutters
• Hammer (16 oz)
• Penetrating oil
• Paint marker
• Tape measure (metric)
• Tie rod end puller (specialty)
• Pickle fork ball joint separator (specialty)
• Open-end wrench 19mm
• Open-end wrench 22mm

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Outer tie rod end - Qty: 1
• Cotter pin - Qty: 1
• Anti-seize compound - Qty: 1

---

📋 Before You Begin

• Park on level ground, steering wheel straight, and apply the parking brake.
• Place wheel chocks behind both rear wheels.
• Use a paint marker to mark the tie rod end and the jam nut position on the threads. This helps keep alignment close.
• Plan on getting an alignment afterward.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the wheel lug nuts

• Use a 19mm socket and breaker bar 1/2" drive to loosen the front wheel lug nuts about 1/2 turn.

Step 2: Lift and support the front corner

• Use a floor jack to lift at the front jacking point.
• Set the vehicle onto jack stands (rated 2-ton minimum) at a solid support point.
• Remove the wheel with a 19mm socket and 3/8" drive ratchet.

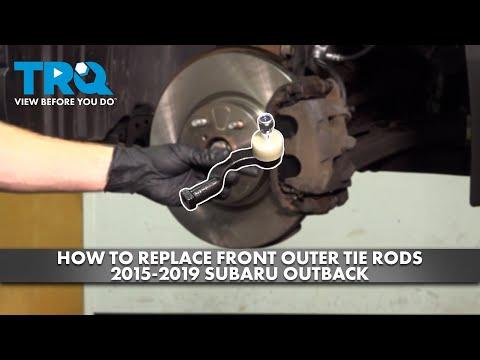

Step 3: Locate the outer tie rod end

• The outer tie rod end is the small joint that goes from the steering linkage to the steering knuckle, near the brake rotor.
• Spray the jam nut area and the stud nut area with penetrating oil.

Step 4: Remove the cotter pin

• Straighten and pull the cotter pin using needle-nose pliers.
• If it breaks, cut it out with side cutters.

Step 5: Remove the tie rod end nut from the knuckle

• Remove the castellated nut (castle nut) using a 17mm socket and 3/8" drive ratchet.
• If the stud spins, press up on the tie rod end while loosening, or use a tie rod end puller (specialty) to hold tension.

Step 6: Separate the tie rod end from the steering knuckle

• Preferred method: Install a tie rod end puller (specialty) and tighten it until the stud “pops” free.
• Alternate method: Use a pickle fork ball joint separator (specialty) and a hammer (16 oz) to drive it in until separated. This may damage the boot.

Step 7: Mark and loosen the jam nut

• The jam nut is the nut behind the outer tie rod end on the threaded rod.
• Hold the inner rod with an open-end wrench 22mm (as needed) and loosen the jam nut with an open-end wrench 19mm.
• Use a paint marker to add a clear line across the jam nut and threads.

Step 8: Count turns and remove the old tie rod end

• Spin the old tie rod end off by hand and count the exact number of turns it takes to come off.
• Write the number down. This helps keep your toe close enough to drive to an alignment shop.

Step 9: Install the new outer tie rod end

• Apply a thin film of anti-seize compound to the threads (avoid getting it on the stud taper).
• Thread the new tie rod end on the same number of turns you counted.
• Insert the stud into the steering knuckle by hand.

Step 10: Tighten the stud nut and install a new cotter pin

• Tighten the castle nut using a 17mm socket and torque wrench: Torque to 35 Nm (26 ft-lbs).
• Continue tightening slightly as needed to align the castle nut slot with the cotter pin hole. Do not loosen to align.
• Install a new cotter pin using needle-nose pliers and bend the ends over.

Step 11: Tighten the jam nut

• Hold the tie rod end with an open-end wrench 22mm (as needed) and tighten the jam nut with an open-end wrench 19mm.
• Torque to 55 Nm (41 ft-lbs).

Step 12: Reinstall the wheel

• Reinstall the wheel and hand-thread the lug nuts.
• Lower the vehicle off the jack stands using the floor jack.
• Tighten lug nuts in a star pattern using a 19mm socket and torque wrench: Torque to 120 Nm (89 ft-lbs).

---

✅ After Repair

• Start the engine and slowly turn the steering wheel lock-to-lock to confirm nothing binds or clunks.
• Road test at low speed first, then normal speed. The steering wheel may be slightly off-center until aligned.
• Get a professional 4-wheel alignment as soon as possible to prevent tire wear.
• Recheck the castle nut cotter pin and the jam nut after a short drive.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$350 (parts + labor + alignment varies)

DIY Cost: $35-$90 (parts only)

You Save: $145-$260 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
