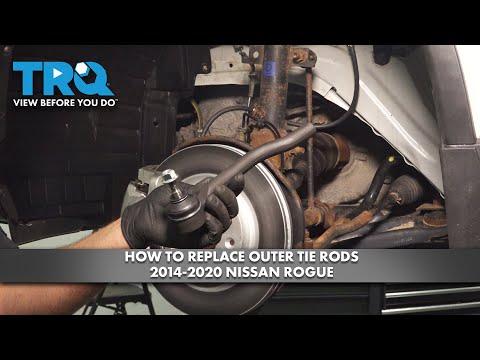

🔧 Rogue - Outer Tie Rod End Replacement

The outer tie rod end connects your steering rack to the steering knuckle and lets the front wheel steer. Replacing it is straightforward, but you must keep the toe setting close and get an alignment afterward to prevent tire wear and pulling.

Difficulty Level: Intermediate | Estimated Time: 1-2 hours (one side)

Assumption: Common Rogue (T32) outer tie rod hardware; verify torque specs if your parts differ.

---

⚠️ Safety & Precautions

• 🛑 Support the Rogue on jack stands—never rely on a floor jack alone.
• 🧤 Wear safety glasses; rust and dirt fall when separating the joint.
• 🧯 Keep fingers clear when using a puller; the joint can “pop” loose suddenly.
• 🔧 Plan for an alignment after replacement; “counting turns” is only to get you close.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Lug nut socket 21mm
• Breaker bar 1/2"
• Torque wrench 3/8" (10-80 ft-lbs)
• Torque wrench 1/2" (50-200 ft-lbs)
• Open-end wrench 19mm
• Open-end wrench 22mm
• Needle-nose pliers
• Side cutters
• Tie rod end puller (specialty)
• Wire brush
• Paint marker
• Penetrating oil
• Measuring tape
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Outer tie rod end - Qty: 1
• Cotter pin - Qty: 1
• Anti-seize compound - Qty: 1
• Threadlocker (medium strength) - Qty: 1

---

📋 Before You Begin

• 🅿️ Park on level ground, wheels straight, and set the parking brake.
• 🧱 Place wheel chocks behind the rear wheels.
• 🧼 Use a wire brush to clean the exposed threads and the jam nut area.
• 🖊️ Mark the tie rod and jam nut position with a paint marker so you can reassemble close to the old alignment.
• 📏 Optional but helpful: measure from the center of the tie rod stud to a fixed point on the inner tie rod, and write it down using a measuring tape.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and remove the front wheel

• Use a 21mm lug nut socket and breaker bar 1/2" to loosen the lug nuts 1/2 turn while the Rogue is on the ground.
• Lift with a floor jack (rated 3-ton minimum) and support the vehicle with jack stands (rated 3-ton minimum).
• Remove the lug nuts with the 21mm lug nut socket and take the wheel off.

Step 2: Loosen the tie rod jam nut

• Spray the jam nut/threads with penetrating oil.
• Hold the inner tie rod area steady and loosen the jam nut using an open-end wrench 22mm (some parts may use 19mm; use what fits your jam nut).
• Only “crack it loose” 1/4–1/2 turn. Do not spin it far yet.
• Jam nut locks toe adjustment in place.

Step 3: Remove the cotter pin and loosen the castle nut

• Straighten and remove the cotter pin using needle-nose pliers and side cutters.
• Use an open-end wrench 19mm to loosen and remove the tie rod end castle nut.
• If the stud spins, apply upward pressure under the joint by hand while loosening with the 19mm wrench.
• Cotter pin is a “safety lock” for the nut.

Step 4: Separate the tie rod end from the steering knuckle

• Install a tie rod end puller (specialty) and tighten it until the taper “pops” free from the knuckle.
• Do not hit the threaded stud directly; you can damage the threads.
• A puller presses the joint apart safely.

Step 5: Remove the outer tie rod end (count the turns)

• Use a paint marker to add a clear reference mark on the threads if needed.
• Spin the outer tie rod end off by hand and count the exact number of turns until it comes off.
• Write the number down (example: 17.5 turns). This helps keep alignment close.

Step 6: Install the new outer tie rod end

• Apply a light coat of anti-seize compound to the threads (avoid the tapered stud).
• Thread the new tie rod end on the inner tie rod by the same number of turns you counted during removal.
• Align the stud with the knuckle and seat the taper fully.

Step 7: Torque the tie rod end nut and install a new cotter pin

• Install the castle nut and tighten using an open-end wrench 19mm.
• Torque to 55 Nm (41 ft-lbs).
• If the cotter pin hole doesn’t line up, tighten the nut slightly more until it aligns (do not loosen to align).
• Install a new cotter pin using needle-nose pliers, then bend the legs over securely.

Step 8: Tighten the jam nut

• Apply a small amount of threadlocker (medium strength) to the jam nut threads if desired.
• Hold the tie rod end so it doesn’t rotate and tighten the jam nut using an open-end wrench 22mm.
• Torque to 55 Nm (41 ft-lbs).

Step 9: Reinstall the wheel

• Reinstall the wheel and hand-thread the lug nuts.
• Lower the Rogue to the ground using the floor jack (rated 3-ton minimum).
• Use a torque wrench 1/2" with a 21mm lug nut socket to tighten lug nuts in a star pattern: Torque to 113 Nm (83 ft-lbs).

---

✅ After Repair

• 🧪 Start the Rogue and turn the steering wheel lock-to-lock while stopped; listen for clunks and confirm smooth movement.
• 🚗 Test drive slowly and confirm the steering wheel is centered and the vehicle tracks straight.
• 🛞 Get a professional alignment as soon as possible (recommended immediately) to prevent rapid tire wear.
• 🔍 Recheck the castle nut and cotter pin seating after the test drive (visual check).

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor + basic alignment varies)

DIY Cost: $40-$120 (parts only)

You Save: $130-$410 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
