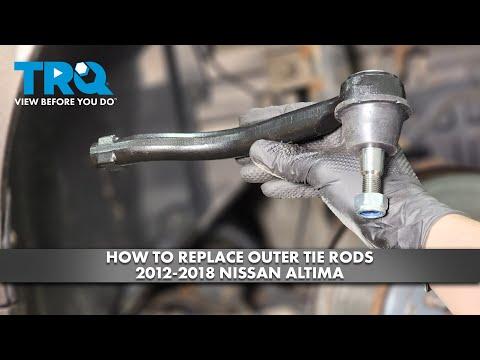

🔧 Altima - Outer Tie Rod End Replacement

The outer tie rod end connects your steering rack to the steering knuckle and allows the front wheel to turn left/right. Replacing it is straightforward, but you must keep your alignment as close as possible and then get a professional alignment afterward.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours (one side)

---

⚠️ Safety & Precautions

• 🛑 Support your Altima on jack stands—never rely on a jack alone.
• 🛑 Keep the steering wheel centered and the key off while working.
• 🛑 After replacement, get a front-end alignment; driving without it can cause tire wear and poor handling.
• 🛑 Use a new cotter pin on the tie rod end nut.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 21mm socket
• 1/2" breaker bar
• 1/2" torque wrench (20-150 ft-lbs range)
• 17mm socket
• 22mm open-end wrench
• Adjustable wrench
• Needle-nose pliers
• Side cutters
• Tie rod end puller (specialty)
• Paint marker
• Tape measure
• Penetrating oil
• Wire brush
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Outer tie rod end - Qty: 1
• Cotter pin - Qty: 1

---

📋 Before You Begin

• Park on level ground, straighten the steering wheel, and set the parking brake.
• Chock the rear wheels using wheel chocks.
• Loosen the front wheel lug nuts 1/2 turn using a 21mm socket and breaker bar before lifting.
• Plan for an alignment after the repair. You’ll do a “close-enough” install by counting turns.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and remove the wheel

• Lift the front corner with a floor jack and place the car securely on jack stands.
• Remove the lug nuts with a 21mm socket and remove the wheel.

Step 2: Locate the outer tie rod end and mark your baseline

• Find the outer tie rod end at the back of the steering knuckle (it has a stud and nut going down into the knuckle).
• Clean the threads at the jam nut area using a wire brush.
• Use a paint marker to mark the position of the jam nut against the tie rod, so you can reinstall close to the same alignment.
• Tip: Take a clear photo before disassembly.

Step 3: Loosen the jam nut

• Spray the threads with penetrating oil and wait a few minutes.
• Hold the inner tie rod/flat area with an adjustable wrench as needed.
• Loosen the jam nut using a 22mm open-end wrench (do not fully remove it yet).

Step 4: Remove the cotter pin and loosen the tie rod end nut

• Straighten and remove the cotter pin using needle-nose pliers and side cutters.
• Remove the tie rod end nut using a 17mm socket.

Step 5: Separate the tie rod end from the steering knuckle

• Install and tighten a tie rod end puller (specialty) until the stud pops free from the knuckle taper.
• Once separated, lift the tie rod end stud out of the knuckle.
• Tip: Keep fingers clear when it releases.

Step 6: Count turns and remove the old tie rod end

• Spin the outer tie rod end off the threaded inner tie rod by hand.
• Count the exact number of turns it takes to remove it (write it down). This helps keep toe alignment close.

Step 7: Install the new tie rod end (same turn count)

• Thread the new outer tie rod end onto the inner tie rod with the same number of turns you counted.
• Snug the jam nut by hand against the new tie rod end.

Step 8: Seat the stud into the knuckle and torque the nut

• Insert the tie rod end stud into the steering knuckle.
• Install the new nut and tighten using a 17mm socket and torque wrench.
• Torque to 35 Nm (26 ft-lbs), then tighten further only as needed to align the cotter pin hole.
• Install a new cotter pin using needle-nose pliers and bend the ends over.

Step 9: Torque the jam nut

• Hold the tie rod to prevent twisting using an adjustable wrench.
• Tighten the jam nut using a 22mm open-end wrench.
• Torque to 55 Nm (41 ft-lbs)

Step 10: Reinstall the wheel and torque lug nuts

• Reinstall the wheel and hand-thread the lug nuts.
• Lower the car off the jack stands using the floor jack.
• Tighten lug nuts in a star pattern with a 21mm socket and torque wrench.
• Torque to 113 Nm (83 ft-lbs)

---

✅ After Repair

• Turn the steering wheel lock-to-lock with the engine running and verify there’s no binding or clunking.
• Road test at low speed first; confirm the steering wheel stays centered and the car tracks straight.
• Schedule a front-end alignment as soon as possible.
• Recheck the cotter pin and look for any looseness after your first short drive.

---

💰 DIY vs Shop Cost

Shop Cost: $220-$450 (parts + labor + alignment)

DIY Cost: $35-$120 (parts only)

You Save: $100-$300 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
