🔧 Rio - Outer Tie Rod End Replacement

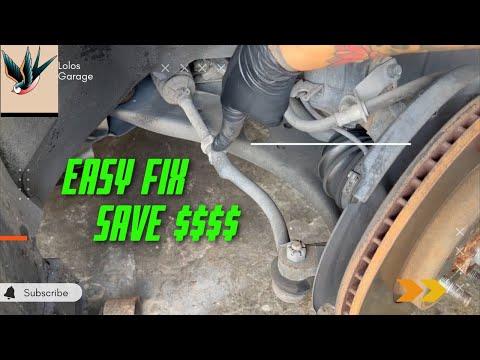

The outer tie rod end connects your steering rack to the front steering knuckle and lets the wheel turn. Replacing it is straightforward, but you must keep the new one threaded in the same position so the alignment stays close enough to drive to an alignment shop.

Difficulty Level: Intermediate | Estimated Time: 1-2 hours (one side)

Assumption: Front outer tie rod end replacement; torque specs can vary by production—verify if your parts/manual differs.

---

⚠️ Safety & Precautions

• ⚠️ Support the car with jack stands; never rely on a floor jack alone.
• ⚠️ Keep hands clear when separating the tie rod taper; it can “pop” loose suddenly.
• ⚠️ Do not reuse the old cotter pin; always install a new one.
• ⚠️ Get a professional alignment after replacement to prevent tire wear and pulling.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 21mm socket
• 1/2" drive breaker bar
• 3/8" drive ratchet
• Torque wrench (10-150 ft-lbs range)
• 17mm combination wrench
• 19mm combination wrench
• 22mm combination wrench
• Needle-nose pliers
• Diagonal cutters
• Tie rod end puller (specialty)
• Hammer (16 oz)
• Penetrating oil
• Paint marker
• Tape measure
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Outer tie rod end - Qty: 1
• Cotter pin (tie rod end) - Qty: 1
• Jam nut (tie rod end lock nut) - Qty: 1 (if not reusable)
• Anti-seize compound - Qty: 1 (small pack)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Loosen the front wheel lug nuts slightly before lifting the car.
• Spray penetrating oil on the tie rod end nut, cotter pin area, and the jam nut threads; let it soak 5-10 minutes.
• Plan on getting an alignment immediately after (same day if possible).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen lug nuts and lift the front corner

• Use a 21mm socket and breaker bar to loosen the lug nuts 1/2 turn (do not remove yet).
• Lift the front corner with a floor jack and support it with jack stands.
• Remove the wheel using the 21mm socket.

Step 2: Mark the tie rod position (critical for “close” alignment)

• Use a paint marker to mark the relationship between the jam nut and the inner tie rod threads.
• Use a tape measure to measure from the end of the tie rod end to a fixed point on the inner tie rod, and write it down.
• Also count the exact number of turns it takes to remove the old tie rod end later.
• This helps keep toe close enough to drive.

Step 3: Remove the cotter pin and loosen the castle nut

• Straighten and remove the cotter pin with needle-nose pliers (use diagonal cutters if it’s seized).
• Loosen (but do not fully remove yet) the tie rod end nut using a 17mm or 19mm combination wrench (size varies by brand/part).

Step 4: Separate the tie rod end from the steering knuckle

• Install the tie rod end puller (specialty) and tighten it until the taper pops loose.
• If needed, tap the side of the knuckle near the stud with a hammer while tension is on the puller (do not hit the stud threads).
• Once separated, remove the nut completely with the 17mm or 19mm combination wrench.
• A puller protects boots and threads.

Step 5: Break the jam nut loose

• Hold the inner tie rod section (if needed) and loosen the jam nut using a 22mm combination wrench (size may vary).
• Back the jam nut off a few turns, but keep it on the threads.

Step 6: Remove the old tie rod end (count turns)

• Unscrew the outer tie rod end by hand while counting turns (example: 17.5 turns). Write it down.
• Remove it completely.

Step 7: Install the new tie rod end

• Apply a light coat of anti-seize compound to the inner tie rod threads (avoid getting it on the tapered stud).
• Screw the new tie rod end on the exact same number of turns you counted.
• Align it so the stud drops cleanly into the steering knuckle hole.

Step 8: Torque the tie rod end nut and install a new cotter pin

• Install the new nut and tighten with a 17mm or 19mm combination wrench.
• Torque to 35-45 Nm (26-33 ft-lbs).
• If the cotter pin hole doesn’t line up, tighten slightly more until it aligns (never loosen to align).
• Install a new cotter pin using needle-nose pliers and bend the ends over securely.

Step 9: Tighten the jam nut

• Hold the outer tie rod end so it doesn’t rotate, then tighten the jam nut using a 22mm combination wrench.
• Torque to 55-75 Nm (41-55 ft-lbs).

Step 10: Reinstall the wheel and lower the car

• Reinstall the wheel and hand-thread all lug nuts.
• Lower the car off the jack stands using the floor jack.
• Tighten lug nuts in a star pattern using a torque wrench.
• Torque to 90-110 Nm (66-81 ft-lbs).

---

✅ After Repair

• Start the car and turn the steering wheel lock-to-lock while parked; listen for clunks and make sure the boot isn’t twisted.
• Road test at low speed first; confirm the steering wheel is centered and it tracks straight.
• Get a 4-wheel alignment as soon as possible (outer tie rod changes toe).
• Recheck the tie rod end nut/cotter pin and jam nut visually after the test drive.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$350 (parts + labor + alignment varies)

DIY Cost: $25-$90 (parts only)

You Save: $155-$260 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
