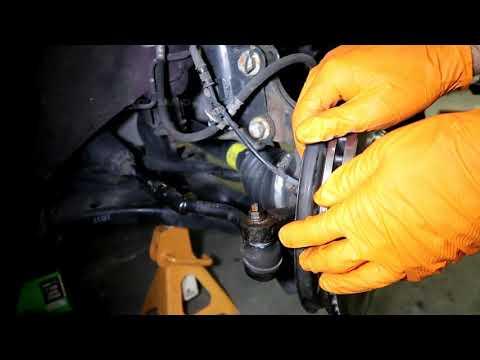

🔧 Optima - Outer Tie Rod End Replacement

The outer tie rod end connects your steering rack to the steering knuckle, and it’s a common wear item that can cause looseness, clunks, or uneven tire wear. The key to a smooth DIY job is removing the tapered stud safely and reinstalling the new tie rod end at the same approximate length so the alignment is close enough to drive to an alignment shop.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours (one side)

---

⚠️ Safety & Precautions

• 🛑 Support the car with jack stands; never rely on a floor jack alone.
• 🧤 Wear safety glasses—rust and dirt fall when separating the joint.
• 🧱 Chock the rear wheels and keep the steering wheel centered.
• 🔋 No high-voltage hybrid service is required for this repair, but keep tools away from orange HV cables if you see them underbody.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum, pair)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• 21mm socket
• 1/2" drive breaker bar
• 1/2" drive torque wrench (20-150 ft-lbs)
• Needle-nose pliers
• Diagonal cutters
• 17mm wrench
• 22mm wrench
• Adjustable wrench (12")
• Tie rod end puller (specialty)
• Wire brush
• Paint marker
• Tape measure (metric)
• Penetrating oil

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Outer tie rod end - Qty: 1
• Cotter pin (tie rod end) - Qty: 1
• Self-locking/castle nut (tie rod end) - Qty: 1
• Anti-seize compound - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear tires.
• Point the front wheels straight ahead and leave the steering wheel centered.
• Spray penetrating oil on the tie rod end jam nut threads and the stud/nut area; let it soak 5–10 minutes.
• Tip: Take a quick photo of the tie rod end orientation.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Assumption: Torque values can vary by build; verify with OEM service info if available. Below are common Optima platform specs used for safe reassembly.

Step 1: Loosen the wheel lug nuts

• Use a 21mm socket and breaker bar to crack the lug nuts loose about 1/4 turn while the tire is still on the ground.

Step 2: Lift and support the front corner

• Lift the front corner with a floor jack (rated 2-ton minimum) at the proper jacking point.
• Set the car down onto jack stands (rated 2-ton minimum, pair).
• Give the car a firm push to confirm it’s stable before working.

Step 3: Remove the wheel

• Remove the lug nuts with the 21mm socket and take the wheel off.

Step 4: Mark the tie rod end position (so alignment is close)

• Use a paint marker to mark the tie rod end and the threaded inner tie rod where they meet.
• Use a tape measure (metric) to record the distance from the jam nut to the end of the threads (write it down).
• Tip: Also count the turns when you remove it.

Step 5: Loosen the jam nut

• Hold the inner tie rod with an adjustable wrench (12") if needed.
• Use a 22mm wrench to loosen the jam nut (it may be tight and rusty). Back it off 1–2 turns, but do not move it far.

Step 6: Remove the cotter pin and castle nut

• Straighten and remove the cotter pin using needle-nose pliers and/or diagonal cutters.
• Use a 17mm wrench to remove the castle nut from the tie rod stud.

Step 7: Separate the tie rod end from the steering knuckle

• Install a tie rod end puller (specialty) over the joint and tighten it until the tapered stud “pops” free.
• If it’s stubborn, re-apply penetrating oil and try again.
• Tip: Keep fingers clear when it releases.

Step 8: Unscrew the old tie rod end

• Spin the tie rod end off by hand while counting turns (example: “16.5 turns”).
• Use a wire brush to clean exposed threads if they’re crusty.

Step 9: Install the new tie rod end

• Apply a light coat of anti-seize compound to the threads (avoid getting it on the stud taper).
• Thread the new tie rod end on the exact same number of turns you counted during removal.
• Line it up so the stud drops cleanly into the steering knuckle hole (same orientation as the old one).

Step 10: Torque the tie rod end nut and install the cotter pin

• Install the new nut and tighten with a 17mm wrench.
• Final tighten with a torque wrench (20-150 ft-lbs): Torque to 49 Nm (36 ft-lbs).
• If the cotter pin hole doesn’t line up, tighten the nut slightly more until it does (do not loosen to align).
• Install a new cotter pin using needle-nose pliers and bend the ends over.

Step 11: Tighten the jam nut

• Hold the tie rod end body with an adjustable wrench (12").
• Snug the jam nut against it using a 22mm wrench.
• Final tighten with a torque wrench (20-150 ft-lbs): Torque to 55 Nm (41 ft-lbs).

Step 12: Reinstall the wheel and lower the car

• Reinstall the wheel and hand-thread lug nuts.
• Lower the car off the jack stands using the floor jack.
• Torque lug nuts in a star pattern with a torque wrench (20-150 ft-lbs): Torque to 90-110 Nm (66-81 ft-lbs).

---

✅ After Repair

• Start the car and turn the steering wheel lock-to-lock slowly to confirm smooth movement and no binding/noise.
• Do a short, slow test drive and verify the steering wheel is close to centered.
• Get a professional alignment as soon as possible (tie rod replacement changes toe).
• Recheck the lug nut torque after 25–50 miles.

---
