🔧 QX50 - Tie Rod End Replacement

The tie rod end connects your steering rack to the steering knuckle and lets the wheels turn when you steer. Replacing a worn tie rod end fixes looseness, clunking, uneven tire wear, and helps your A4 track straight again.

Difficulty Level: Intermediate | Estimated Time: 1-2 hours (one side)

Assumption: replacing an outer tie rod end (most common).

---

⚠️ Safety & Precautions

• ⚠️ Support your QX50 on jack stands; never rely on a jack alone.
• ⚠️ Keep hands clear when separating the joint; it can pop loose suddenly.
• ⚠️ After replacement, you need a professional alignment to avoid tire wear and pulling.
• ⚠️ Do not turn the steering wheel with the tie rod disconnected.
• ⚠️ Battery disconnect is not required.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Lug wrench or 21mm socket
• Ratchet
• Torque wrench (20-150 ft-lbs range)
• Needle-nose pliers
• 17mm socket
• 19mm wrench
• Adjustable wrench (12-inch)
• Tie rod end puller (specialty)
• Paint marker
• Tape measure
• Penetrating oil
• Wire brush
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Outer tie rod end - Qty: 1
• New cotter pin - Qty: 1
• Anti-seize compound - Qty: 1
• Chassis grease (if tie rod has grease fitting) - Qty: 1

---

📋 Before You Begin

• 🧰 Park on level ground, straighten the steering wheel, and set the parking brake.
• Place wheel chocks behind the rear tires.
• Loosen the front lug nuts slightly using a lug wrench or 21mm socket before lifting.
• Spray penetrating oil on the tie rod end nut and the jam nut using penetrating oil.
• Tip: Measure carefully to keep alignment close.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and remove the wheel

• Lift the front corner with a floor jack (rated 3-ton minimum).
• Set the vehicle on jack stands (rated 3-ton minimum) and keep the wheel chocks in place.
• Remove the lug nuts using a lug wrench or 21mm socket and take off the wheel.

Step 2: Mark and measure your baseline

• Use a paint marker to mark the position of the jam nut on the inner tie rod threads.
• Use a tape measure to measure from a fixed point (like the end of the inner tie rod) to the center of the tie rod end stud, and write it down.
• Tip: This helps you drive to alignment safely.

Step 3: Loosen the jam nut

• Hold the inner tie rod with an adjustable wrench (12-inch).
• Loosen the jam nut using a 19mm wrench (size can vary; use what fits), but do not move it far yet.

Step 4: Remove the cotter pin and castle nut

• Straighten and remove the cotter pin using needle-nose pliers.
• Remove the tie rod end nut using a 17mm socket.

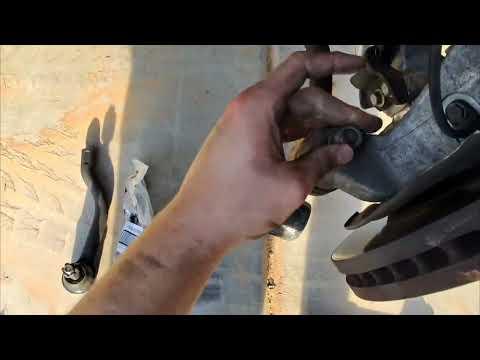

Step 5: Separate the tie rod end from the knuckle

• Install and tighten a tie rod end puller (specialty) until the joint pops free.
• Tip: A puller protects the threads and boot.

Step 6: Remove the old tie rod end

• Spin the tie rod end off the inner tie rod by hand.
• Count the exact number of turns it takes to remove it, and write the number down.

Step 7: Install the new tie rod end

• Clean the threads with a wire brush.
• Apply a thin coat of anti-seize compound to the threads.
• Thread the new tie rod end on the same number of turns you counted.
• Line up your tape-measure baseline using the tape measure and adjust if needed.

Step 8: Tighten the stud nut and install a new cotter pin

• Insert the stud into the steering knuckle.
• Tighten the nut using a torque wrench (20-150 ft-lbs range) and 17mm socket to Torque to 35 Nm (26 ft-lbs).
• Continue tightening just enough to align the slots, then install a new cotter pin using needle-nose pliers.
• Tip: Never loosen to align cotter pin holes.

Step 9: Tighten the jam nut

• Hold the inner tie rod with an adjustable wrench (12-inch).
• Tighten the jam nut using a 19mm wrench to Torque to 74 Nm (55 ft-lbs).

Step 10: Reinstall the wheel

• Reinstall the wheel and hand-tighten lug nuts using a lug wrench or 21mm socket.
• Lower the vehicle with the floor jack (rated 3-ton minimum).
• Torque the lug nuts in a star pattern using a torque wrench (20-150 ft-lbs range) to Torque to 113 Nm (83 ft-lbs).

---

✅ After Repair

• 🧪 Start the engine and turn the steering wheel lock-to-lock slowly to confirm smooth movement and no binding.
• Check the boot area for twisting and make sure the cotter pin is fully bent over.
• Road test at low speed first; confirm no clunking and the steering wheel returns to center.
• Get a 4-wheel alignment as soon as possible (same day is best).
• If your new tie rod has a grease fitting, add grease using chassis grease until the boot just begins to swell.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$350 (parts + labor + basic alignment check)

DIY Cost: $35-$110 (parts only)

You Save: $145-$240 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1-2 hours.

---
