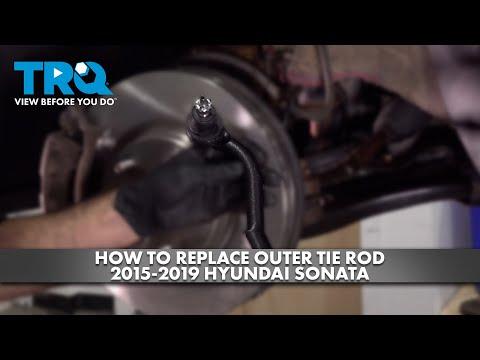

🔧 Sonata - Outer Tie Rod End Replacement

The outer tie rod end connects your steering rack to the front steering knuckle. Replacing it restores tight steering and fixes play or torn boots, but you must keep the new part set close to the old length to drive safely to an alignment.

Difficulty Level: Intermediate | Estimated Time: 1-2 hours (per side)

---

⚠️ Safety & Precautions

• 🛑 Support the car with jack stands; never rely on a floor jack.
• 🛑 Chock the rear wheels and work on level ground.
• 🛑 Wear safety glasses; rust and debris fall when separating the joint.
• 🛑 After replacement, get a front alignment ASAP; toe can be off and chew tires fast.
• 🛑 Assumption: common torque specs used for the Sonata; verify with OEM data if available.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• 21mm socket
• Breaker bar (1/2-inch drive)
• Torque wrench (20–150 ft-lbs range)
• Needle-nose pliers
• Side cutters
• Paint marker
• Tape measure
• Penetrating oil
• Open-end wrench set (17mm–22mm)
• Adjustable wrench (10-inch)
• Tie rod end puller (specialty)
• Hammer (16 oz)
• Wire brush

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Outer tie rod end - Qty: 1 (per side)
• Cotter pin (tie rod end castle nut) - Qty: 1 (per side)
• Jam nut (if not included with tie rod end) - Qty: 1 (per side)
• Thread locker (medium strength) - Qty: 1
• Anti-seize compound - Qty: 1

---

📋 Before You Begin

• 🧰 Park on level ground, set the parking brake, and chock both rear wheels.
• 🧰 Break the front wheel lug nuts loose 1/2 turn before lifting (do not remove yet).
• 🧰 Turn the steering wheel so you have better access to the tie rod end you’re replacing.
• 🧰 Spray penetrating oil on the jam nut and the tie-rod-end threads and let it soak 5–10 minutes.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and remove the wheel

• Use a floor jack to lift at the front jacking point, then set the car onto jack stands.
• Use a 21mm socket and breaker bar to remove the lug nuts and remove the wheel.

Step 2: Mark the current alignment position

• Use a paint marker to mark the tie rod threads at the jam nut.
• Use a tape measure to measure from the center of the tie rod end stud to a fixed point on the inner tie rod, and write it down.
• This helps keep toe close enough to drive.

Step 3: Remove the cotter pin and loosen the castle nut

• Use needle-nose pliers to straighten the cotter pin, then pull it out. If it snaps, use side cutters to remove pieces.
• Use the correct size open-end wrench or socket to loosen the tie rod end castle nut (do not fully remove yet).

Step 4: Separate the tie rod end from the steering knuckle

• Install a tie rod end puller (specialty) over the joint and tighten it until the stud pops free.
• If needed, lightly strike the side of the steering knuckle boss with a hammer (16 oz) to help it release (do not hit the stud threads).
• Now remove the castle nut completely using the same wrench or socket.
• A puller protects boots and threads.

Step 5: Loosen the jam nut

• Use a wire brush to clean exposed threads.
• Hold the inner tie rod with an adjustable wrench (10-inch) (or correct open-end wrench if it has flats).
• Use an open-end wrench to break the jam nut loose by turning it counterclockwise (do not move it far yet).

Step 6: Unscrew the old tie rod end (count turns)

• Spin the outer tie rod end off by hand and count the exact number of turns it takes to come off.
• Write the number down. This is your best “close alignment” reference.

Step 7: Install the new tie rod end

• Apply a light coat of anti-seize compound to the threads (avoid the tapered stud).
• Screw the new tie rod end on using the same number of turns you counted during removal.
• Snug it to your paint mark and measurement using the tape measure and paint marker reference.

Step 8: Attach the stud to the steering knuckle and torque

• Insert the tapered stud into the knuckle by hand.
• Install the castle nut and tighten using the correct socket or open-end wrench.
• Torque to 49–63 Nm (36–46 ft-lbs), then continue tightening slightly until the cotter pin hole lines up with a castle notch.
• Install a new cotter pin and bend the ends using needle-nose pliers.
• Never loosen to align the cotter pin.

Step 9: Tighten the jam nut

• Hold the tie rod end body with an adjustable wrench (10-inch).
• Tighten the jam nut against the tie rod end using an open-end wrench.
• Torque to 55–65 Nm (41–48 ft-lbs).

Step 10: Reinstall wheel and lower the car

• Reinstall the wheel and hand-thread the lug nuts.
• Lower the car using the floor jack, then torque lug nuts in a star pattern using a torque wrench.
• Torque to 88–108 Nm (65–80 ft-lbs).

---

✅ After Repair

• 🧪 Start the engine and turn the steering wheel lock-to-lock; listen for clunks and confirm the boot isn’t twisted.
• 🧪 Road test at low speed first; steering wheel should be near centered and the car should not pull hard.
• 🧪 Schedule a professional alignment immediately (front toe set).
• 🧪 Recheck the castle nut/cotter pin and jam nut after the first short drive.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$350 (parts + labor, per side)

DIY Cost: $35-$120 (parts only, per side)

You Save: $145-$230 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
