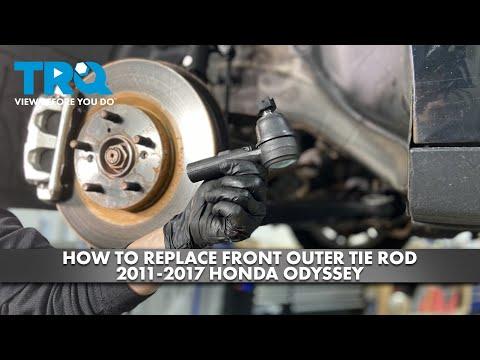

🔧 Odyssey - Outer Tie Rod End Replacement

You’ll remove the worn outer tie rod end from the steering knuckle, then install the new one and set it close to the original length. This gets rid of looseness/clunking and helps the van track straight.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours (plus alignment time)

Assumption: replacing one front outer tie rod end (left or right).

---

⚠️ Safety & Precautions

• Work on a flat, solid surface and chock the rear wheels.
• Lift the front safely and support the Odyssey on jack stands; never rely on a floor jack alone.
• Wear safety glasses—rust and cotter pin pieces can fly.
• Do not hammer directly on the steering knuckle where the stud sits; it can damage the taper seat.
• No battery disconnect is required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Breaker bar 1/2"
• Torque wrench 3/8" (10-100 ft-lbs range)
• Torque wrench 1/2" (50-250 ft-lbs range)
• 19mm socket
• 19mm wrench
• 17mm socket
• 17mm wrench
• Needle-nose pliers
• Diagonal cutters
• Flathead screwdriver
• Tie rod end puller (specialty)
• Paint marker
• Tape measure
• Penetrating oil
• Wire brush

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front outer tie rod end - Qty: 1
• New cotter pin (for tie rod end stud) - Qty: 1
• Anti-seize compound - Qty: 1

---

📋 Before You Begin

• Park on level ground, steering wheel straight, and set the parking brake.
• Loosen the front wheel lug nuts slightly before lifting.
• Spray penetrating oil on the tie rod end jam nut threads and the castle nut/stud area; let it soak 5–10 minutes.
• Plan for an alignment after the repair; even a small toe change can cause tire wear.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and remove the wheel

• Use a 19mm socket and breaker bar to loosen lug nuts 1/2 turn.
• Use a floor jack to lift at the front jack point, then support with jack stands.
• Remove lug nuts with a 19mm socket, then remove the wheel.

Step 2: Mark your starting point (helps keep alignment close)

• Use a paint marker to mark the tie rod end-to-inner tie rod threads at the jam nut area.
• Use a tape measure to measure from a fixed point on the outer tie rod end to the jam nut and write it down.

Step 3: Loosen the jam nut

• Use a wire brush to clean exposed threads.
• Hold the outer tie rod end with a 17mm wrench or 19mm wrench (as fitted) and loosen the jam nut using the other 19mm wrench.
• Back the jam nut off 1–2 turns, but do not move the tie rod end position yet.

Step 4: Remove the cotter pin and castle nut

• Straighten the cotter pin using needle-nose pliers, then pull it out. If it breaks, use diagonal cutters to remove pieces.
• Remove the castle nut with a 17mm socket.

Step 5: Separate the tie rod end from the steering knuckle

• Install the tie rod end puller (specialty) and tighten it until the stud “pops” free. A tie rod end puller is a clamp tool that presses the stud out without damaging the rubber boot.
• If needed, lightly tap the side of the knuckle boss with a breaker bar (do not hit the stud threads).

Step 6: Remove the old outer tie rod end

• Spin the outer tie rod end off by hand while counting the turns (example: 17 turns). Write the number down.
• Thread the jam nut back toward the inner tie rod a little if you need more room to spin the end off.

Step 7: Install the new outer tie rod end

• Apply a thin coat of anti-seize compound to the clean threads.
• Thread the new tie rod end on the same number of turns you counted when removing the old one.
• Rotate the tie rod end until the stud lines up with the steering knuckle hole.

Step 8: Tighten the stud nut and install a new cotter pin

• Install the tie rod end stud into the knuckle.
• Tighten the castle nut using a 17mm socket and torque wrench: Torque to 49 Nm (36 ft-lbs).
• If the cotter pin hole does not line up, tighten the nut slightly more until it aligns (never loosen to align).
• Install a new cotter pin and bend the legs with needle-nose pliers.

Step 9: Tighten the jam nut

• Hold the outer tie rod end with a 17mm wrench or 19mm wrench (as fitted).
• Tighten the jam nut with a 19mm wrench: Torque to 49 Nm (36 ft-lbs).
• Tip: Keep your paint mark aligned.

Step 10: Reinstall the wheel

• Reinstall the wheel and hand-thread lug nuts.
• Lower the Odyssey off the jack stands using the floor jack.
• Tighten lug nuts in a star pattern using a torque wrench: Torque to 127 Nm (94 ft-lbs).

---

✅ After Repair

• Start the engine and turn the steering wheel lock-to-lock; check for binding, noises, or a twisted boot.
• Road-test at low speed first; steering wheel should be close to centered.
• Get a 4-wheel alignment as soon as possible to prevent rapid tire wear.
• Recheck lug nut torque after 25–50 miles.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$500 (parts + labor + basic alignment)

DIY Cost: $35-$120 (parts only)

You Save: $130-$400 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
