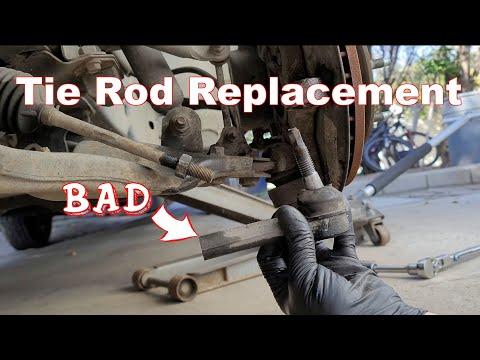

🔧 Canyon - Outer Tie Rod End Replacement

You’ll be replacing the outer tie rod end (the steering linkage joint at the wheel). A worn tie rod end can cause steering play, clunking, uneven tire wear, and poor alignment.

Assumption: This is the outer tie rod end (most common). Inner tie rod replacement is different.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

---

⚠️ Safety & Precautions

• ⚠️ Support the truck with jack stands; never rely on a jack.
• ⚠️ Work on level ground and chock the rear wheels with wheel chocks.
• ⚠️ Steering parts affect control—get an alignment after replacement.
• ⚠️ If you use a “pickle fork,” it can damage the old boot (fine if replacing).

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 21mm socket
• Breaker bar (1/2")
• Torque wrench (30-200 ft-lbs range)
• Needle-nose pliers
• Side cutters
• Paint marker
• Tape measure
• 18mm socket
• 18mm wrench
• 24mm wrench
• Tie rod end puller (specialty)
• Penetrating oil
• Shop rags
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Outer tie rod end - Qty: 1
• Cotter pin - Qty: 1
• Grease (chassis grease) - Qty: 1

---

📋 Before You Begin

• Park on level ground, straighten the steering wheel, and set the parking brake.
• Place wheel chocks behind the rear tires.
• Loosen the front wheel lug nuts 1/2 turn using a 21mm socket and breaker bar before lifting.
• Spray penetrating oil on the tie rod end jam nut and the stud nut. Let it soak 5–10 minutes.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and remove the wheel

• Lift the front corner with a floor jack under the frame/jacking point.
• Set the truck onto jack stands.
• Remove the wheel using a 21mm socket.

Step 2: Mark the current position (helps keep toe close)

• Use a paint marker to mark the position of the jam nut on the tie rod.
• Measure from a fixed point (like the end of the inner tie rod/threads) to the center of the outer tie rod end using a tape measure. Write it down.
• This helps you drive to alignment safely.

Step 3: Remove the cotter pin and nut from the steering knuckle

• Straighten and remove the cotter pin with needle-nose pliers and side cutters.
• Remove the tie rod end stud nut using an 18mm socket.

Step 4: Separate the tie rod end from the knuckle

• Install a tie rod end puller (specialty) and tighten it until the stud pops free. (A puller is a clamp tool that presses the joint apart without hammering.)
• If it’s stuck, apply more penetrating oil and try again.

Step 5: Loosen the jam nut

• Hold the inner tie rod area steady with an 18mm wrench if needed, and loosen the jam nut using a 24mm wrench.
• Back the jam nut away a few turns, but do not remove it.

Step 6: Unthread the old outer tie rod end (count turns)

• Spin the outer tie rod end off by hand, counting the exact number of turns it takes to remove.
• Write the number down (example: “17.5 turns”).

Step 7: Install the new outer tie rod end

• Thread the new tie rod end on the same number of turns you counted.
• Line up your measurement/paint mark as close as possible.
• If your new tie rod end has a grease fitting, add grease with a grease gun (if applicable) until the boot just starts to swell.

Step 8: Attach to the steering knuckle and torque fasteners

• Insert the stud into the knuckle.
• Tighten the stud nut with an 18mm socket and torque wrench: Torque to 70 Nm (52 ft-lbs).
• Continue tightening only as needed to align the cotter pin hole, then install a new cotter pin using needle-nose pliers.
• Tighten the jam nut using a 24mm wrench: Torque to 75 Nm (55 ft-lbs).

Step 9: Reinstall the wheel

• Install the wheel and hand-tighten lug nuts using a 21mm socket.
• Lower the truck off the jack stands using the floor jack.
• Torque lug nuts in a star pattern with a torque wrench: Torque to 190 Nm (140 ft-lbs).

---

✅ After Repair

• Start the truck and turn the steering wheel lock-to-lock to confirm smooth movement and no binding.
• Road test at low speed first. The steering wheel may be slightly off-center until aligned.
• Get a professional front-end alignment as soon as possible to prevent tire wear.
• Recheck the jam nut area for movement after a short drive.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$400 (parts + labor + alignment)

DIY Cost: $35-$120 (parts only)

You Save: $145-$280 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-2.0 hours.

---
