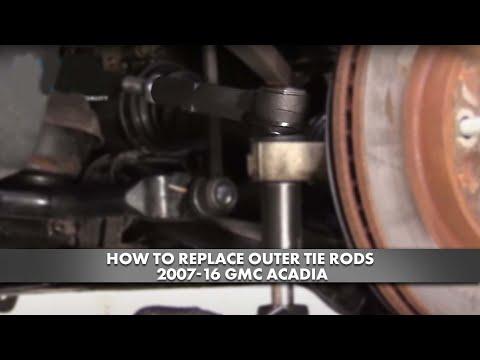

🔧 Acadia - Outer Tie Rod End Replacement

The outer tie rod end connects your steering rack (through the tie rod) to the steering knuckle at the wheel. Replacing it fixes looseness, clunking, uneven tire wear, and steering wander.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours (one side)

Assumption: replacing the outer tie rod end (most common).

---

⚠️ Safety & Precautions

• ⚠️ Support your Acadia on jack stands—never rely on a floor jack.
• ⚠️ Keep hands clear when separating the joint; the knuckle can “pop” free suddenly.
• ⚠️ Do not hit the threaded stud; you can ruin the threads.
• ⚠️ A front-end alignment is strongly recommended after this job to prevent tire wear.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• Lug nut socket (22mm)
• Breaker bar (1/2")
• Torque wrench (20–150 ft-lbs)
• Combination wrench set (metric)
• Socket set (metric)
• Pliers
• Side cutters
• Ball joint separator (specialty)
• Penetrating oil
• Paint marker
• Tape measure

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Outer tie rod end - Qty: 1
• Cotter pin (new) - Qty: 1
• Thread locker (medium strength) - Qty: 1
• Chassis grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, center the steering wheel, and set the parking brake.
• Chock the rear wheels with wheel chocks.
• Loosen the front wheel lug nuts slightly using a 22mm lug socket and breaker bar before lifting.
• Spray penetrating oil on the tie rod end jam nut and the stud nut using penetrating oil.
• Use a paint marker to mark the tie rod end position against the threads; this helps keep the toe close for the drive to the alignment shop.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and remove the wheel

• Lift the front corner with a floor jack (rated 3-ton minimum) at the proper jacking point.
• Set the vehicle onto jack stands (rated 3-ton minimum).
• Remove the lug nuts with a 22mm lug nut socket and remove the wheel.

Step 2: Measure and record the current toe position

• Use a tape measure to measure from a tread groove on the front of the tire to the same groove on the other front tire (front measurement), then measure the rear side of the tires (rear measurement).
• Write both numbers down; you’ll use them later to get it close again.
• Gets you safely to the alignment shop.

Step 3: Remove the cotter pin (if equipped)

• Straighten and remove the cotter pin using pliers and side cutters.
• If it breaks, remove the pieces completely before loosening the nut.

Step 4: Remove the tie rod end nut at the steering knuckle

• Remove the nut using the correct size from your socket set (metric) and a breaker bar (1/2").
• If the stud spins, hold the stud with a combination wrench set (metric) while loosening the nut.

Step 5: Separate the tie rod end from the knuckle

• Install a ball joint separator (specialty) between the tie rod end and the knuckle and tighten until it “pops” free.
• A ball joint separator is a tool that presses the joint apart without damaging the threads.

Step 6: Break loose the jam nut

• Hold the inner tie rod (or flats, if present) with a combination wrench set (metric).
• Loosen the jam nut using another combination wrench set (metric) by turning it counterclockwise.
• Do not move the jam nut far—just free it.

Step 7: Remove the old outer tie rod end

• Unscrew the outer tie rod end by hand, counting the exact number of turns.
• Write the number down (example: 17 turns). This helps keep alignment close.

Step 8: Install the new outer tie rod end

• Screw the new tie rod end on the same number of turns you counted.
• Line up your paint mark using the paint marker as a double-check.
• If your new tie rod end has a grease fitting, add grease using chassis grease (until the boot just starts to swell).

Step 9: Attach the tie rod end to the knuckle and tighten

• Insert the stud into the knuckle.
• Install the new nut and tighten with a socket set (metric) and torque wrench (20–150 ft-lbs).
• Torque to 50 ft-lbs (68 N·m), then continue tightening only as needed to align the cotter-pin hole.
• Install a new cotter pin using pliers.
• Never loosen to align the cotter pin.

Step 10: Tighten the jam nut

• Add a small amount of thread locker (medium strength) to the threads near the jam nut.
• Hold the tie rod end with a combination wrench set (metric).
• Tighten the jam nut with a combination wrench set (metric).
• Torque to 55 ft-lbs (75 N·m).

Step 11: Reinstall the wheel

• Reinstall the wheel and hand-thread lug nuts.
• Lower the vehicle from the jack stands (rated 3-ton minimum) using the floor jack (rated 3-ton minimum).
• Tighten lug nuts in a star pattern using a torque wrench (20–150 ft-lbs).
• Torque to 140 ft-lbs (190 N·m).

---

✅ After Repair

• Start the engine and turn the steering wheel lock-to-lock to confirm smooth movement and no binding.
• Road-test at low speed first; listen for clunks and verify the steering wheel is centered.
• Re-check the tire-to-tire measurements with your tape measure; adjust by turning the tie rod end if needed to match your “before” numbers closely.
• Get a professional alignment as soon as possible.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor + alignment often extra)

DIY Cost: $35-$120 (parts only)

You Save: $130-$350 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
