🔧 Explorer - Outer Tie Rod End Replacement

The outer tie rod end connects your steering rack to the steering knuckle and controls wheel toe (how straight the tires point). Replacing it restores tight steering and helps prevent uneven tire wear, but you must get the alignment checked afterward.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours (one side)

Assumption: you’re replacing the outer tie rod end (most common).

---

⚠️ Safety & Precautions

• Work on level ground and use jack stands; never rely on a floor jack alone.
• Chock the rear wheels and keep the transmission in Park.
• Do not turn the steering wheel with the tie rod disconnected.
• If using a pickle fork or separator, keep fingers clear of pinch points.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• 19mm socket
• Breaker bar (1/2-inch drive)
• Torque wrench (20–250 ft-lbs range)
• Needle-nose pliers
• Paint marker
• Tape measure (metric/inch)
• Wire brush
• Penetrating oil
• Adjustable wrench (10-inch)
• Open-end wrench set (metric, 17–24mm)
• Ratchet (3/8-inch drive)
• Socket set (metric, 10–24mm)
• Tie rod end separator tool (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Outer tie rod end - Qty: 1 (replace in pairs recommended)
• Cotter pin (new) - Qty: 1
• Anti-seize compound - Qty: 1
• Threadlocker (medium strength) - Qty: 1 (only if specified by the part maker)

---

📋 Before You Begin

• Center the steering wheel and keep the front wheels pointing straight.
• Loosen the front wheel lug nuts slightly before lifting the vehicle.
• Plan on getting a professional alignment after the repair (toe will change).
• Spray penetrating oil on the tie rod jam nut threads and the ball stud nut area and let it soak.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the front corner

• Use a breaker bar (1/2-inch drive) with a 19mm socket to loosen the lug nuts 1/2 turn.
• Lift with the floor jack (rated 3-ton minimum) and support the vehicle with jack stands (rated 3-ton minimum).
• Remove the wheel using the 19mm socket.
• When reinstalling later: Torque to 203 Nm (150 ft-lbs) in a star pattern.

Step 2: Mark and measure for a close “starter alignment”

• Use a paint marker to mark the position of the jam nut relative to the threaded tie rod.
• Use a tape measure to measure from a fixed point on the outer tie rod end to a fixed point on the inner tie rod (or count exposed threads).
• This helps you install the new one close to the old setting so it can be driven to an alignment shop.

Step 3: Loosen the jam nut

• Clean exposed threads with a wire brush, then apply penetrating oil.
• Hold the inner tie rod with an adjustable wrench (10-inch).
• Use an open-end wrench set (metric, 17–24mm) to loosen the jam nut (turn it counterclockwise) a few turns, but do not move it far.

Step 4: Remove the cotter pin and the tie rod end nut

• Straighten and remove the cotter pin using needle-nose pliers.
• Use a ratchet (3/8-inch drive) with the correct-size socket set (metric, 10–24mm) to remove the tie rod end nut from the steering knuckle.
• If the stud spins, apply upward pressure to the tie rod end while loosening (use the tie rod end separator tool (specialty) carefully to hold tension).

Step 5: Separate the tie rod end from the steering knuckle

• Use the tie rod end separator tool (specialty) to pop the tapered stud out of the knuckle. A separator tool is a puller-style tool that pushes the stud out without hammering the threads.
• Keep the tool square and tighten it slowly until the taper releases with a “pop”.

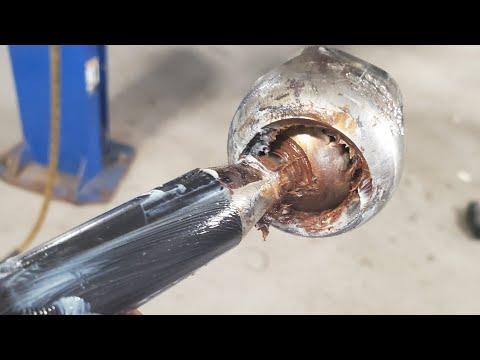

Step 6: Remove the old tie rod end from the threaded rod

• Spin the tie rod end off by hand while counting the exact number of turns.
• Write the number down; you’ll install the new one with the same turns.

Step 7: Install the new outer tie rod end

• Apply a light coat of anti-seize compound to the threads.
• Thread the new tie rod end on the exact same number of turns as removal.
• Rotate it until the stud lines up with the knuckle hole, then insert the stud into the knuckle.

Step 8: Tighten the ball stud nut and install a new cotter pin

• Install the new nut and tighten using a torque wrench (20–250 ft-lbs range) and the correct socket from your socket set (metric, 10–24mm).
• Torque to the Ford specification for your Explorer’s outer tie rod end stud nut (varies by hardware; use service info for the exact value).
• Align the castle nut slot (if equipped) with the hole and install a new cotter pin using needle-nose pliers. Never reuse the old cotter pin.

Step 9: Tighten the jam nut

• Hold the inner tie rod with the adjustable wrench (10-inch).
• Tighten the jam nut against the new outer tie rod end using the open-end wrench set (metric, 17–24mm).
• Torque to the Ford specification for your Explorer’s tie rod jam nut (use service info for the exact value).

Step 10: Reinstall the wheel and lower the vehicle

• Reinstall the wheel using the 19mm socket.
• Lower the vehicle, then use a torque wrench (20–250 ft-lbs range) to tighten lug nuts: Torque to 203 Nm (150 ft-lbs).

---

✅ After Repair

• Start the engine and turn the steering wheel lock-to-lock slowly to confirm smooth movement and no binding.
• Road-test at low speed first; verify the steering wheel is close to centered and the vehicle tracks straight.
• Get a 4-wheel alignment as soon as possible (toe setting will be off even if you counted turns).
• Recheck the jam nut area for movement after the first short drive.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$500 (parts + labor + alignment)

DIY Cost: $35-$120 (parts only, alignment extra)

You Save: $130-$380 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
