🔧 Expedition - Outer Tie Rod End Replacement

The outer tie rod end connects your steering rack to the steering knuckle, letting the front wheels turn. Replacing it restores safe steering and reduces tire wear, but you’ll still need an alignment afterward because toe angle can change.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (one side)

---

⚠️ Safety & Precautions

• Work on level ground and chock the rear wheels before lifting the front.
• Support the frame with jack stands; never rely on a floor jack alone.
• Keep hands clear of pinch points while separating the tie rod end from the knuckle.
• Replace the cotter pin with a new one; never reuse an old cotter pin.
• Plan on a professional alignment after the repair to prevent tire wear.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 21mm socket
• 1/2" drive breaker bar
• 1/2" drive torque wrench (30-250 ft-lbs range)
• 22mm socket
• 24mm open-end wrench
• Needle-nose pliers
• Diagonal cutters
• Tie rod end puller (specialty)
• Penetrating oil
• Wire brush
• Paint marker
• Tape measure
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Outer tie rod end - Qty: 1
• Cotter pin (tie rod end stud) - Qty: 1

---

📋 Before You Begin

• Park on level ground, center the steering wheel, and turn the engine off.
• Chock both rear wheels and leave the transmission in Park.
• Loosen the front wheel lug nuts slightly before lifting (do not remove yet).
• Spray penetrating oil on the tie rod end jam nut and the stud nut area; let it soak 5-10 minutes.
• Tip: Take photos before disassembly.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the front corner

• Use a floor jack to lift at the front jacking point.
• Place jack stands under the frame and lower the vehicle onto them.
• Confirm the truck is stable before removing the wheel.

Step 2: Remove the wheel

• Use a 21mm socket and breaker bar to remove the lug nuts.
• Remove the wheel and set it aside.
• When reinstalling later: Torque to 203 Nm (150 ft-lbs) using a torque wrench.

Step 3: Mark the current toe setting (helps you drive to alignment)

• Use a paint marker to mark the position of the jam nut relative to the inner tie rod threads.
• Use a tape measure to measure from the center of the tie rod stud to a fixed point on the tie rod (write it down).
• Tip: This does not replace an alignment.

Step 4: Remove the cotter pin from the tie rod end stud

• Use needle-nose pliers to straighten the cotter pin legs.
• Use diagonal cutters if needed to cut and remove the old cotter pin.

Step 5: Remove the tie rod end nut from the steering knuckle

• Use a 22mm socket to remove the nut from the tie rod end stud.
• If the stud spins, apply upward pressure at the joint while loosening (keep fingers clear).

Step 6: Separate the tie rod end from the knuckle

• Install a tie rod end puller (specialty) on the joint and tighten it until the stud pops free.
• A tie rod puller is a clamp tool that presses the stud out without hammering the knuckle.

Step 7: Loosen the jam nut

• Use a wire brush to clean exposed threads.
• Hold the inner tie rod area steady and use a 24mm open-end wrench to loosen the jam nut (do not remove it).

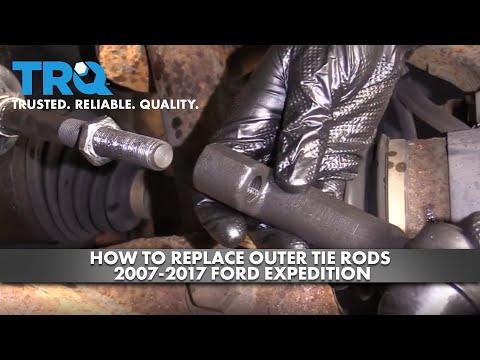

Step 8: Remove the old outer tie rod end (count turns)

• Spin the outer tie rod end off by hand, counting the exact number of turns until it comes off.
• Write the number down (example: 17.5 turns). This helps get the new one close.

Step 9: Install the new outer tie rod end

• Thread the new tie rod end on the same number of turns you counted, by hand.
• Snug it up to the jam nut by hand, keeping your paint marks lined up as closely as possible.

Step 10: Attach the stud to the knuckle and torque

• Insert the tie rod end stud into the knuckle.
• Install the new nut and tighten with a 22mm socket.
• Torque to 85 Nm (63 ft-lbs) using a torque wrench.
• If needed, continue tightening slightly until the cotter pin hole lines up; do not loosen to align.

Step 11: Install a new cotter pin

• Slide in the new cotter pin by hand.
• Use needle-nose pliers to bend the legs over securely.

Step 12: Tighten the jam nut

• Use a 24mm open-end wrench to tighten the jam nut against the tie rod end.
• Torque to 70 Nm (52 ft-lbs) using a torque wrench where possible.

Step 13: Reinstall the wheel and lower the truck

• Install the wheel and hand-thread lug nuts.
• Lower off the jack stands using the floor jack.
• Use a torque wrench to tighten lug nuts in a star pattern: Torque to 203 Nm (150 ft-lbs).

---

✅ After Repair

• Start the engine and turn lock-to-lock slowly to confirm nothing binds or clicks.
• Road test at low speed first; confirm the steering wheel is close to centered.
• Get a front-end alignment as soon as possible (same day if you can).
• Recheck lug nut torque after 25-50 miles with a torque wrench: 203 Nm (150 ft-lbs).

---

💰 DIY vs Shop Cost

Shop Cost: $250-$550 (parts + labor + typical alignment)

DIY Cost: $40-$120 (parts only, per side)

You Save: $210-$430 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
