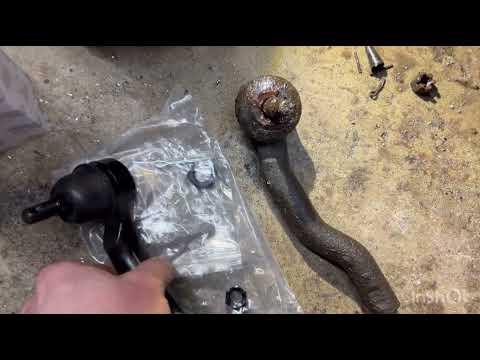

🔧 Edge - Outer Tie Rod End Replacement

The outer tie rod end connects your steering rack to the steering knuckle. Replacing it restores tight steering and fixes looseness or clunking caused by a worn ball joint.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours (per side)

Assumption: torque values can vary by hardware; verify if you have factory specs.

---

⚠️ Safety & Precautions

• 🛑 Support your Edge on jack stands; never rely on a jack.
• 🛞 Chock the rear wheels and work on level ground.
• 🧤 Wear eye protection when separating the tie rod (parts can pop loose).
• 🔩 If your tie-rod nut uses a cotter pin, always replace the cotter pin.
• 🔧 An alignment is required after replacement to prevent tire wear.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 21mm socket
• 1/2" drive breaker bar
• 1/2" drive torque wrench (20–200 Nm range)
• 15mm open-end wrench
• 18mm socket
• Pliers
• Side cutters
• Tie rod end puller (specialty)
• Paint marker
• Tape measure
• Penetrating oil
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Outer tie rod end - Qty: 1 (left or right as needed)
• Outer tie rod end nut - Qty: 1
• Cotter pin - Qty: 1 (if equipped)

---

📋 Before You Begin

• 🅿️ Park on level ground, steering wheel straight, and set the parking brake.
• 🧱 Chock both rear wheels.
• 🖊️ Use a paint marker to mark the tie rod end position on the threads (helps keep alignment close).
• 📏 Optional but helpful: measure from the center of the wheel to the front edge of the tire on both sides and write it down (a quick “toe” reference).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the wheel lug nuts

• Use a 21mm socket and breaker bar to loosen the lug nuts 1/2 turn while the tire is still on the ground.

Step 2: Lift and support the front corner

• Use a floor jack to lift at the proper front jacking point.
• Set the Edge down onto jack stands and give the vehicle a firm shake test.

Step 3: Remove the wheel

• Remove lug nuts using the 21mm socket.
• Remove the wheel and set it under the rocker panel as a backup safety catch.

Step 4: Break the jam nut loose

• Spray the threads with penetrating oil.
• Hold the inner tie rod/flat section with a 15mm open-end wrench (if flats are present) and turn the jam nut with the 15mm open-end wrench.
• Only loosen the jam nut 1–2 turns. Do not move it far.
• Jam nut = the lock nut behind the tie rod end.

Step 5: Remove the tie rod end nut from the knuckle

• If equipped, remove the cotter pin using pliers and side cutters.
• Remove the tie rod end nut using an 18mm socket.

Step 6: Separate the tie rod end from the steering knuckle

• Install a tie rod end puller (specialty) and tighten it until the stud pops free.
• A puller pushes the stud out without damage.

Step 7: Count turns and remove the old tie rod end

• Use a paint marker to mark the exact thread position.
• Unscrew the tie rod end by hand while counting full turns (example: 17.5 turns). Write it down.

Step 8: Install the new tie rod end (same length as old)

• Screw the new tie rod end on the same number of turns you counted.
• Align the stud with the knuckle and push it into place.

Step 9: Tighten the tie rod end nut and jam nut

• Tighten the tie rod end nut using an 18mm socket and torque wrench: Torque to 85 Nm (63 ft-lbs).
• If your nut uses a cotter pin, continue tightening only as needed to align the cotter hole, then install a new cotter pin using pliers.
• Hold the tie rod end with a 15mm open-end wrench and tighten the jam nut with a 15mm open-end wrench: Torque to 75 Nm (55 ft-lbs).

Step 10: Reinstall the wheel and lower the vehicle

• Install the wheel and hand-thread lug nuts.
• Lower the Edge using the floor jack.
• Tighten lug nuts in a star pattern using a 21mm socket and torque wrench: Torque to 135 Nm (100 ft-lbs).

---

✅ After Repair

• 🧪 Road test at low speed first. Confirm the steering wheel is centered and there are no clunks.
• 👀 Recheck the tie rod end nut area for movement after the test drive.
• 🛞 Get a professional 4-wheel alignment as soon as possible (AWD vehicles are sensitive to toe settings).
• Skipping alignment can destroy tires quickly.

---

💰 DIY vs Shop Cost

Shop Cost: ₹4,000-₹10,000 (parts + labor + alignment)

DIY Cost: ₹1,500-₹4,500 (parts only, alignment extra)

You Save: ₹2,500-₹5,500 by doing it yourself!

Shop labor rates vary but typically run ₹800-₹2,000/hour. This repair takes a shop approximately 1.0-1.5 hours per side.

---
