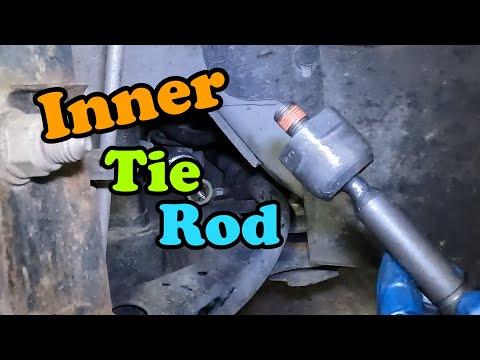

🔧 Grand Caravan - Outer Tie Rod End Replacement

You’ll be replacing the outer tie rod end (the steering joint at the wheel) because it’s worn or loose and can cause wandering, clunks, or uneven tire wear. The key is to keep the new part positioned as close as possible to the old one, then get a professional alignment right after.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours (one side)

---

⚠️ Safety & Precautions

• 🛑 Support your A4—never work under a vehicle held only by a jack.
• 🛞 Chock the rear wheels and keep the steering wheel unlocked (key on/off as needed) so you can turn the steering for access.
• 🔥 Avoid working right after driving; brakes and exhaust can be hot.
• 🔩 Use a new cotter pin; don’t reuse the old one.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 21mm socket
• 1/2" drive breaker bar
• 1/2" drive torque wrench (20-200 ft-lbs)
• 18mm socket
• 18mm wrench
• Pliers
• Tie rod end puller (specialty)
• Paint marker
• Tape measure
• Penetrating oil
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Outer tie rod end - Qty: 1
• Cotter pin - Qty: 1

---

📋 Before You Begin

• 🅿️ Park on level ground, set the parking brake, and chock both rear wheels.
• 🔧 Loosen the front wheel lug nuts 1/2 turn before lifting (use 21mm socket and breaker bar).
• 🧴 Spray penetrating oil on the tie rod end jam nut and the stud nut threads (give it 5–10 minutes).
• 📏 Record your baseline: measure from the center of the outer tie rod stud to a fixed point on the knuckle, or count the exact turns when removing. This helps keep toe close for the drive to the alignment shop.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the front corner

• Use a floor jack (rated 3-ton minimum) to lift the front corner at the proper jacking point.
• Set the vehicle onto jack stands (rated 3-ton minimum) and keep the floor jack lightly touching as a backup.
• Remove the wheel using a 21mm socket.

Step 2: Mark the current adjustment

• Use a paint marker to mark the position of the jam nut relative to the inner tie rod threads.
• Use a tape measure and write down one reference measurement (any consistent point is fine). Consistency beats “perfect” here.

Step 3: Remove the cotter pin and loosen the stud nut

• Remove the cotter pin with pliers. (A cotter pin is a small bent pin that locks the nut in place.)
• Loosen and remove the tie rod end stud nut using an 18mm socket.

Step 4: Separate the tie rod end from the steering knuckle

• Install a tie rod end puller (specialty) and tighten it until the stud pops free. (A puller pushes the stud out without damaging the boot.)
• If it’s stubborn, apply more penetrating oil and try again. Avoid hammering on the stud threads.

Step 5: Loosen the jam nut

• Hold the inner tie rod area steady and loosen the jam nut using an 18mm wrench.
• Back the jam nut off a few turns, but don’t move it far—this helps preserve alignment.

Step 6: Remove the old outer tie rod end (count turns)

• Unscrew the outer tie rod end from the inner tie rod by hand.
• Count the exact number of turns it takes to remove (example: “17.5 turns”). Write it down.

Step 7: Install the new outer tie rod end

• Screw the new tie rod end on the same number of turns you counted (use your notes).
• Snug the jam nut by hand up against the new tie rod end.

Step 8: Reconnect to the knuckle and install a new cotter pin

• Insert the tie rod end stud into the steering knuckle by hand.
• Install the stud nut using an 18mm socket and then tighten with a torque wrench: Torque to 70 Nm (52 ft-lbs), then tighten further only as needed to align the cotter pin hole.
• Install a new cotter pin using pliers and bend the legs over fully.

Step 9: Tighten the jam nut

• Hold the tie rod end so it doesn’t rotate and tighten the jam nut using an 18mm wrench and a torque wrench if you can fit it: Torque to 75 Nm (55 ft-lbs).
• Make sure the tie rod end boot is not twisted.

Step 10: Reinstall the wheel and lower the vehicle

• Reinstall the wheel using a 21mm socket.
• Lower the vehicle with the floor jack (rated 3-ton minimum).
• Tighten lug nuts in a star pattern with a torque wrench: Torque to 135 Nm (100 ft-lbs).

---

✅ After Repair

• 🧭 Get a front-end alignment as soon as possible. Even “perfect turn-count” can still be off.
• 🔍 With the wheel off the ground, gently wiggle the tire at 3 and 9 o’clock to confirm the new joint feels tight.
• 🛣️ Test drive at low speed first. Steering should feel centered with no clunks.
• 👀 Recheck the jam nut and lug nut torque after 25–50 miles.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$500 (parts + labor + alignment)

DIY Cost: $35-$120 (parts only)

You Save: $130-$380 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
