🔧 Tahoe - Outer Tie Rod End Replacement

The outer tie rod end connects your steering rack (via the inner tie rod) to the steering knuckle at the wheel. Replacing it restores safe steering and helps prevent uneven tire wear when the joint is loose or the boot is torn.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours (one side)

---

⚠️ Safety & Precautions

• 🛑 Support your Tahoe with jack stands; never rely on a floor jack alone.
• 🛞 Keep the steering wheel centered and the key off so the wheel doesn’t turn while parts are disconnected.
• 🔥 Work on a cool suspension/rotor area to avoid burns.
• 🔩 After replacement, get an alignment ASAP; driving without it can ruin tires quickly.
• 🔋 Battery disconnect is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 21mm socket
• 1/2" drive breaker bar
• 1/2" drive torque wrench (20-200 ft-lbs)
• Metric combination wrench set (15mm-27mm)
• Needle-nose pliers
• Cotter pin puller
• Paint marker
• Tape measure
• Wire brush
• Penetrating oil
• Hammer (16 oz)
• Tie rod end puller (specialty)
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Outer tie rod end - Qty: 1
• Cotter pin - Qty: 1
• Jam nut - Qty: 1 (if not included)
• Chassis grease - Qty: 1 (only if tie rod end has a grease fitting)

---

📋 Before You Begin

• 🅿️ Park on level ground, shift to Park, and set the parking brake.
• 🧱 Chock the rear wheels.
• 📏 Measure and write down a quick reference toe measurement: use a tape measure across the front edges of the two front tires (same height on both tires), then across the rear edges. This won’t replace an alignment, but it helps you keep it close.
• 🖊️ Spray penetrating oil on the tie rod jam nut and the tie rod end nut at the knuckle, then let it soak 5–10 minutes.
• 📝 Assumption: torque specs below match common Tahoe steering hardware; if your replacement uses different hardware (nylock vs castle nut), follow the instructions included with the part.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the wheel lug nuts

• Use a 21mm socket with a breaker bar to loosen the lug nuts 1/2 turn while the tire is still on the ground.

Step 2: Lift and support the front corner

• Use the floor jack to lift at the front jacking point.
• Set the vehicle onto jack stands and give it a gentle shake to confirm it’s stable.

Step 3: Remove the wheel

• Remove the lug nuts using the 21mm socket, then remove the wheel.

Step 4: Mark the current position (so alignment stays close)

• Use a paint marker to mark the tie rod threads at the jam nut.
• Use the tape measure to measure from a fixed point on the tie rod end to the jam nut, and write it down.
• This helps keep toe close for the drive to alignment.

Step 5: Loosen the jam nut

• Clean the threads with a wire brush.
• Hold the tie rod end with a metric combination wrench and loosen the jam nut with another metric combination wrench.
• Do not spin the tie rod end off yet—just “break” the jam nut loose.

Step 6: Remove the cotter pin

• Straighten and remove the cotter pin using needle-nose pliers and a cotter pin puller.
• If it snaps, remove all pieces before continuing.

Step 7: Remove the tie rod end nut from the knuckle

• Remove the nut using the correctly sized metric combination wrench or socket from your sets.

Step 8: Separate the tie rod end from the steering knuckle

• Install the tie rod end puller (specialty) and tighten it until the stud pops free.
• If needed, tap the knuckle near the stud with a hammer while tension is on the puller (tap the knuckle, not the threads).
• A “tie rod end puller” is a screw-type tool that pushes the stud out without damaging boots.

Step 9: Unscrew the old tie rod end (count turns)

• Spin the tie rod end off by hand, counting the exact number of turns until it comes off.
• Write the number down (example: 17.5 turns).

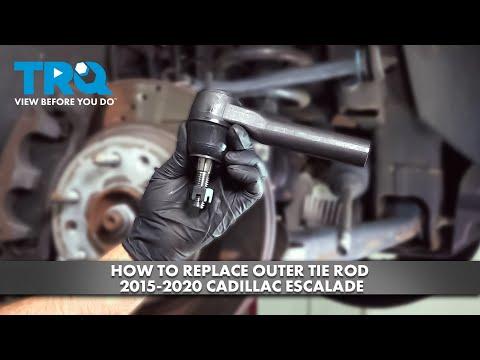

Step 10: Install the new tie rod end

• Thread the new tie rod end on the same number of turns you counted, by hand.
• Line it up with your paint mark/reference measurement.

Step 11: Attach the stud to the knuckle and torque it

• Insert the stud into the knuckle.
• Install the new nut by hand, then tighten using a torque wrench.
• Torque to 60 Nm (44 ft-lbs), then continue tightening just enough to align the cotter pin hole.
• Install a new cotter pin using needle-nose pliers and bend the ends over securely.

Step 12: Tighten the jam nut

• Hold the tie rod end with a metric combination wrench and tighten the jam nut with another metric combination wrench.
• Torque to 100 Nm (74 ft-lbs).

Step 13: Reinstall the wheel and torque lug nuts

• Reinstall the wheel and hand-tighten lug nuts using a 21mm socket.
• Lower the Tahoe off the jack stands using the floor jack.
• Torque lug nuts in a star pattern with a torque wrench: Torque to 190 Nm (140 ft-lbs).

---

✅ After Repair

• 🧭 Start the engine and turn the wheel lock-to-lock slowly to confirm smooth movement and no binding.
• 🔎 Test drive at low speed first; listen for clunks and confirm the steering wheel stays close to centered.
• 📐 Get a professional front-end alignment as soon as possible.
• 🛞 Recheck lug nut torque after 25–50 miles using a torque wrench: Torque to 190 Nm (140 ft-lbs).

---

💰 DIY vs Shop Cost

Shop Cost: $250-$500 (parts + labor + basic alignment)

DIY Cost: $35-$120 (parts only)

You Save: $130-$465 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
