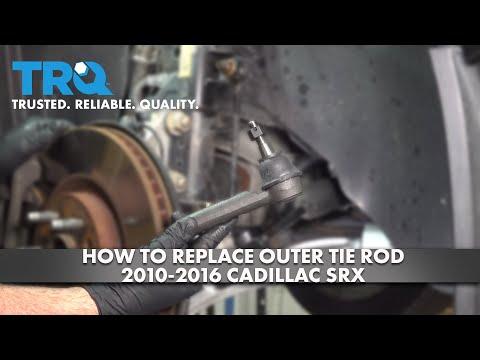

🔧 SRX - Outer Tie Rod End Replacement

The outer tie rod end connects your steering rack to the steering knuckle at the wheel. Replacing a worn one restores tight steering and prevents uneven tire wear. You’ll also want an alignment afterward so the tires don’t scrub.

Difficulty Level: Intermediate | Estimated Time: 1-2 hours

---

⚠️ Safety & Precautions

• 🛑 Support the SRX with jack stands on solid ground; never rely on a jack alone.
• 🧱 Chock the rear wheels and keep the steering wheel centered with the key off.
• 🧤 Wear eye protection when using a puller/hammer near suspension parts.
• 📏 Plan on a professional alignment after the repair to protect tires.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• 21mm socket
• 1/2" drive breaker bar
• 1/2" drive torque wrench (20-200 Nm range)
• 18mm socket
• 24mm open-end wrench
• Adjustable wrench (10")
• Needle-nose pliers
• Side cutters
• Hammer (16 oz)
• Tie rod end puller (specialty)
• Paint marker
• Tape measure
• Penetrating oil

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Outer tie rod end - Qty: 1
• New cotter pin - Qty: 1
• Threadlocker (medium strength) - Qty: 1

---

📋 Before You Begin

• 🧭 Park on level ground, straighten the front wheels, and set the parking brake.
• 🧱 Place wheel chocks behind the rear tires.
• 🧴 Spray penetrating oil on the tie rod stud nut and the outer tie rod “jam nut” area and let it soak.
• 📌 Assumption: common SRX hardware is 18mm for the stud nut and about 24mm for the jam nut; use the matching wrench/socket that fits your fasteners.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the wheel lug nuts

• Use a 21mm socket and breaker bar to crack the lug nuts loose about 1 turn while the tire is still on the ground.

Step 2: Lift and support the front corner

• Use a floor jack (rated 3-ton minimum) to lift at the approved front jacking point.
• Place jack stands (rated 3-ton minimum) under a solid support point and lower onto the stands.
• Keep the wheel chocks in place.

Step 3: Remove the wheel

• Use a 21mm socket to remove the lug nuts and pull the wheel off.

Step 4: Mark your alignment reference

• Use a paint marker to mark the position of the jam nut against the inner tie rod threads.
• Use a tape measure to measure from a fixed point on the outer tie rod end to the jam nut and write it down.
• These marks help you drive to alignment.

Step 5: Loosen the jam nut

• A “jam nut” is the lock nut that holds the toe setting in place.
• Hold the inner tie rod with an adjustable wrench (10") if it wants to twist.
• Use a 24mm open-end wrench to loosen the jam nut (do not remove it yet).

Step 6: Remove the tie rod stud nut

• If there is a cotter pin: straighten and remove it using needle-nose pliers and side cutters.
• Use an 18mm socket to remove the tie rod end stud nut from the steering knuckle.

Step 7: Separate the tie rod end from the knuckle

• A tie rod end puller is a tool that presses the tapered stud out without damaging threads.
• Install the tie rod end puller (specialty) and tighten it until the taper “pops” loose.
• If needed, use a hammer (16 oz) to tap the side of the knuckle near the taper while the puller is tensioned.

Step 8: Remove the old outer tie rod end (count the turns)

• Spin the outer tie rod end off the inner tie rod while counting each full turn.
• Write the number down and/or use the paint marker to track turns.

Step 9: Install the new outer tie rod end

• Thread the new tie rod end on the inner tie rod the exact same number of turns you counted.
• Snug it up to your reference mark and measurement using the tape measure and paint marker.

Step 10: Seat the stud into the knuckle and tighten

• Insert the tie rod stud into the knuckle by hand.
• Install the stud nut and tighten using an 18mm socket.
• Torque to 65 Nm (48 ft-lbs) using a 1/2" drive torque wrench.
• If your nut uses a cotter pin: tighten slightly as needed to align the slots, then install a new cotter pin using needle-nose pliers.

Step 11: Tighten the jam nut

• Hold the inner tie rod with an adjustable wrench (10").
• Tighten the jam nut using a 24mm open-end wrench.
• Torque to 55 Nm (41 ft-lbs) using a torque wrench if your wrench setup allows; otherwise tighten firmly to match OEM tightness and schedule alignment promptly.
• If desired, apply threadlocker (medium strength) to the jam nut threads before final tightening.

Step 12: Reinstall the wheel

• Install the wheel and hand-thread the lug nuts.
• Lower the SRX off the jack stands using the floor jack.
• Torque to 140 Nm (103 ft-lbs) in a star pattern using a torque wrench and 21mm socket.

---

✅ After Repair

• 🧪 Start the SRX and turn the steering wheel lock-to-lock slowly to confirm nothing binds or knocks.
• 🛣️ Test drive at low speed first; steering wheel may be slightly off-center until aligned.
• 📐 Get a 4-wheel alignment as soon as possible (tie rod replacement changes toe).
• 🔍 Recheck the lug nut torque after a short drive.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor, alignment often extra)

DIY Cost: $40-$120 (parts only)

You Save: $130-$410 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
