🔧 550i - Outer Tie Rod End Replacement

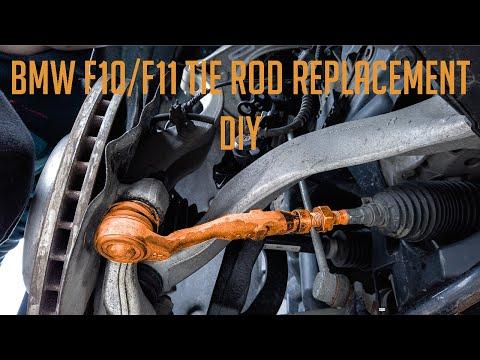

The outer tie rod end connects your steering rack (through the tie rod) to the steering knuckle, letting your front wheels turn. Replacing it restores tight steering and fixes looseness, clunks, or uneven tire wear caused by a worn joint.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours (one side)

Assumption: You’re replacing the outer tie rod end (most common).

---

⚠️ Safety & Precautions

• ⚠️ Support your 550i on jack stands before working underneath.
• ⚠️ Keep hands clear when separating the joint; it can “pop” free suddenly.
• ⚠️ Do not hammer directly on the threaded stud; you can damage threads.
• ⚠️ A wheel alignment is strongly recommended after this repair to prevent tire wear.
• ⚠️ No battery disconnect is required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• Breaker bar 1/2"
• Torque wrench 3/8" (10-100 Nm range)
• Torque wrench 1/2" (40-200 Nm range)
• 17mm socket
• 18mm socket
• 21mm socket
• Open-end wrench set (18mm-24mm)
• Tie rod end puller (specialty)
• Needle-nose pliers
• Wire brush
• Paint marker
• Penetrating oil
• Tape measure

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Outer tie rod end - Qty: 1
• Self-locking tie rod end nut - Qty: 1
• Jam nut (tie rod lock nut) - Qty: 1 (if not reusable)

---

📋 Before You Begin

• Park on level ground, straighten the steering wheel, and chock the rear wheels.
• Loosen the front wheel lug bolts slightly using a 17mm socket before lifting.
• Measure and record your current toe reference: use a tape measure to measure from the outer tie rod end to a fixed point on the inner tie rod, and mark the jam nut position with a paint marker. This helps keep alignment close.
• Spray the jam nut and the tapered stud/nut area with penetrating oil.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the front and remove the wheel

• Lift the front using a floor jack (rated 3-ton minimum) at the correct front jacking point.
• Set the car securely on jack stands (rated 3-ton minimum).
• Remove the wheel lug bolts with a 17mm socket and take the wheel off.

Step 2: Loosen the tie rod jam nut

• Clean exposed threads with a wire brush.
• Hold the inner tie rod section with an open-end wrench set (18mm-24mm) if needed, then loosen the jam nut using an open-end wrench set (18mm-24mm).
• Do not spin the jam nut far yet—just “crack it loose.”

Step 3: Remove the tie rod end nut at the steering knuckle

• If your tie rod end uses a cotter pin, remove it with needle-nose pliers. (A cotter pin is a small metal pin that locks a nut from turning.)
• Remove the nut from the tie rod stud using an 18mm socket or 21mm socket (size varies by hardware).

Step 4: Separate the tie rod end from the steering knuckle

• Install a tie rod end puller (specialty) and tighten it until the tapered stud “pops” free. (A puller presses the joint apart without damaging the boot.)
• Don’t pry on the rubber boot.

Step 5: Remove the outer tie rod end from the inner tie rod

• Count the exact number of turns as you unscrew the old outer tie rod end by hand. Write the number down.
• Spin the old tie rod end off completely.

Step 6: Install the new outer tie rod end

• Thread the new outer tie rod end on by hand the exact same number of turns you counted earlier.
• Snug the jam nut by hand against the new tie rod end.

Step 7: Reconnect the stud to the steering knuckle and torque

• Insert the tie rod stud into the steering knuckle.
• Install a new self-locking nut and tighten using an 18mm socket or 21mm socket.
• Torque to 65 Nm (48 ft-lbs) using a torque wrench 3/8" (10-100 Nm range).
• If equipped with a cotter pin style, align the castellations and install a new cotter pin using needle-nose pliers.

Step 8: Torque the jam nut

• Hold the tie rod end with an open-end wrench set (18mm-24mm) so it doesn’t twist the boot.
• Tighten the jam nut using an open-end wrench set (18mm-24mm).
• Torque to 100 Nm (74 ft-lbs) using a torque wrench 1/2" (40-200 Nm range) (use a crowfoot if needed).

Step 9: Reinstall the wheel and lower the car

• Reinstall the wheel and hand-thread the lug bolts.
• Lower the car off the jack stands (rated 3-ton minimum) using the floor jack (rated 3-ton minimum).
• Torque wheel lug bolts to 140 Nm (103 ft-lbs) using a torque wrench 1/2" (40-200 Nm range).

---

✅ After Repair

• Start the engine and slowly turn lock-to-lock to ensure nothing binds or rubs.
• Test drive at low speed first, listening for clunks and confirming the steering wheel is close to centered.
• Get a professional 4-wheel alignment as soon as possible. This protects your tires.
• Recheck the jam nut and lug bolt torque after 50-100 km if you can.

---

💰 DIY vs Shop Cost

Shop Cost: ₹4,000-₹10,000 (parts + labor + alignment, typical Panipat-area range)

DIY Cost: ₹1,500-₹6,000 (parts only, alignment extra)

You Save: ₹2,500-₹6,000 by doing it yourself!

Shop labor rates vary locally, but this repair typically bills about 1.0-1.5 hours plus alignment.

---
