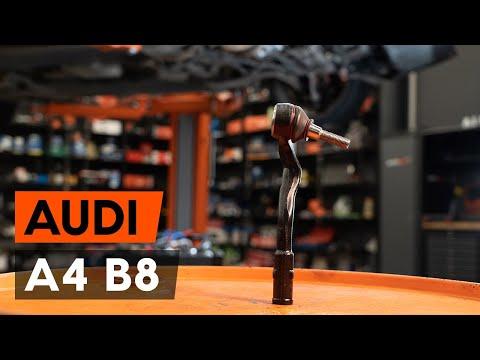

🔧 A4 - Outer Tie Rod End Replacement

The outer tie rod end connects your steering rack to the steering knuckle at the wheel. Replacing it restores tight, predictable steering and helps prevent uneven tire wear when the joint is loose or the boot is torn.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours (one side)

---

⚠️ Safety & Precautions

• ⚠️ Support the car on jack stands; never rely on a jack alone.
• ⚠️ Keep hands clear of pinch points when separating the joint.
• ⚠️ Do not hammer directly on the steering knuckle or stud threads.
• ⚠️ An alignment is strongly recommended after this repair to prevent tire wear.
• ⚠️ Battery disconnect is not required.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 17mm socket
• 3/8" ratchet
• 1/2" breaker bar
• Torque wrench (10–200 Nm range)
• 16mm socket
• 18mm socket
• 16mm combination wrench
• 18mm combination wrench
• Adjustable wrench (12")
• Tie rod end puller (specialty)
• Needle-nose pliers
• Paint marker
• Tape measure
• Penetrating oil
• Wire brush
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Outer tie rod end - Qty: 1
• New self-locking tie rod end nut - Qty: 1
• New cotter pin - Qty: 1 (only if your setup uses one)

---

📋 Before You Begin

• Park on level ground, straighten the steering wheel, and set the parking brake.
• Chock the rear wheels with wheel chocks.
• Loosen the front wheel bolts slightly using a 17mm socket and breaker bar before lifting.
• Spray penetrating oil on the tie rod end nut and the jam nut threads. Let it soak 5–10 minutes.
• Assumption: common A4 hardware sizes; verify tool fit.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and remove the wheel

• Lift the front corner with a floor jack (rated 3-ton minimum) at the approved jack point.
• Support the car with jack stands (rated 3-ton minimum).
• Remove the wheel bolts using a 17mm socket and 3/8" ratchet, then remove the wheel.

Step 2: Mark the current toe setting (so you can drive to alignment)

• Use a paint marker to mark the position of the jam nut relative to the inner tie rod threads.
• Use a tape measure to measure from a fixed point on the tie rod end to the jam nut, and write it down.
• Also count turns when you remove the tie rod end (that’s your “thread count” backup).

Step 3: Loosen the jam nut

• Clean exposed threads with a wire brush.
• Hold the inner tie rod area steady with an adjustable wrench (12") if needed.
• Loosen the jam nut using a 18mm combination wrench (some cars may use 16mm).
• Do not spin the jam nut far yet—just “crack it loose.”

Step 4: Remove the tie rod end nut at the steering knuckle

• If your tie rod uses a cotter pin, straighten and remove it with needle-nose pliers.
• Remove the tie rod end nut using the correct size 16mm socket or 18mm socket and a 3/8" ratchet.

Step 5: Separate the tie rod end from the knuckle

• Install a tie rod end puller (specialty) and tighten it until the stud pops free.
• A tie rod end puller is a tool that presses the joint apart without damaging parts.
• Tip: Keep the nut threaded on a few turns first.

Step 6: Unscrew and remove the old tie rod end

• Fully remove the nut (use the 16mm socket or 18mm socket).
• Unscrew the tie rod end from the inner tie rod by hand, counting the exact number of turns.
• Write the turn count down.

Step 7: Install the new tie rod end

• Screw the new tie rod end on the same number of turns you counted.
• Line up your paint marker marks and your measurement to the jam nut as closely as possible.
• Insert the stud into the steering knuckle.
• Install a new self-locking nut by hand first to avoid cross-threading.

Step 8: Torque the tie rod end nut and secure it

• Tighten the tie rod end nut using a torque wrench (10–200 Nm range) and the correct 16mm socket or 18mm socket.
• Torque to 45 Nm (33 ft-lbs) + 90° (common Audi/VW spec for this style joint).
• If your setup uses a cotter pin, align the castellations and install a new cotter pin using needle-nose pliers.

Step 9: Tighten the jam nut

• Hold the tie rod end with an adjustable wrench (12") if it wants to rotate.
• Tighten the jam nut using an 18mm combination wrench.
• Torque to 50 Nm (37 ft-lbs) (typical jam nut spec used on this platform).

Step 10: Reinstall the wheel and lower the car

• Reinstall the wheel bolts by hand first.
• Lower the car off the jack stands (rated 3-ton minimum) using the floor jack (rated 3-ton minimum).
• Tighten wheel bolts in a star pattern using a torque wrench (10–200 Nm range).
• Torque to 120 Nm (89 ft-lbs).

---

✅ After Repair

• Start the car and turn the wheel lock-to-lock slowly to confirm nothing binds or clunks.
• Road test at low speed first; steering wheel may be slightly off-center until aligned.
• Get a professional 4-wheel alignment as soon as possible.
• Recheck the jam nut and tie rod end nut for tightness after a short drive.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor + basic alignment varies)

DIY Cost: $40-$120 (parts only)

You Save: $130-$410 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
