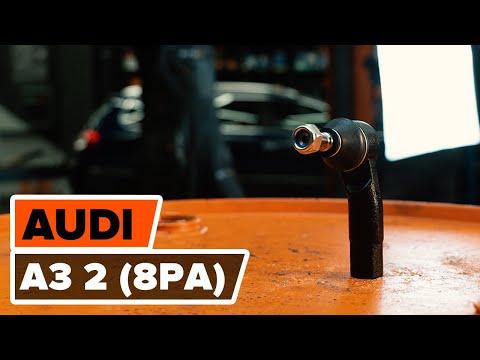

🔧 A3 - Outer Tie Rod End Replacement

The outer tie rod end connects your steering rack (via the inner tie rod) to the steering knuckle at the wheel. Replacing it restores tight steering and fixes looseness, clunks, or uneven tire wear when the joint is worn.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

Assumption: Steps are for the front outer tie rod end on your A3; torque specs can vary by hardware—use the specs below as best-practice and match your new nut type.

---

⚠️ Safety & Precautions

• ⚠️ Support the car on jack stands—never rely on a floor jack.
• ⚠️ Keep fingers clear of pinch points while separating the joint.
• ⚠️ Do not hit the steering knuckle near the wheel bearing with a steel hammer.
• ⚠️ You will need a front-end alignment after this job to protect your tires.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 17mm socket
• 1/2" drive breaker bar
• 1/2" drive torque wrench (20-200 Nm range)
• Open-end wrench set (18mm-22mm range)
• Adjustable wrench (10" minimum)
• Tie rod end puller (specialty)
• Needle-nose pliers
• Wire brush
• Penetrating oil
• Paint marker
• Measuring tape
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front outer tie rod end - Qty: 1
• New self-locking tie rod end nut - Qty: 1
• New jam nut - Qty: 1

---

📋 Before You Begin

• Park on level ground, steering wheel centered, and set the parking brake.
• Chock the rear wheels using wheel chocks.
• Spray penetrating oil on the tie rod end nut and the jam nut threads. Let it soak 5–10 minutes.
• Measure and record your starting position:
  • Use a measuring tape to measure from the center of the outer tie rod end ball stud to a fixed point on the inner tie rod, or
  • Count the number of turns when you remove the tie rod end (you’ll reinstall using the same turns).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the wheel bolts

• Use a 17mm socket and breaker bar to loosen the front wheel bolts about 1 turn while the tire is still on the ground.

Step 2: Lift and secure the front corner

• Lift the front corner with a floor jack (rated 3-ton minimum).
• Set the car onto jack stands (rated 3-ton minimum) at the proper lift point.
• Remove the wheel using a 17mm socket.

Step 3: Mark the alignment reference

• Use a paint marker to mark the tie rod end position on the threads, and/or mark the jam nut’s position.
• This helps keep toe close for the drive.

Step 4: Loosen the jam nut

• Hold the inner tie rod with an adjustable wrench (10" minimum) so it doesn’t twist.
• Use the correctly sized open-end wrench to loosen the jam nut (turn it counterclockwise).
• Back the jam nut away a few turns, but do not remove it yet.

Step 5: Remove the tie rod end nut at the steering knuckle

• Clean exposed threads with a wire brush.
• Remove the nut from the tie rod end stud using the correctly sized open-end wrench.

Step 6: Separate the tie rod end from the steering knuckle

• Install a tie rod end puller (specialty) and tighten it until the stud “pops” free.
• A puller protects the boot and knuckle.

Step 7: Remove the old tie rod end

• Spin the tie rod end off the inner tie rod by hand.
• Count the exact number of turns it takes to remove it and write it down.

Step 8: Install the new tie rod end

• Thread the new tie rod end onto the inner tie rod using the same number of turns you counted.
• Align the tie rod end so the stud drops cleanly into the steering knuckle.
• Install the new self-locking tie rod end nut by hand first to avoid cross-threading.

Step 9: Torque the tie rod end nut

• Use a torque wrench (20-200 Nm range) with the correct socket/wrench to tighten the nut.
• Torque to 40 Nm (30 ft-lbs) + 90° turn if your replacement nut is the common “torque-to-yield” style.
• If your replacement hardware specifies a single torque value, follow that spec instead (do not add 90° unless specified).

Step 10: Tighten the jam nut

• Hold the inner tie rod with an adjustable wrench (10" minimum).
• Tighten the jam nut against the tie rod end using the correct open-end wrench.
• Torque to 50 Nm (37 ft-lbs).

Step 11: Reinstall the wheel

• Install the wheel bolts by hand first.
• Lower the car off the jack stands using the floor jack.
• Use a torque wrench and 17mm socket to tighten wheel bolts in a star pattern: Torque to 120 Nm (89 ft-lbs).

---

✅ After Repair

• Start the car and turn the steering wheel lock-to-lock while parked. Listen for pops/clunks.
• Test drive slowly and confirm the steering wheel is close to centered.
• Get a professional alignment as soon as possible (same day if you can).
• Recheck the jam nut area for movement after the first short drive.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$550 (parts + labor + alignment)

DIY Cost: $40-$120 (parts only)

You Save: $210-$430 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
