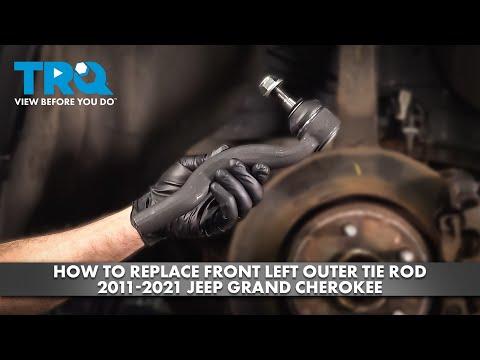

🔧 Grand Cherokee - Outer Tie Rod End Replacement

Replacing the outer tie rod end restores safe steering and prevents uneven tire wear. The key is keeping the toe setting close until you can get a professional alignment (required after this job).

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours (one side)

---

⚠️ Safety & Precautions

• ⚠️ Support your Grand Cherokee on jack stands—never rely on a floor jack.
• ⚠️ Keep hands clear of pinch points while turning the steering.
• ⚠️ Do not hammer directly on the steering knuckle; it can crack or deform.
• ⚠️ Alignment is required after tie rod work to prevent tire wear and wandering.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• 22mm socket
• 1/2" drive breaker bar
• 1/2" drive torque wrench (20–200 ft-lbs)
• Combination wrench set (metric)
• Adjustable wrench
• Tie rod end puller (specialty)
• Needle-nose pliers
• Paint marker
• Tape measure
• Penetrating oil

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front outer tie rod end - Qty: 1
• New cotter pin (if equipped) - Qty: 1

---

📋 Before You Begin

• 🅿️ Park on level ground, set the parking brake, and chock the rear wheels.
• 🛞 Slightly loosen the front wheel lug nuts using a 22mm socket and breaker bar before lifting.
• 🧭 Plan on getting a 4-wheel alignment immediately after the repair.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm which tie rod end you’re replacing

• Is it the front left or front right outer tie rod end?
• Are you replacing outer only, or the inner + outer together?

Step 2: Lift and remove the wheel

• Lift the front corner with a floor jack and support with jack stands.
• Remove the wheel using a 22mm socket.
• Wheel lug torque is model-specific; I’ll provide the exact spec after you confirm left/right.

Step 3: Mark the current adjustment (helps keep alignment close)

• Spray the jam nut and threads with penetrating oil.
• Use a paint marker to mark the position of the jam nut relative to the inner tie rod.
• Measure from a repeatable point (example: end of inner tie rod to center of tie rod stud) using a tape measure and write it down.
• This helps you reinstall close to original toe.

Step 4: Loosen the jam nut

• Hold the inner tie rod with an adjustable wrench.
• Loosen the jam nut using the appropriate metric combination wrench (size varies by build).
• Only crack it loose—do not spin it far yet.

Step 5: Remove the tie rod end nut and separate the stud

• If there is a cotter pin, remove it using needle-nose pliers.
• Remove the tie rod end nut using the correct metric socket or wrench (size varies by build).
• Install a tie rod end puller (specialty) and tighten it until the stud pops free from the steering knuckle.
• A puller avoids damaging the knuckle and boot.

Step 6: Remove the old tie rod end (count turns)

• Spin the outer tie rod end off the inner tie rod by hand.
• Count the exact number of turns it takes to remove it (example: 17.5 turns). Write it down.

Step 7: Install the new tie rod end

• Thread the new outer tie rod end on the inner tie rod the exact same number of turns you counted.
• Insert the stud into the steering knuckle.
• Install the new nut by hand first to avoid cross-threading.
• I’ll give you the exact torque specs for the stud nut and jam nut after you answer the two questions in Step 1.

Step 8: Tighten the jam nut

• Hold the tie rod end with an adjustable wrench.
• Tighten the jam nut using the correct metric combination wrench.
• Re-check your paint marks/measurement to confirm it didn’t shift.

Step 9: Reinstall wheel and lower the vehicle

• Reinstall the wheel using a 22mm socket.
• Lower the vehicle off the jack stands.
• Final-tighten lug nuts using a torque wrench in a star pattern.

---

✅ After Repair

• 🔎 Turn the steering lock-to-lock and confirm nothing binds and the boot isn’t twisted.
• 🛣️ Test drive at low speed first; confirm the steering wheel is close to centered.
• 🧰 Get a professional 4-wheel alignment ASAP.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor + alignment)

DIY Cost: $40-$120 (parts only, per side)

You Save: $210-$330 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours, plus alignment.

---
