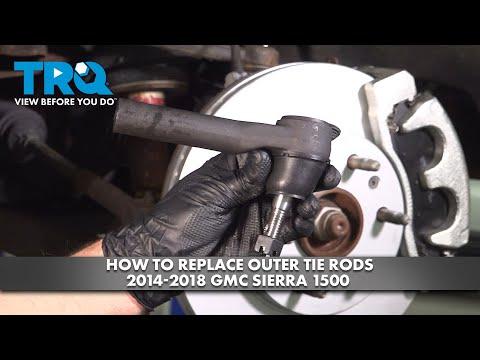

🔧 Sierra 1500 - Tie Rod End Replacement

On your Sierra 1500, the tie rod end connects the steering linkage to the front steering knuckle and controls your toe alignment. Replacing a worn tie rod end will remove looseness/clunking and help prevent uneven tire wear—but you’ll still need an alignment afterward.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours (per side)

---

⚠️ Safety & Precautions

• ⚠️ Support the truck with jack stands—never rely on a floor jack alone.
• ⚠️ Wear safety glasses; rust/metal can fall when separating the joint.
• ⚠️ Keep hands clear when using a puller or striking the knuckle.
• ⚠️ After replacement, drive carefully to an alignment shop; steering wheel may be off-center.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• Lug nut socket (22mm)
• Breaker bar (1/2")
• Torque wrench (20–200 ft-lbs)
• Combination wrench set (metric)
• Socket set (metric)
• Pliers (needle-nose)
• Diagonal cutters
• Tie rod end puller (specialty)
• Hammer (2 lb)
• Paint marker
• Tape measure
• Penetrating oil
• Wire brush
• Grease gun

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Outer tie rod end - Qty: 1
• New cotter pin - Qty: 1
• Chassis grease (if tie rod has grease fitting) - Qty: 1

---

📋 Before You Begin

• 🅿️ Park on level ground, set the parking brake, and place wheel chocks behind the rear tires.
• 🧰 Spray penetrating oil on the tie rod jam nut and the tie-rod-to-knuckle nut; let it soak 5–10 minutes.
• 📏 Plan to preserve alignment as best as possible by marking and counting turns during removal.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm which part you’re replacing

• Are we talking about the outer tie rod end (at the wheel/knuckle) or the inner tie rod (under the boot at the steering rack)?
• Also, is it the driver or passenger side?
• If you reply, I’ll tailor steps exactly.

Step 2: Loosen the wheel nuts

• Use a 22mm lug nut socket and breaker bar to loosen the front wheel lug nuts about 1 turn.

Step 3: Raise and support the front

• Lift the front with a floor jack (rated 3-ton minimum) at the proper front jacking point.
• Set the truck down onto jack stands (rated 3-ton minimum).

Step 4: Remove the wheel

• Remove the lug nuts with the 22mm lug nut socket.
• Remove the wheel and set it aside.

Step 5: Mark your starting position (helps alignment)

• Clean the threads near the jam nut with a wire brush.
• Use a paint marker to mark the relationship between the jam nut and the tie rod.
• Optional: Use a tape measure to measure from a fixed point on the tie rod end to a fixed point on the inner tie rod and write it down.
• Marks help you get close to original toe.

Step 6: Loosen the jam nut

• Hold the inner tie rod with a combination wrench (metric) if needed.
• Loosen the jam nut using a combination wrench set (metric) or socket set (metric) (size varies by brand/part).
• Do not spin it far yet—just break it loose.
• Jam nut is the “lock nut” behind the tie rod end.

Step 7: Remove the cotter pin (if equipped)

• Straighten and remove the cotter pin using needle-nose pliers.
• If it’s too rusty, cut it using diagonal cutters.
• Cotter pin is a small safety pin through the nut.

Step 8: Remove the tie-rod-to-knuckle nut

• Remove the nut using a socket set (metric) and/or combination wrench set (metric) (size varies).
• If the stud spins, apply upward pressure to the tie rod end while loosening, or use a wrench on the stud’s flats (if present).

Step 9: Separate the tie rod end from the steering knuckle

• Install a tie rod end puller (specialty) and tighten it until the joint “pops” free.
• If needed, tap the side of the steering knuckle with a hammer (2 lb) to help release it (do not hit the threaded stud).

Step 10: Count turns and remove the old tie rod end

• Spin the outer tie rod end off by hand, counting the exact number of turns.
• Write the number down.

Step 11: Install the new tie rod end

• Thread the new tie rod end on the same number of turns you counted.
• Line up your paint marker marks as closely as possible.

Step 12: Attach the stud to the steering knuckle

• Insert the stud into the steering knuckle.
• Install the new nut using a socket set (metric).
• Torque to 50 Nm (37 ft-lbs) then continue tightening to align the cotter pin hole.
• Install a new cotter pin using needle-nose pliers and bend the ends over.

Step 13: Tighten the jam nut

• Hold the tie rod end/inner rod with a combination wrench set (metric).
• Tighten the jam nut with a combination wrench set (metric).
• Torque to 75 Nm (55 ft-lbs).

Step 14: Grease the joint (if applicable)

• If your new tie rod end has a grease fitting (zerk), add grease using a grease gun.
• Stop when the boot just begins to swell; do not overfill.
• Zerk is the small grease nipple.

Step 15: Reinstall the wheel

• Install the wheel and hand-thread lug nuts.
• Lower the truck off the jack stands (rated 3-ton minimum) using the floor jack (rated 3-ton minimum).
• Torque lug nuts to 190 Nm (140 ft-lbs) in a star pattern using a torque wrench.

---

✅ After Repair

• 🧪 Start the truck and turn the steering wheel lock-to-lock to confirm no binding/noises.
• 🛣️ Test drive at low speed first; verify the steering wheel is close to centered.
• 📏 Get a professional front-end alignment as soon as possible to prevent tire wear.
• 🔎 Recheck the jam nut and look for a torn boot after the first drive.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$400 (parts + labor + basic alignment varies)

DIY Cost: $35-$120 (parts only)

You Save: $145-$280 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours per side.

---
