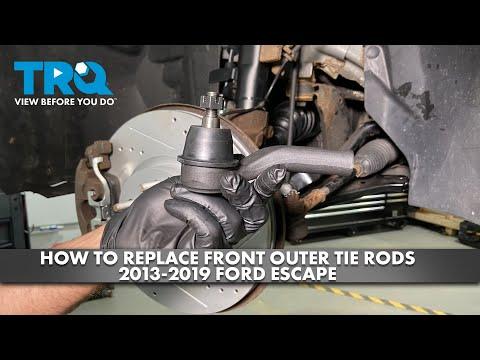

🔧 Escape - Outer Tie Rod End Replacement

The outer tie rod end connects your steering rack to the wheel knuckle, and it’s a common wear item that can cause loose steering, clunks, or uneven tire wear. The key is to keep the new part set to the same length as the old one so the toe alignment stays close enough to drive to an alignment shop.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours (one side)

---

⚠️ Safety & Precautions

• ⚠️ Support your Escape on jack stands; never rely on a jack.
• ⚠️ Keep fingers clear of pinch points while separating the joint.
• ⚠️ If you use a pickle fork, it may destroy the old boot (fine if replacing).
• ⚠️ After replacement, get a professional alignment ASAP to prevent tire wear.
• ⚠️ Battery disconnect is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• 19mm lug nut socket
• Breaker bar (1/2")
• Metric socket set (8mm–24mm)
• Metric combination wrench set (8mm–24mm)
• Torque wrench (10–150 ft-lb)
• Needle-nose pliers
• Tie rod end puller (specialty)
• Pickle fork separator (specialty)
• Hammer (16 oz)
• Paint marker
• Tape measure
• Penetrating oil
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Outer tie rod end - Qty: 1
• Cotter pin set - Qty: 1
• Anti-seize compound - Qty: 1

---

📋 Before You Begin

• Park on level ground, steering wheel centered, and place wheel chocks behind the rear tires.
• Loosen the front wheel lug nuts 1/2 turn using a 19mm lug nut socket and breaker bar before lifting.
• Quick questions so I can make the steps perfectly accurate for your Escape (reply with both):
• 👉 Are you replacing the front left or front right outer tie rod end?
• 👉 Does your tie rod end use a cotter pin (pin through a castle nut) at the knuckle, or a locknut only?

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and remove the wheel

• Lift the front corner with a floor jack (rated 3-ton minimum) at the proper jacking point.
• Set the vehicle onto jack stands (rated 3-ton minimum).
• Remove the lug nuts using a 19mm lug nut socket and take the wheel off.

Step 2: Mark the current adjustment

• Spray the jam nut and threads with penetrating oil.
• Use a paint marker to mark the position of the jam nut on the tie rod threads.
• Measure the distance from a fixed point (example: end of inner tie rod threads) to the tie rod end using a tape measure, and write it down. This helps keep alignment close.

Step 3: Loosen the jam nut

• Hold the inner tie rod section with a metric combination wrench set (8mm–24mm).
• Loosen (do not remove) the jam nut using a metric combination wrench set (8mm–24mm).

Step 4: Remove the tie rod end from the steering knuckle

• If equipped: remove the cotter pin using needle-nose pliers.
• Remove the tie rod end nut using a metric socket set (8mm–24mm).
• Separate the stud from the knuckle using a tie rod end puller (specialty).
• If it’s stuck: use a pickle fork separator (specialty) and a hammer (16 oz). Expect the old boot to tear.

Step 5: Remove the old tie rod end

• Spin the tie rod end off the threads by hand, counting the turns (example: 17 turns). Write the number down.
• Compare the old and new parts side-by-side to confirm matching length and taper.

Step 6: Install the new tie rod end

• Apply a light film of anti-seize compound to the threads.
• Thread the new tie rod end on by the exact same number of turns you counted during removal.
• Insert the stud into the knuckle.
• Install the new nut using a metric socket set (8mm–24mm).
• Tighten fasteners with a torque wrench (10–150 ft-lb) to the correct Ford specification for your exact nut style (castle-nut/cotter-pin vs locknut). Once you answer the two questions above, I’ll provide the exact torque values for your Escape.
• If equipped with a castle nut: install a new cotter pin using needle-nose pliers (never reuse the old one).

Step 7: Tighten the jam nut

• Hold the tie rod end with a metric combination wrench set (8mm–24mm).
• Tighten the jam nut using a metric combination wrench set (8mm–24mm).
• Final-tighten with a torque wrench (10–150 ft-lb) to Ford specification (I’ll give the exact spec after your reply).

Step 8: Reinstall the wheel

• Reinstall the wheel and hand-tighten lug nuts.
• Lower the vehicle off the jack stands (rated 3-ton minimum) using the floor jack (rated 3-ton minimum).
• Tighten lug nuts in a star pattern using a torque wrench (10–150 ft-lb) to Torque to 135 Nm (100 ft-lb).

---

✅ After Repair

• Turn the steering wheel lock-to-lock while parked and confirm nothing binds or contacts.
• Road test at low speed and listen for clunks; steering should feel tight and centered.
• Schedule a front-end alignment as soon as possible (recommended same day).
• Recheck the jam nut area for movement after the road test.

---

💰 DIY vs Shop Cost

Shop Cost: ₹6,000-₹14,000 (parts + labor, plus alignment)

DIY Cost: ₹1,500-₹5,500 (parts only, plus alignment)

You Save: ₹3,000-₹8,500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
