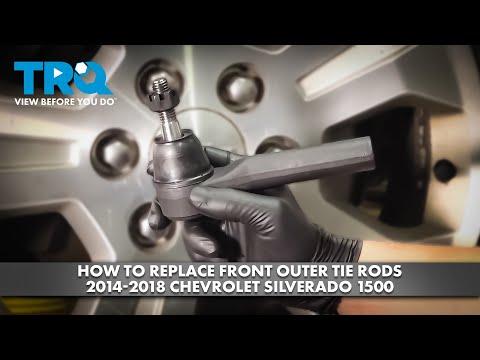

🔧 Silverado 1500 - Outer Tie Rod End Replacement

The outer tie rod end connects your steering rack to the steering knuckle, and it’s a common wear item that can cause loose steering, tire wear, or clunking. The key is removing the tapered stud safely, then reinstalling the new end at the same length to keep alignment close enough to drive to an alignment shop.

Difficulty Level: Intermediate | Estimated Time: 1-2 hours

---

⚠️ Safety & Precautions

• ⚠️ Support the truck with jack stands; never rely on a floor jack.
• ⚠️ Wear eye protection when using a hammer/tie-rod puller.
• ⚠️ Do not turn the steering wheel with the tie rod disconnected; it can stress steering components.
• ⚠️ You should get a professional alignment after this repair to prevent tire wear.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Lug nut socket 22mm
• Breaker bar 1/2"
• Torque wrench 1/2"
• Torque wrench 3/8"
• Combination wrench set (metric)
• Open-end wrench 21mm
• Open-end wrench 24mm
• Pliers
• Diagonal cutters
• Hammer (2 lb)
• Tie rod end puller (specialty)
• Tape measure
• Paint marker
• Penetrating oil
• Grease gun
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Outer tie rod end - Qty: 1
• New cotter pin - Qty: 1
• Chassis grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Loosen the front wheel lug nuts slightly using a 22mm lug nut socket and breaker bar before lifting.
• Spray penetrating oil on the tie-rod jam nut and the tie-rod stud nut.
• Tie-rod puller separates the tapered joint safely. (A puller is a tool that presses the joint apart without damaging the threads.)

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and remove the wheel

• Lift the front corner with a floor jack (rated 3-ton minimum).
• Place a jack stand (rated 3-ton minimum) under the frame and lower onto it.
• Remove the wheel using a 22mm lug nut socket.

Step 2: Mark the current adjustment

• Use a paint marker to mark the position of the jam nut relative to the inner tie rod threads.
• Use a tape measure to measure from the center of the outer tie rod stud to a fixed point on the inner tie rod, and write it down.
• This helps keep alignment close.

Step 3: Loosen the jam nut

• Hold the inner tie rod with an open-end wrench 24mm (size may vary slightly by brand).
• Loosen the jam nut using an open-end wrench 21mm by turning it counterclockwise.
• Do not move it far yet—just “break it loose.”

Step 4: Remove the cotter pin and stud nut

• Straighten and remove the cotter pin using pliers or diagonal cutters.
• Remove the tie rod end stud nut using a combination wrench.

Step 5: Separate the tie rod end from the steering knuckle

• Install the tie rod end puller (specialty) over the joint and tighten it until the taper “pops” free.
• If needed, tap the knuckle boss lightly with a hammer (2 lb) while the puller is tensioned.
• Don’t hammer the stud threads.

Step 6: Remove the outer tie rod end

• Spin the outer tie rod end off the inner tie rod, counting the exact number of turns.
• Write the turn count down (example: 17.5 turns).

Step 7: Install the new outer tie rod end

• Thread the new outer tie rod end onto the inner tie rod using the same number of turns you counted.
• Line the stud up with the steering knuckle and insert the stud into the knuckle.
• Install the new stud nut and tighten with a torque wrench 3/8": Torque to 50 Nm (37 ft-lbs), then continue tightening only as needed to align the cotter pin hole.
• Install a new cotter pin and bend the ends using pliers.

Step 8: Tighten the jam nut

• Hold the inner tie rod with an open-end wrench 24mm.
• Tighten the jam nut with a torque wrench 1/2": Torque to 75 Nm (55 ft-lbs).

Step 9: Grease the new tie rod end (if it has a fitting)

• If your new tie rod end includes a grease fitting, add grease using a grease gun until the boot just begins to swell.
• Stop before the boot balloons or grease pushes the boot off.

Step 10: Reinstall the wheel and lower the truck

• Reinstall the wheel using a 22mm lug nut socket.
• Lower the truck off the jack stand using the floor jack (rated 3-ton minimum).
• Tighten lug nuts in a star pattern with a torque wrench 1/2": Torque to 190 Nm (140 ft-lbs).

---

✅ After Repair

• Start the engine and turn the steering wheel lock-to-lock while stopped; listen for clunks and confirm smooth movement.
• Road-test at low speed first; make sure the steering wheel is close to centered and it doesn’t pull hard.
• Get a front-end alignment as soon as possible (recommended same day).
• Recheck the jam nut and look for a twisted/damaged boot after the test drive.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$350 (parts + labor + alignment often extra)

DIY Cost: $35-$120 (parts only)

You Save: $145-$230 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
