🔧 Tie Rod End - Replacement

Replacing the outer tie rod end restores steering feel and removes looseness at the front wheels. On your Rogue, this repair should be followed by a professional wheel alignment so the tires do not wear unevenly.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

---

⚠️ Safety & Precautions

• Work on a level surface and keep the transmission in Park with the parking brake set.
• Chock the rear wheels before lifting the front of the vehicle.
• Support the vehicle with jack stands; never rely on the floor jack alone.
• Use caution around the steering knuckle and brake components.
• An alignment is required after this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• 17mm lug wrench or socket
• 19mm socket
• Ratchet
• Breaker bar
• Torque wrench
• Needle-nose pliers
• Tie rod end puller (specialty)
• Pry bar
• Paint marker
• Penetrating oil

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Outer tie rod end - Qty: 1
• Cotter pin - Qty: 1
• Jam nut - Qty: 1

---

📋 Before You Begin

• Park on level ground and center the steering wheel.
• Set the parking brake and place wheel chocks behind the rear tires.
• Spray penetrating oil on the tie rod end nut and jam nut if they are rusty.
• Use a paint marker to mark the tie rod threads before removal. This helps keep the alignment close enough to drive to the shop.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the wheel nuts

• Use a 17mm lug wrench or socket to loosen the front wheel nuts slightly while the tire is still on the ground.
• Do not remove them yet.

Step 2: Raise and support the vehicle

• Use a floor jack to lift the front of the vehicle at the proper lift point.
• Place jack stands under the front support points and lower the vehicle onto them.
• Remove the wheel.

Step 3: Mark the current tie rod position

• Use a paint marker to mark the exposed threads and the jam nut position.
• Keep this as a rough starting point.

Step 4: Remove the cotter pin and castle nut

• Use needle-nose pliers to straighten and remove the cotter pin from the tie rod end stud.
• Use a 19mm socket and ratchet to remove the castle nut from the tie rod end.
• If the stud spins, use a breaker bar while pulling the stud upward into the knuckle.

Step 5: Separate the tie rod end from the steering knuckle

• Use a tie rod end puller (specialty) to break the tapered stud loose from the steering knuckle.
• Do not hammer on the steering knuckle if you can avoid it.
• A puller reduces damage risk.

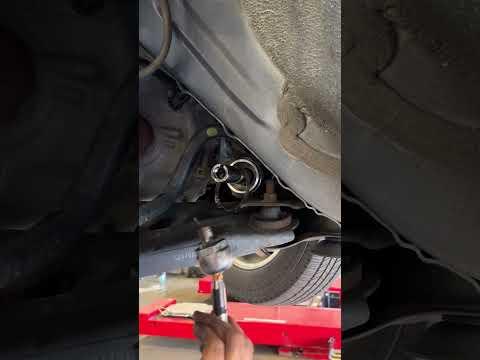

Step 6: Remove the outer tie rod end

• Use a 19mm socket and ratchet to loosen the jam nut on the inner tie rod.
• Count the exact number of turns needed to unscrew the outer tie rod end from the inner tie rod.
• Remove the old tie rod end.

Step 7: Install the new tie rod end

• Thread the new tie rod end onto the inner tie rod the same number of turns you counted during removal.
• Install the stud into the steering knuckle.
• Install the new castle nut by hand first.

Step 8: Tighten and secure the joint

• Use a 19mm socket and torque wrench to tighten the tie rod end castle nut.
• Torque to 34 Nm (25 ft-lbs), then continue tightening only enough to align the cotter pin hole if needed.
• Install a new cotter pin with needle-nose pliers and bend the ends over.
• Use a 19mm socket and torque wrench to tighten the jam nut.
• Torque to 74 Nm (55 ft-lbs).

Step 9: Reinstall the wheel

• Put the wheel back on and start the lug nuts by hand.
• Lower the vehicle with the floor jack.
• Use a 17mm lug wrench or socket and torque wrench to tighten the wheel nuts in a star pattern.
• Torque to 108 Nm (80 ft-lbs).

---

✅ After Repair

• Start the vehicle and turn the steering wheel lock to lock to check for smooth movement.
• Check that all fasteners are tight and the cotter pin is installed correctly.
• Drive only short distances before the alignment shop visit.
• Schedule a front-end alignment as soon as possible.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$350 (parts + labor)

DIY Cost: $35-$90 (parts only)

You Save: $145-$260 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1-2 hours.

---
