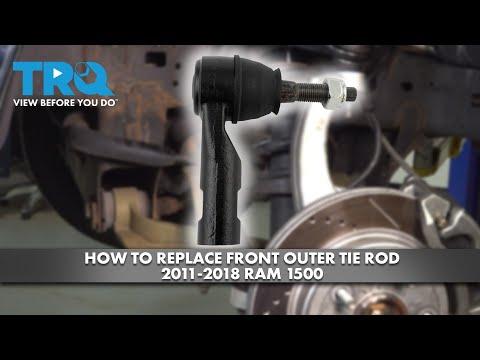

🔧 1500 - Tie Rod End Replacement

The tie rod end connects your steering rack to the front wheel knuckle. Replacing a worn tie rod end restores tight steering and helps prevent uneven tire wear.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.5 hours (per side)

---

⚠️ Safety & Precautions

• 🛑 Support the truck with jack stands; never rely on a floor jack.
• Keep hands clear when separating the joint; it can “pop” loose suddenly.
• Wear safety glasses; rust and debris fall when you work under the wheel well.
• If you remove an inner tie rod, protect the steering rack boot and don’t twist the rack.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Lug wrench or 22mm socket
• Ratchet
• Torque wrench (30-250 ft-lbs range)
• Needle-nose pliers
• Diagonal cutters
• 18mm socket
• 21mm socket
• Adjustable wrench (12")
• Paint marker
• Tape measure
• Penetrating oil
• Tie rod end puller (specialty)
• Pickle fork separator (specialty)
• Inner tie rod removal tool kit (specialty)
• Boot clamp pliers (specialty)
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Outer tie rod end - Qty: 1
• Cotter pin kit - Qty: 1
• Adjusting sleeve clamp bolt/nut kit - Qty: 1 (recommended if rusty)
• Inner tie rod end - Qty: 1 (only if replacing inner)
• Steering rack boot clamp kit - Qty: 1 (only if replacing inner)
• Power steering fluid (ATF+4) - Qty: 1 quart (only if needed)

---

📋 Before You Begin

• Park on level ground, steering wheel straight, and set the parking brake.
• Chock the rear wheels with wheel chocks.
• Spray penetrating oil on the outer tie rod castle nut, the jam nut, and the adjusting sleeve clamps.
• Plan on getting a professional alignment after the repair (even if you “count turns”).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and remove the front wheel

• Loosen the lug nuts slightly using a lug wrench or 22mm socket.
• Lift the front corner using a floor jack and support the frame with jack stands.
• Remove the wheel using a lug wrench or 22mm socket.

Step 2: Mark your starting point (helps keep toe close)

• Use a paint marker to mark the position of the jam nut on the tie rod threads.
• Use a tape measure to note a reference length (for example, from the tie rod end to a fixed point on the adjusting sleeve).
• This helps the truck drive to alignment.

Step 3: Remove the cotter pin and loosen the castle nut

• Straighten and remove the cotter pin using needle-nose pliers and diagonal cutters.
• Loosen and remove the castle nut at the steering knuckle using an 21mm socket (size may vary by brand of part).

Step 4: Separate the outer tie rod from the steering knuckle

• Install a tie rod end puller (specialty) and tighten it with a ratchet until the tapered stud pops free.
• If needed, use a pickle fork separator (specialty) and strike it in with an adjustable wrench (12") used as a hammer substitute only if you don’t have a hammer.
• A puller is cleaner and protects parts.

Step 5: Break the jam nut loose

• Hold the tie rod/adjusting sleeve with an adjustable wrench (12").
• Loosen the jam nut using an 18mm socket or adjustable wrench (12") (varies by hardware).

Step 6: Remove the outer tie rod end (count turns)

• Spin the outer tie rod end off by hand while counting full turns (example: 17.5 turns).
• Write the number down so the new one can go on the same amount.

Step 7: Install the new outer tie rod end

• Thread the new outer tie rod end on the same number of turns you counted.
• Insert the stud into the steering knuckle.
• Install the new castle nut and tighten with a torque wrench and 21mm socket: Torque to 88 Nm (65 ft-lbs), then continue tightening only as needed to align the cotter pin hole.
• Install a new cotter pin using needle-nose pliers.

Step 8: Tighten the jam nut and sleeve clamps

• Hold the tie rod end with an adjustable wrench (12").
• Tighten the jam nut using a torque wrench and appropriate socket/wrench: Torque to 75 Nm (55 ft-lbs).
• If your setup has adjusting sleeve clamp bolts, tighten them using a torque wrench: Torque to 49 Nm (36 ft-lbs).

Step 9: Reinstall the wheel

• Install the wheel and hand-start the lug nuts.
• Lower the truck off the jack stands using the floor jack.
• Tighten lug nuts in a star pattern with a torque wrench and 22mm socket: Torque to 176 Nm (130 ft-lbs).

Optional: If you’re replacing the INNER tie rod end (extra steps)

• An inner tie rod end is the joint on the steering rack side (under the rubber boot). The inner tie rod removal tool kit (specialty) is a long tube/socket set that grabs the inner joint.
• After removing the outer tie rod end, remove rack boot clamps using boot clamp pliers (specialty) and slide the boot back.
• Remove the inner tie rod using the inner tie rod removal tool kit (specialty) and a ratchet: Torque to 95 Nm (70 ft-lbs) on install.
• Reinstall the rack boot with a steering rack boot clamp kit using boot clamp pliers (specialty).

---

✅ After Repair

• Turn the steering wheel lock-to-lock while parked and listen for clicking or binding.
• Test drive at low speed first. Verify the steering wheel is close to centered.
• Get a professional front-end alignment as soon as possible to prevent tire wear.
• Recheck the castle nut/cotter pin and lug nut torque after 25-50 miles using a torque wrench.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (outer, one side) | $350-$650 (inner, one side)

DIY Cost: $40-$120 (outer) | $60-$180 (inner)

You Save: $210-$530 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-2.5 hours.

---
