🔧 Corolla - Outer Tie Rod End Replacement

The outer tie rod end connects your steering rack to the wheel knuckle. Replacing it restores safe steering and helps prevent uneven tire wear, but you’ll need a wheel alignment afterward.

Difficulty Level: Intermediate | Estimated Time: 1.0–2.0 hours (one side)

---

⚠️ Safety & Precautions

• ⚠️ Support your Corolla on jack stands; never rely on a jack.
• ⚠️ Chock the rear wheels and keep the parking brake on.
• ⚠️ Steering parts are safety-critical; get an alignment after.
• ⚠️ Replace the cotter pin with a new one; don’t reuse it.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 19mm socket
• Breaker bar (1/2-inch drive)
• Torque wrench (10–200 Nm range)
• Ratchet (1/2-inch drive)
• Needle-nose pliers
• Side cutters
• Adjustable wrench (10-inch)
• Open-end wrench set (metric)
• Tie rod end puller (specialty)
• Paint marker
• Tape measure
• Penetrating oil
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Outer tie rod end - Qty: 1
• Cotter pin (tie rod end) - Qty: 1

---

📋 Before You Begin

• 🧭 Confirm you’re replacing the outer tie rod end (at the wheel), not the inner (at the rack).
• 🧭 Which side are you doing: left or right?
• Park on level ground, turn the steering wheel so the front wheels point straight, and remove the key.
• Loosen the front wheel lug nuts slightly before lifting the car.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the wheel and safely lift the car

• Use a 19mm socket and breaker bar to loosen the lug nuts about 1/2 turn.
• Use a floor jack to lift the front at the correct jacking point, then set the car on jack stands.
• Remove the wheel using the 19mm socket and ratchet.

Step 2: Mark and measure so your toe stays close

• Spray the jam nut and threads with penetrating oil.
• Use a paint marker to mark the tie rod threads and the jam nut position.
• Use a tape measure to measure from a fixed point on the tie rod end to the jam nut and write it down. This helps keep alignment close.

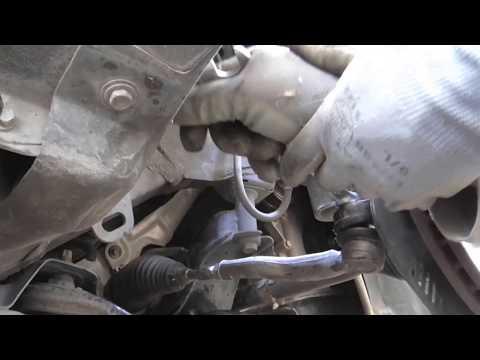

Step 3: Remove the cotter pin and loosen the castle nut

• Use needle-nose pliers to straighten the cotter pin legs.
• Use side cutters (if needed) and needle-nose pliers to pull the cotter pin out.
• Use an open-end wrench set (metric) or adjustable wrench (10-inch) to loosen (but not fully remove yet) the tie rod end castle nut.

Step 4: Separate the tie rod end from the steering knuckle

• Install the tie rod end puller (specialty) over the joint and tighten it until the taper “pops” free.
• A pop sound is normal.
• Once separated, remove the castle nut completely using the open-end wrench set (metric) or adjustable wrench (10-inch).

Step 5: Loosen the jam nut and remove the old tie rod end

• Hold the inner tie rod (the bar behind the outer end) with an open-end wrench set (metric) if needed so it doesn’t twist.
• Use an open-end wrench set (metric) or adjustable wrench (10-inch) to loosen the jam nut (the nut behind the tie rod end).
• Unscrew the outer tie rod end by hand, counting the turns (example: 17 turns). Write the number down.

Step 6: Install the new tie rod end

• Screw the new outer tie rod end on the same number of turns you counted (or to your measurement/marks) to keep toe close.
• Insert the tie rod stud into the steering knuckle.
• Thread the new castle nut on by hand first (prevents cross-threading).
• Use a torque wrench to tighten the castle nut: Torque to 49 Nm (36 ft-lbs).
• If the cotter pin hole doesn’t line up, tighten the nut slightly more until it aligns (do not loosen to align).
• Install a new cotter pin using needle-nose pliers and bend the legs over securely.

Step 7: Tighten the jam nut

• Hold the tie rod end with an open-end wrench set (metric) or adjustable wrench (10-inch).
• Tighten the jam nut with an open-end wrench set (metric) or adjustable wrench (10-inch): Torque to 74 Nm (55 ft-lbs).

Step 8: Reinstall the wheel

• Reinstall the wheel and hand-tighten lug nuts.
• Lower the car off the jack stands using the floor jack.
• Use a torque wrench to tighten lug nuts in a star pattern: Torque to 103 Nm (76 ft-lbs).

---

✅ After Repair

• 🔎 Start the engine and turn the steering wheel lock-to-lock to confirm nothing binds or clunks.
• 🔎 Road test at low speed first; steering wheel may be slightly off-center.
• 🧰 Get a professional front wheel alignment as soon as possible (tie rod changes affect toe).
• 🔎 Recheck the jam nut and cotter pin after a short drive.

---

💰 DIY vs Shop Cost

Shop Cost: ₹2,500–₹6,000 (parts + labor, per side)

DIY Cost: ₹800–₹2,500 (parts only, per side)

You Save: ₹1,700–₹3,500 by doing it yourself!

Shop labor rates vary but typically run ₹500–₹1,200/hour. This repair takes a shop approximately 1.0–1.5 hours.

---
