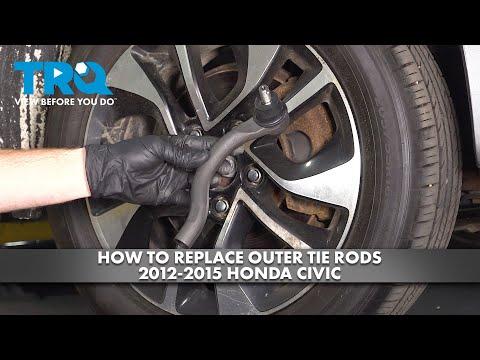

🔧 Civic - Outer Tie Rod End Replacement

The outer tie rod end connects your steering rack to the steering knuckle, and it’s a common wear item that can cause clunking, loose steering, or uneven tire wear. Replacing it is straightforward, but you must keep the toe setting close and get an alignment afterward.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

---

⚠️ Safety & Precautions

• 🧯 Support the Civic with jack stands; never rely on a floor jack alone.
• 🧤 Keep hands clear of pinch points while separating the joint.
• 🔥 Work on a cool suspension/brake area to avoid burns.
• 🔩 Always install a new cotter pin; do not reuse the old one.
• 🧭 Plan on a professional alignment after replacement to prevent tire wear.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 19mm socket
• 1/2" drive breaker bar
• 1/2" drive torque wrench (20-150 ft-lbs range)
• 17mm socket
• 19mm wrench
• Needle-nose pliers
• Diagonal cutters
• Paint marker
• Wire brush
• Penetrating oil
• Tie rod end puller (specialty)
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Outer tie rod end - Qty: 1
• Cotter pin (tie rod end) - Qty: 1

---

📋 Before You Begin

• Park on level ground, put the transmission in 1st gear, and set the parking brake.
• Place wheel chocks behind the rear wheels.
• Turn the steering wheel so the front wheels point straight ahead.
• Spray penetrating oil on the tie-rod jam nut threads and the tie-rod end castle nut. Let it soak 5–10 minutes.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the wheel lug nuts

• Use a 19mm socket and breaker bar to crack the lug nuts loose about 1/4 turn (do not remove yet).

Step 2: Raise and support the Civic

• Lift the front using a floor jack at the proper front jack point.
• Set the car down onto jack stands securely before working.
• Remove the wheel using the 19mm socket.

Step 3: Mark and “count turns” to preserve alignment

• Use a paint marker to mark the position of the jam nut on the inner tie rod threads.
• Use a wire brush to clean exposed threads so the jam nut turns smoothly.
• This helps keep toe close until alignment.

Step 4: Loosen the jam nut

• Hold the tie rod end body with a 19mm wrench (as needed) and loosen the jam nut with a 19mm wrench.
• Only break it loose (do not spin it far yet).

Step 5: Remove the cotter pin and castle nut

• Straighten and remove the cotter pin using needle-nose pliers and diagonal cutters.
• Remove the tie rod end castle nut using a 17mm socket.

Step 6: Separate the tie rod end from the steering knuckle

• Install a tie rod end puller (specialty) and tighten it until the stud pops free. A puller is a clamp tool that presses the stud out without hammering.
• If it’s stuck, apply more penetrating oil and try again (avoid striking the knuckle directly).

Step 7: Remove the old tie rod end (count exact turns)

• Spin the tie rod end off by hand while counting the turns (example: 17.5 turns). Write it down.
• Stop when it comes off completely.

Step 8: Install the new tie rod end

• Thread the new tie rod end on the inner tie rod the exact same number of turns you counted.
• Insert the stud into the steering knuckle by hand.

Step 9: Torque the tie rod end nut and install a new cotter pin

• Tighten the castle nut using a 17mm socket and torque wrench: Torque to 49 Nm (36 ft-lbs).
• If the cotter pin hole doesn’t line up, tighten the nut slightly more until it aligns (do not loosen to align).
• Install a new cotter pin using needle-nose pliers, then bend the ends over securely.

Step 10: Tighten the jam nut

• Hold the tie rod end and tighten the jam nut using a 19mm wrench and torque wrench: Torque to 44 Nm (32 ft-lbs).

Step 11: Reinstall the wheel

• Install the wheel and snug lug nuts with a 19mm socket.
• Lower the car off the jack stands using the floor jack.
• Final-tighten lug nuts in a star pattern with a torque wrench: Torque to 108 Nm (80 ft-lbs).

---

✅ After Repair

• Turn the steering wheel lock-to-lock while parked and confirm nothing binds or rubs.
• Test drive at low speed first. Verify the steering wheel is close to centered and there are no clunks.
• Get a front-wheel alignment as soon as possible (same day if you can).
• If the steering wheel is noticeably off-center, avoid long drives until aligned.

---

💰 DIY vs Shop Cost

Shop Cost: $220-$450 (parts + labor, alignment often extra)

DIY Cost: $25-$90 (parts only)

You Save: $130-$360 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
