🔧 Sierra 1500 - Tie Rod End Replacement

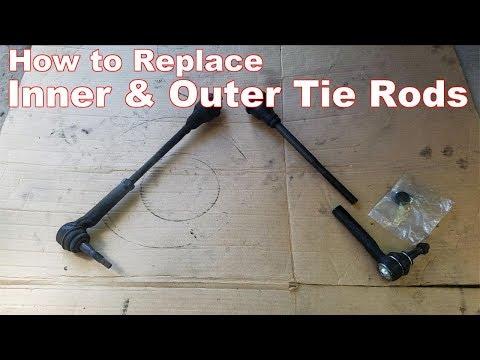

The tie rod end connects your steering rack to the front wheel knuckle. Replacing a worn tie rod end fixes loose steering and helps prevent uneven tire wear, but you’ll still need an alignment afterward.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (one side)

---

⚠️ Safety & Precautions

• 🛑 Support your Sierra 1500 with jack stands before working underneath.
• 🛑 Keep hands clear when separating the tie rod end from the knuckle (it can “pop” loose suddenly).
• 🛑 Do not hammer directly on the steering knuckle or stud threads.
• 🛑 After replacement, get a front-end alignment—counting turns gets you close, not perfect.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Breaker bar 1/2"
• Torque wrench 1/2" drive (50-200 ft-lbs)
• Metric socket set 10-24mm (1/2" drive)
• Metric wrench set 10-27mm
• Needle-nose pliers
• Side cutters
• Hammer (16-24 oz)
• Tie rod end puller (specialty)
• Penetrating oil
• Paint marker
• Tape measure
• Grease gun

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Outer tie rod end - Qty: 1
• Cotter pin (tie rod end stud) - Qty: 1
• Chassis grease (NLGI #2) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Loosen the front wheel lug nuts slightly before lifting.
• Spray penetrating oil on the tie rod end jam nut and the stud nut at the steering knuckle.
• Plan an alignment appointment after the repair.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and remove the wheel

• Use a breaker bar 1/2" and metric socket set 10-24mm (lug nut size is within this set) to loosen lug nuts.
• Lift with the floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Remove the lug nuts and wheel.

Step 2: Mark your starting point (to keep toe close)

• Use a paint marker to mark the position of the jam nut (the lock nut that clamps the tie rod end’s threads) against the outer tie rod end.
• Use a tape measure to record the distance from a fixed point on the tie rod end to the jam nut, or count turns during removal (next step).

Step 3: Remove the cotter pin and loosen the stud nut

• Straighten and remove the cotter pin using needle-nose pliers and side cutters.
• Use a metric socket set 10-24mm (or metric wrench set 10-27mm) to remove the tie rod end stud nut from the steering knuckle.
• If the nut is a “nylock” style (no cotter pin), remove it normally and skip the cotter-pin steps.

Step 4: Separate the tie rod end from the steering knuckle

• Install the tie rod end puller (specialty) on the joint and tighten until the stud pops free.
• If it’s stubborn, apply more penetrating oil and re-try with the puller.
• Puller beats hammering—protects the knuckle.

Step 5: Loosen the jam nut and remove the old tie rod end

• Hold the inner tie rod with a metric wrench set 10-27mm and loosen the jam nut with another metric wrench set 10-27mm.
• Unthread the outer tie rod end while counting exact turns until it comes off.
• Write the number of turns down—this helps keep your alignment close for the drive to the shop.

Step 6: Install the new outer tie rod end

• Thread the new tie rod end on using the exact same number of turns you counted.
• Line the stud up with the steering knuckle and install the new stud nut using a metric socket set 10-24mm.
• Torque to 50 Nm (37 ft-lbs), then tighten further only as needed to align the cotter-pin hole.
• Install a new cotter pin using needle-nose pliers, then bend the ends over securely.

Step 7: Tighten the jam nut

• Hold the tie rod end/inner rod with a metric wrench set 10-27mm and tighten the jam nut with another metric wrench set 10-27mm.
• Torque to 75 Nm (55 ft-lbs).

Step 8: Grease the joint (if equipped with a grease fitting)

• If your new tie rod end has a zerk fitting, attach the grease gun and add grease slowly.
• Stop when you see the boot just begin to swell—don’t blow the boot off.

Step 9: Reinstall the wheel and lower the truck

• Reinstall the wheel and hand-tighten lug nuts.
• Lower off the jack stands (rated 3-ton minimum) using the floor jack (rated 3-ton minimum).
• Use the torque wrench 1/2" drive (50-200 ft-lbs) to tighten lug nuts in a star pattern: Torque to 190 Nm (140 ft-lbs).

---

✅ After Repair

• Start your Sierra 1500 and turn the steering wheel lock-to-lock while parked to confirm smooth movement and no binding.
• Test drive at low speed first. If the steering wheel is off-center or it pulls, limit driving and get aligned.
• Schedule a front-end alignment as soon as possible to prevent tire wear.
• Recheck the jam nut area for movement after the first short drive.

---

💰 DIY vs Shop Cost

Shop Cost: $200-$450 (parts + labor + basic alignment varies)

DIY Cost: $35-$120 (parts only)

You Save: $165-$330 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
